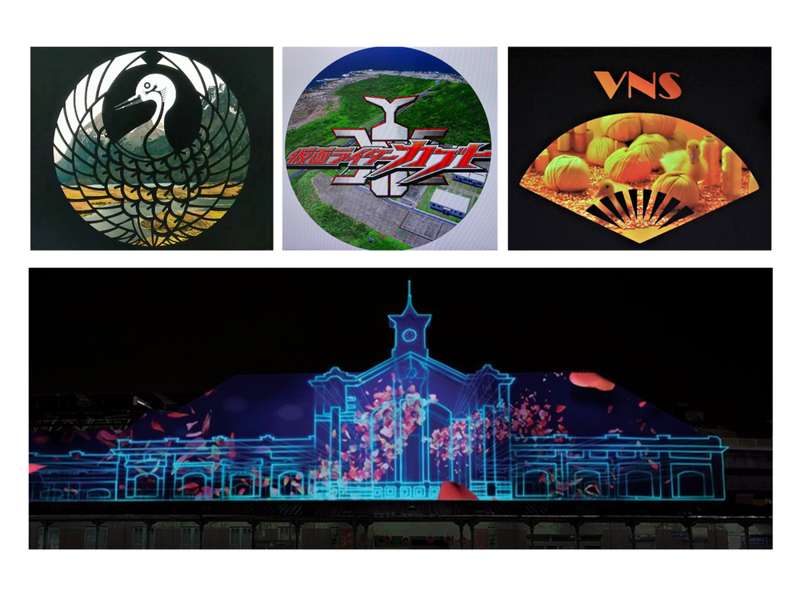

Experience the Next Level of Projection Mapping

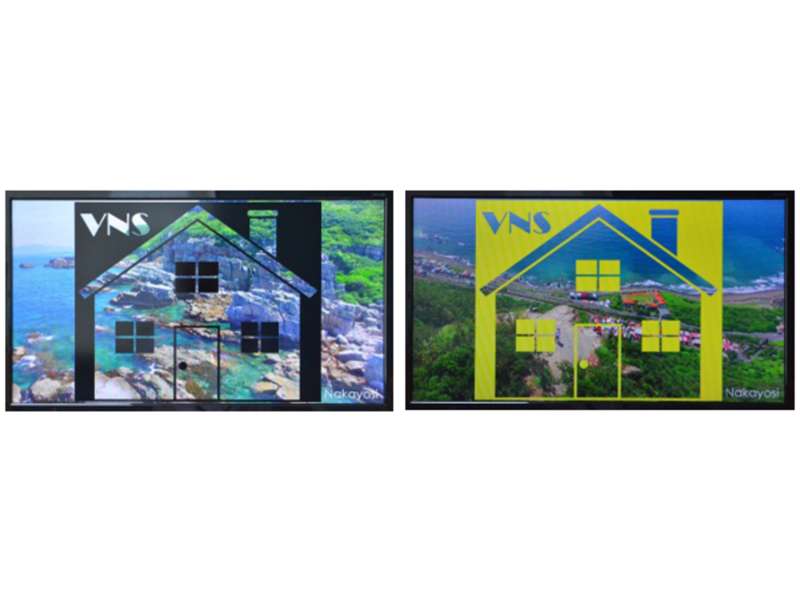

The M800Ex, an advanced iteration of the M800, now comes equipped with a groundbreaking Digital Mapping function. Building upon the capabilities of the M800, the M800Ex empowers users to apply monochrome photos or patterns through a PC tool. It allows you to decide whether to display signal source images in black or white areas, all while automatically masking the output image. Say goodbye to the tedious task of manually masking source images for projection mapping.
- Modulerized design of edge blending processor
- Up to 120×68 warp control point
- Embedded video wall function, no image splitter is required.
- 4K loop out port for daisy chain connection in cascade application.
- Easy configuration via IR remote, PC tool, or WebGUI.
Seamless Pattern Storage and Playback
Each M800Ex box can store up to 10 different patterns, eliminating the need for a PC to implement projection mapping playback. With 4 input ports (2x HDMI, 1x DP, 1x VGA) and 1x HDMI output in each processing module, the M800Ex supports digital input resolutions up to 7680x2160 @30Hz (or 1k/8k) / 7680x1200 @60Hz with 4:4:4 full-color sampling. The output delivers stunning visuals at up to 2048x1080 @60Hz, driven by an integrated 10-bit high-end processor, motion adaptive de-interlace, low angle smooth algorithm, 3:2/2:2 pull-down, and support for non-VESA standard input timing.
Precision Geometry Control with Advanced Warp Technology
Unlock the power of advanced warp technology with the M800Ex. This feature enables users to execute edge blending and intricate geometry alignment with up to 17x17 control points, accessible via an IR controller, USB, WebGui, or Ethernet. Discover new functions like linear grid Line Adjustment and Corner Wall image adjustment for mapping images at 90-degree corners. Standard features include separate R, G, and B gamma correction for edge blending region color fine-tuning, individual color correction for each output, and 9 regions for black level uplift to compensate for projector light leakage. Witness real-time geometry and color adjustments for an optimized outcome.
Effortless Connectivity and Video Wall Functionality
HDMI loop-out simplifies connectivity, supporting daisy-chaining up to 8k/1k @30Hz / 4096x2160 @60Hz, enabling expansive displays with multiple cascaded units. The video wall function simplifies cropping, allocating source images for each projector, and the configuration of overlap pixels for seamless edge blending. Achieve complete curved edge blending with only the remote controller and Ethernet. No additional devices are required except for signal sources and projectors.
Flexible Display Options with PIP and POP Functions
Standard PIP (picture in picture) and POP (side by side) functions offer many display possibilities, with PIP image sizes ranging from 320x180 to 1920x1200. In a single M804, users can display up to 8 different input contents on the screen. Enjoy the convenience of image rotation (90/180/270 degrees) and flip options in both primary and sub-images, enhancing system flexibility.
Cost-effective and Hassle-Free Projection Mapping
The M800Ex empowers users to effortlessly replace high-end projectors with cost-effective alternatives, eliminating the need for lens shift, warp, and edge blending. It offers a low entry barrier, cost-effectiveness, reliability, and flexibility.

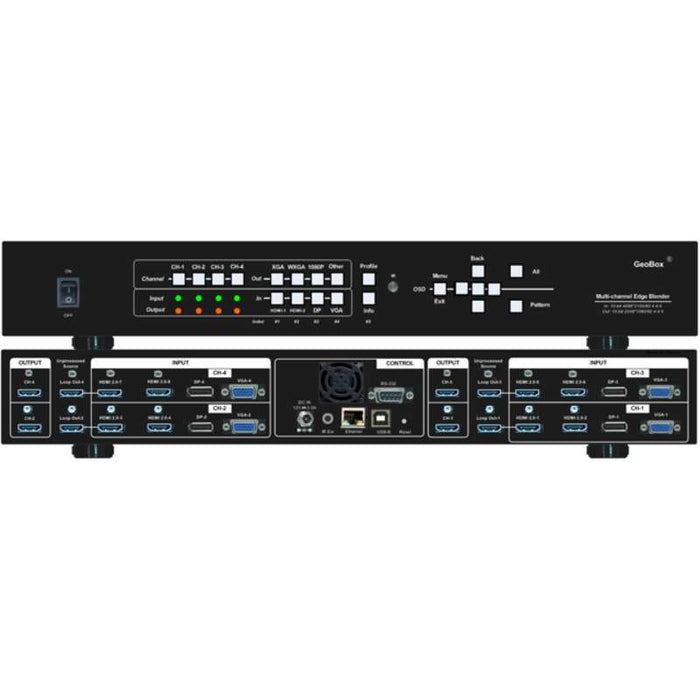

Specifications
- Processor:
-
M801Ex: Single module processor
-
M802Ex: Dual module processor
-
M803Ex: Triple module processor
-
M804Ex: Quad module processor
Processing module:
- Input: 2x HDMI2.0b, 1x DP1.2a and 1x VGA
- Output: 1x HDMI1.4
- Loop output: 1x HDMI2.0b for daisy-chain connection
HDCP Compliance:
- Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3
- Output: HDCP V1.4
Input Resolution:
- 7680x2160 30Hz, 7680x1200 @60Hz, 4096x2160 60Hz
- Supports progressive and interlaced RGB/YUV signal
- 4:4:4 Chroma sampling
- Up to 30 Color bits
- Support non-VESA standard input timings
Outputs:
- 15 selectable Outputs: HDMI1.4 up to WUXGA, 2048x1080/60, progressive 4:4:4 RGB
- 2 frames system latency: 33ms (@V=60Hz)
Geometry Adjustment:
- Warp engine for geometry alignment up to 17x9 control points in IR control and GCT PC Tool
- 120x68 grid pixel position fine-tune
- Each control point can be adjusted with 1/4 pixel/step and moved up to 12.5 pixels adjustment range
- Maximum adjusting points are 100 points
- Geometry adjustment range up to 600 pixels in both H&V directions
- Edge blending at 4 edges up to H=1920 pixels, V=1200 pixels with independent RGB gamma correction
- 9 regions black level uplift to compensate light leakage from projector optical system
- Edge Mask following the result of geometry alignment up to 500 pixels
- Edge Mask with 8 control points up to 900 pixels in H&V directions at each control point
- Support “W” type Corner Wall adjustment in horizontal and V type in the vertical direction
- The maximum adjusting range is 1200 pixels
- Support Linearity Grid Line adjustment for quick H&V line position alignment
Video Functionality:
- Embedded video wall function for image split, cropping, and edge blend overlapped pixel setting
- Selectable grid pattern size from 8-120 pixels in the H&V direction
- Selectable grid pattern color with optional transparency to see background image for external pattern
- Flexible aspect ratio adjustment in each edge up to +_ 1800 pixels position shift
- 10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm, high-quality scaling engine
- 3D motion adaptive de-interlace
- Frame lock function to get perfect synchronized outputs in all channels
- Free-run mode provides a continuous signal to the output; no source searching is required in the projector when the input source change
- Support xvYCC & 8/10/12-bit deep color processing
- Support High Dynamic Range (HDR) input signal and convert it to SDR in the output
- Individual color and white balance adjustment in each processing channel
- Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment in each channel up to 4k/60 input
- PIP/POP function with PIP image size from 320x180 up to 1920x1200 resolution with flexible position and adjustable aspect ratio. This function is not available when the main image is 90/270 degrees rotation
- Selectable and programmable EDID in the range: H=1024-3840, V=720-2400
- User can save up to 5 settings and can be recalled by remote controller, RS
Working Environment:
- Temperature: 113°F
- Humidity: 10-90% RH
Control:
- Keypads
- IR
- RS232
- USB
- Ethernet
System Settings:- Can be stored and backed up on a PC
Power:
- Power supply: DC 12V, 3.3A
- Power consumption:
- M801Ex: 8.4 watts
- M802Ex: 14.4 watts
- M803Ex: 21.6 watts
- M804Ex: 28.8 watts
Dimensions (Body Only):
- Without protruding parts:
- M801Ex: 11.9 in x 6.5 in x 1.7 in
- M802Ex-M804Ex: 17.3 in x 7.5 in x 2.3 in
Weight (Body Only):
- M801Ex: 3.33 lbs.
- M802Ex: 5.45 lbs.
- M803Ex: 5.82 lbs.
- M804Ex: 6.19 lbs.
Certifications:Warranty:
