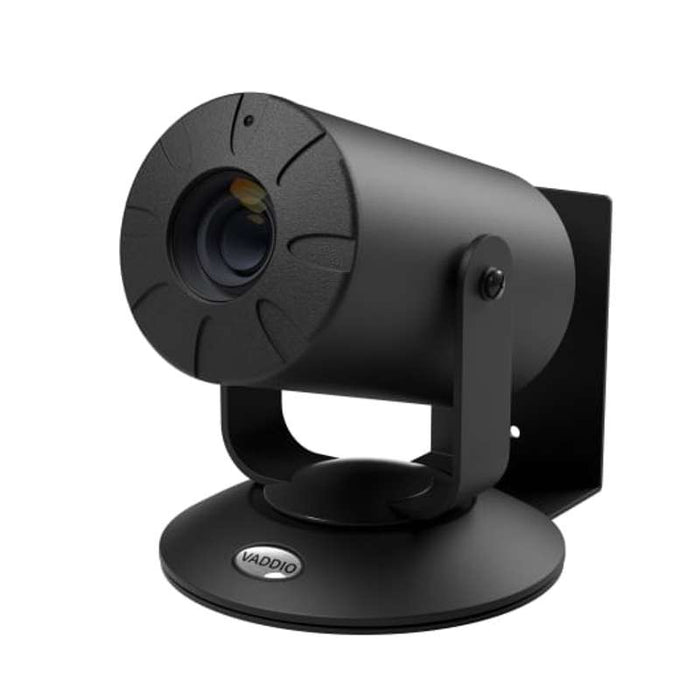

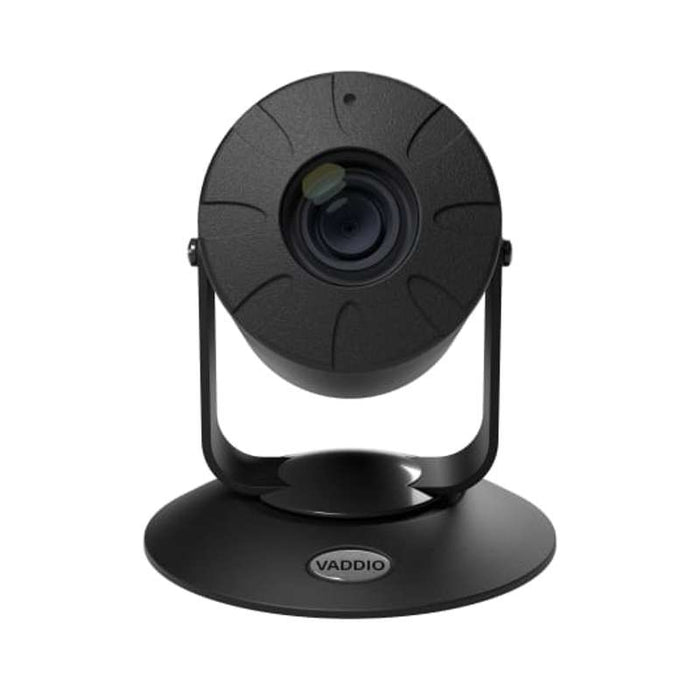

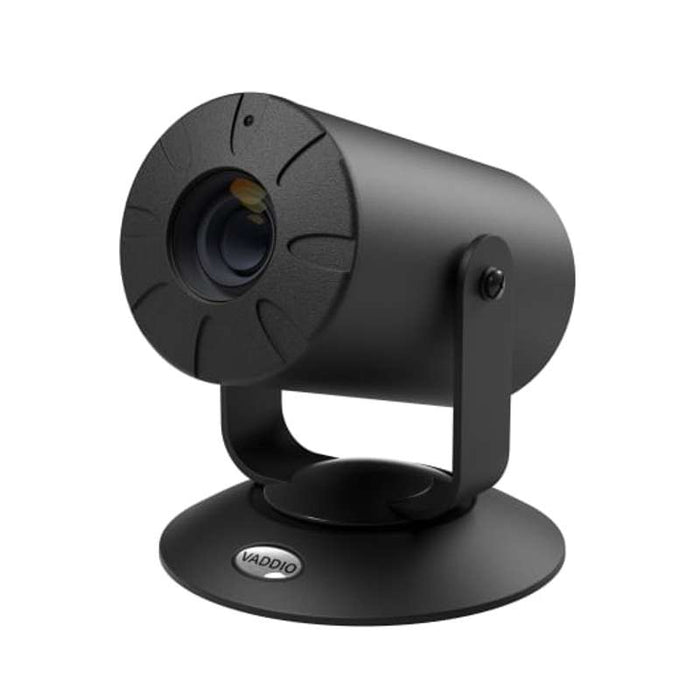

ZoomSHOT® 4K Camera with OneLINK HDMI System
The ZoomSHOT® 4K with OneLINK HDMI System is a low‑cost, high‑performance point‑of‑view camera solution delivering stunning UHD 4K image quality. Designed for small, medium, and large rooms, it supports a wide range of applications including houses of worship, pro AV system integration, live events, IMAG systems, UCC applications, videoconferencing, distance learning classrooms, and lecture capture.
Featuring a 1/2.5" Sony Exmor™ CMOS image sensor, the ZoomSHOT 4K captures sharp 2160p/30 video with a 30x optical zoom and a wide 70.2° horizontal field of view. Manual pan and tilt with an EZ Set tensioning system allow precise framing, while a presenter‑friendly IR remote makes operation simple and intuitive.
The included OneLINK HDMI extension system enables HDMI video, control, and power to be extended up to 150 ft (45.7 m) over a single cable for clean, professional installations. The camera can also be used as a standalone device without an extension system if desired.
Key Features
- UHD 4K video output up to 2160p/30
- 30x powered optical zoom with 70.2° horizontal field of view
- HDMI video output with OneLINK HDMI extension support
- Manual pan and tilt with EZ Set tensioning system
- RS‑232 control for third‑party system integration
- Local 12V camera power or remote power via OneLINK system
- Compatible with Kensington security lock
What’s Included
- ZoomSHOT 4K camera (Black or White)
- Thin‑profile wall mount with mounting hardware (Black or White)
- Vaddio IR Shot Commander remote (includes 2 × AAA batteries)

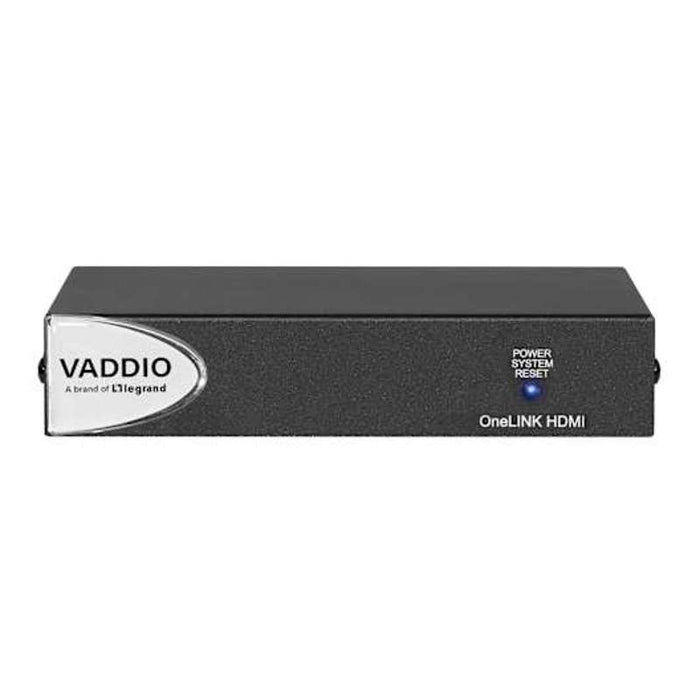

- OneLINK HDBaseT EZIM (Easy Interface Module)
- Cables to connect ZoomSHOT 4K camera to EZIM
- OneLINK HDMI HDBaseT extension
- 48V power supply for OneLINK Bridge with AC cord set(s)
Dimensions & Measurements
-
Camera Dimensions: 5.5" W × 7" H × 5.8" D (14 × 17.78 × 14.73 cm)
-
QMini Dimensions: 4.46" W × 1.24" H × 3.58" D (11.3 × 3.15 × 9.1 cm)
-
Product Weight: Camera 3.5 lbs (1.59 kg); QMini 1.12 lbs (0.51 kg)
-
Shipping Weight: 1 lb (0.5 kg)
-
Maximum Distance Supported: 150 ft (45.7 m)
Performance & Technical Specifications
-
Camera Type: Fixed
-
Image Sensor: 1/2.8" Exmor CMOS
-
Total Pixels: 2.14 Megapixels
-
Maximum Resolution: 2160p @ 30 fps
-
Minimum Illumination: 0.3 Lux
-
Zoom: 30x optical
-
Field of View: 70.2° (wide)
-
Pan Range: Unlimited (manual)
-
Tilt Range: +30° / −30°
-
Preset Positions: 16
Connectivity & Control
-

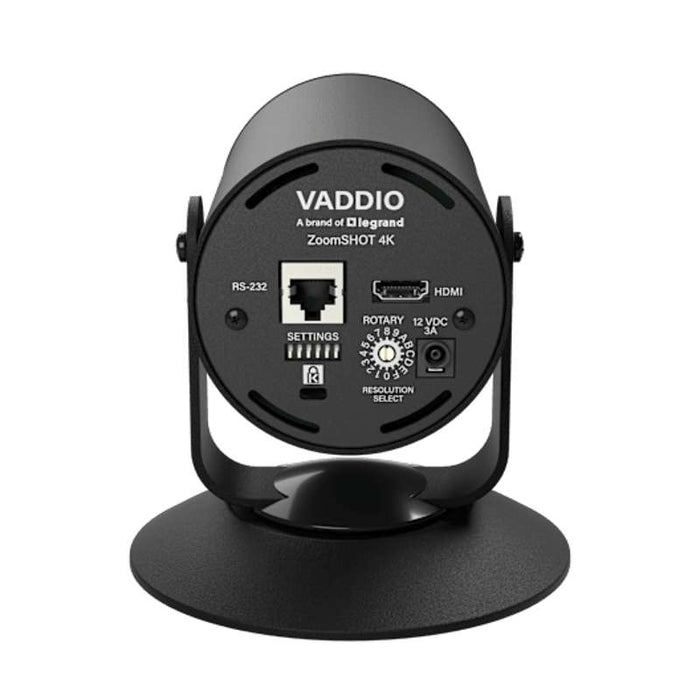

Output Ports: HDMI 1.4b, RS‑232
-
Input Ports: EZ Power Video, RS‑232
-
Control Methods: IR Remote, RS‑232
-
Signal Type: USB 2.0
-
Power Type: EZ Power (Local or OneLINK)
-
Quick‑Connect Compatibility: QMini
Environmental & Compliance
-
Operating Temperature: 32°–104°F (0°–40°C)
-
TAA Compliant: Yes
-
Certifications: CE, FCC, TAA
-
Warranty: 3 Years
-
UPC: 840077509088
