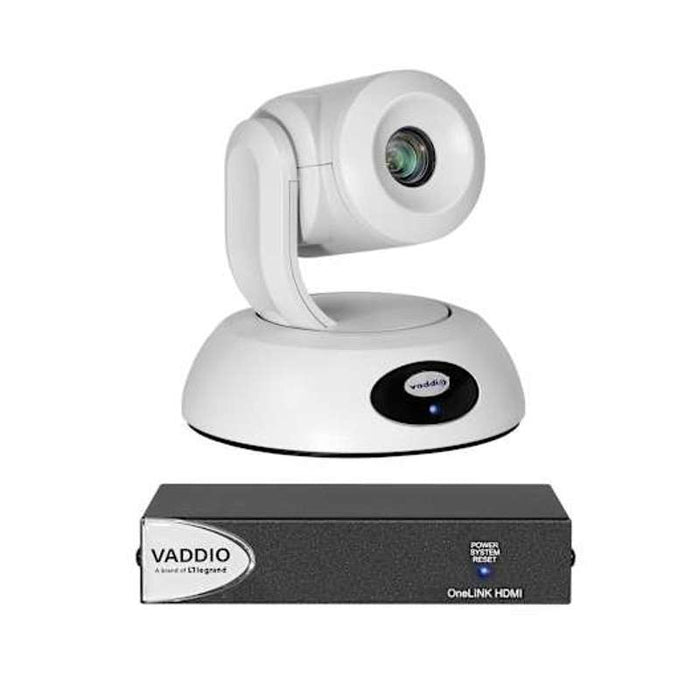

RoboSHOT 4K 30E HDBT OneLINK HDMI PTZ Camera System
This PTZ camera system combines the RoboSHOT 4K 30E HDBT camera with the OneLINK HDMI Receiver for HDBaseT Cameras to extend power, video and control over a single cable for simple, tidy installation. Recommended for large meeting rooms, lecture halls, and houses of worship.
Key Features:
- 4K30 Video Resolution
- 30x Optical Zoom PTZ Camera System
- 1/2.5-type Exmor R CMOS sensor
- 70.2° horizontal field of view
- Simultaneous HDBaseT and HDMI Outputs
- Remote IP Management
- Simple, clutter-free camera extension with HDBaseT technology
- Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
- Simultaneous HDMI and IP Streaming outputs
- Kensington Lock Capable
Introducing the RoboSHOT Elite Series – Vaddio’s next generation of professional PTZ camera systems. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 2160p/30 video, even in dim lighting conditions.
RoboSHOT Elite PTZ cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control.
The RoboSHOT 30E cameras have a 20x optical zoom and have an additional 10x of IntelliZoom™ Image Processing. IntelliZoom image processing technology lets you zoom greater distances without compromising any resolution quality of the image. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. The RoboSHOT 30E camera’s powerful processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images.
The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

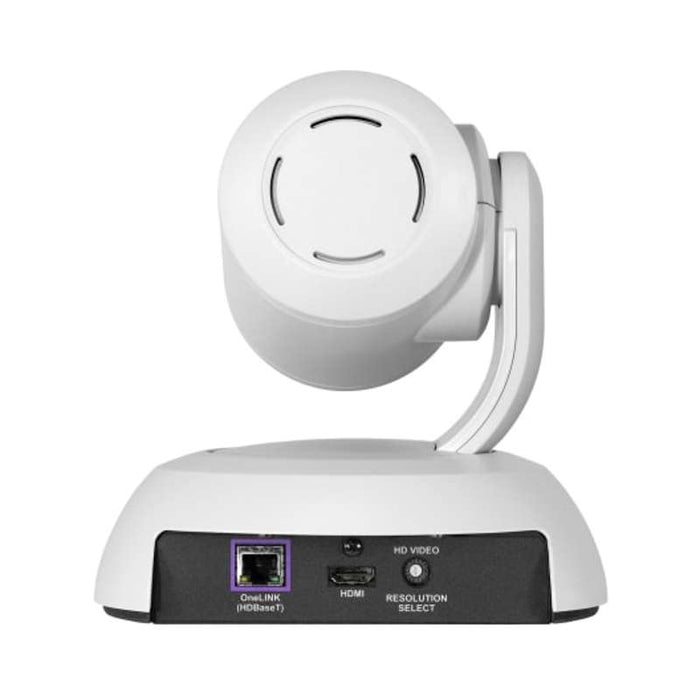

The RoboSHOT 30E PTZ cameras are ideal for larger spaces such as large meeting rooms, lecture halls, conference centers, and houses of worship. Video outputs include simultaneous HDBaseT and HDMI. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.

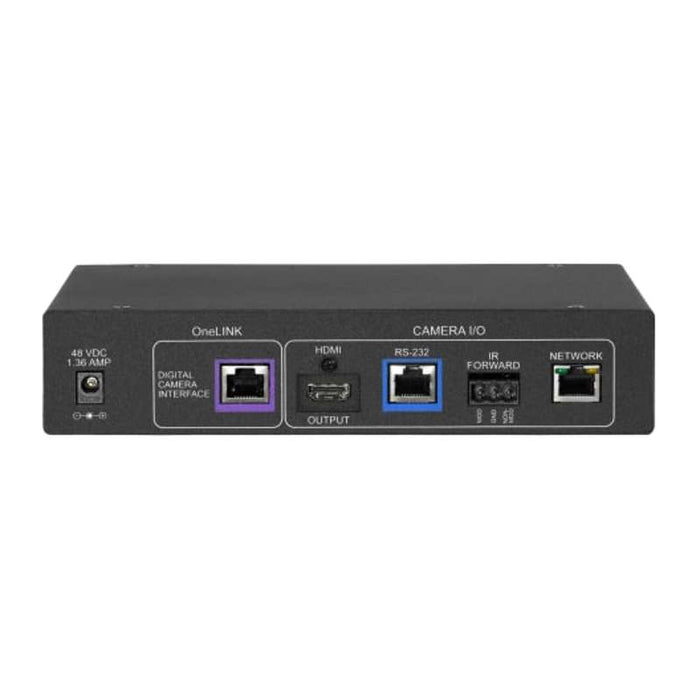

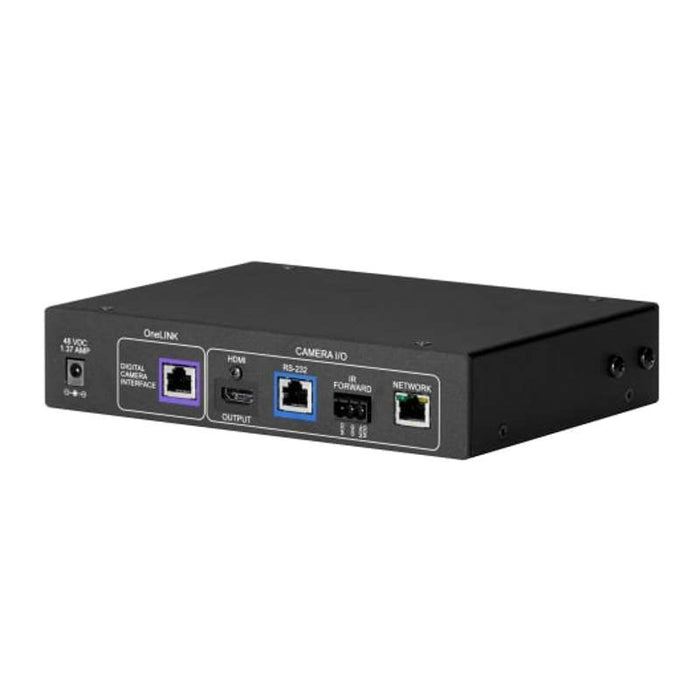

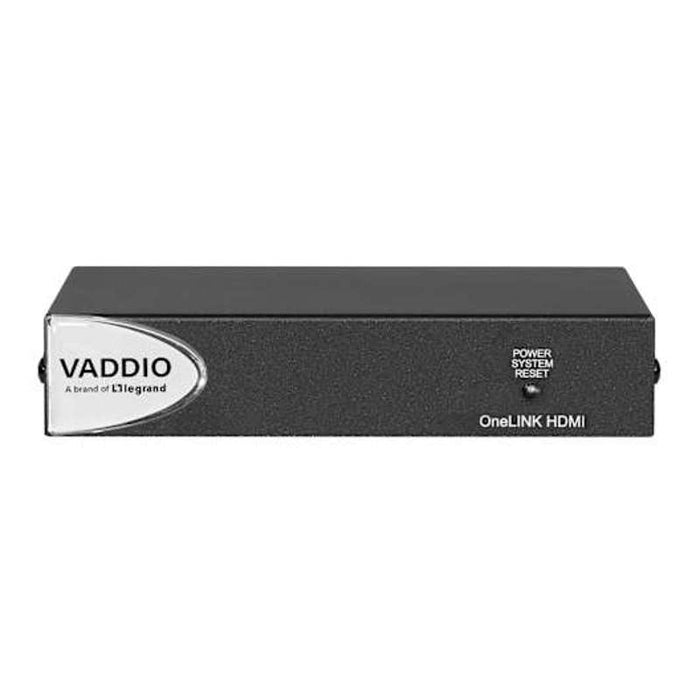

The system's OneLINK HDMI Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.
This Package Includes:
- RoboSHOT 4K 30E HDBT PTZ camera (black or white)

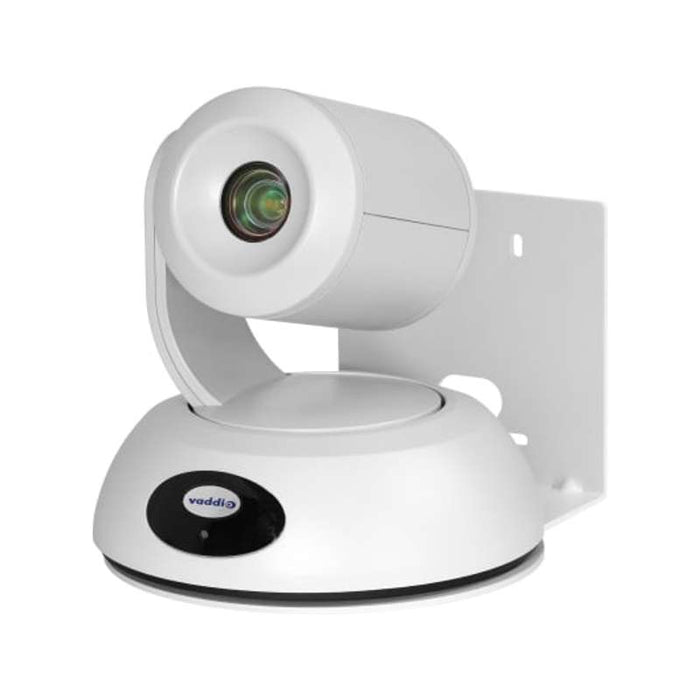

- Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
- Vaddio IR Remote Commander
- OneLINK HDMI Interface
- 48V power supply with AC cord set(s)
- EZCamera RS-232 Control Adapter
- Quick-start cards
