Typically ships in 3-5 days. Call of chat for current availability.
Specifications
Taa:
Yes
Use-case:
Government
Warranty-years:
3 years

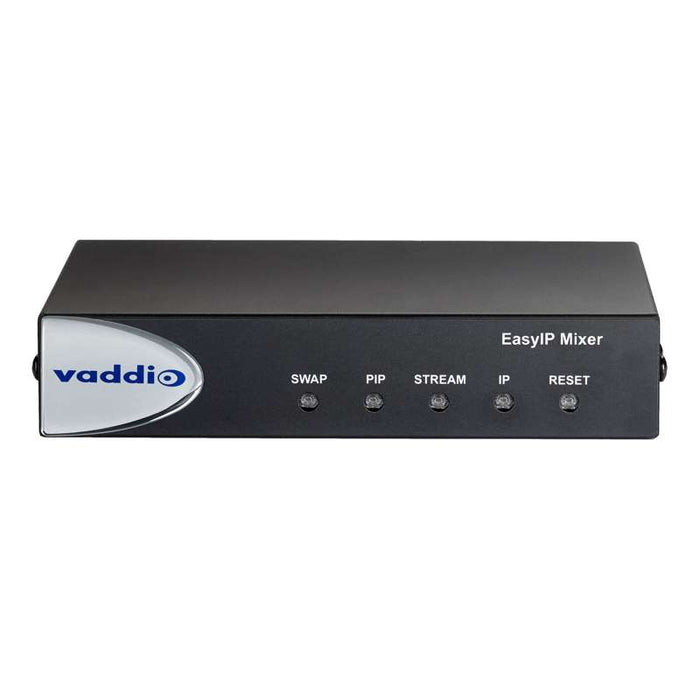

Vaddio EasyIP Mixer, 999-60320-000
Ideal for large classrooms and multi-camera applications, the EasyIP Mixer combines Dante audio sources and four Vaddio EasyIP cameras to deliver our easiest production switcher to date.
Compact A/V switcher supporting four EasyIP Camera video feeds plus an HDMI source
Flexible control options with serial, telnet, trigger, Vaddio Device Controller, and web control
Key Features
Installing and commissioning multi-camera designs has never been easier! The EasyIP Mixer revolutionizes the complex classroom A/V system, replacing expensive HDMI cable runs with category cables and saving precious time with simple video and audio routing in our intuitive web-based user interface.
Pair the EasyIP Mixer with up to four EasyIP cameras located on the network for exceptional room coverage. The additional HDMI input allows you to connect a PC for simple content sharing on a platform that easily switches between sources and delivers useful picture-in-picture (PIP) video streams. Simultaneous 1080p/60 USB 3.0 and HDMI outputs allow for multipurpose video distribution. Use the EasyIP Mixer to simultaneously record to a local PC and magnify the speaker video through a room projector. Or use the USB 3.0 interface with popular videoconferencing applications – including UVC control of connected cameras.
The EasyIP Mixer has robust audio mixing capabilities as well. A 4x4 Dante I/O allows for scalable networked audio to meet the needs of any application. No complicated audio routing - it’s easy to pair four EasyIP CeilingMIC D Dante microphones throughout the space. In larger rooms, select from a list of dozens of Dante audio products to select the optimal audio pickup of each event. Install the EasyIP Mixer in your existing classroom by utilizing the 2-channel analog audio I/O.
Experience worry-free presentations with the automation features built into the EasyIP Mixer. Connect Vaddio trigger devices like the StepVIEW Mat to recall a library of macros built into the web-based user interface. Control PIP settings, video sources, camera position presets, and more with intuitive API integration for third party applications and control hardware. Store graphic overlays such as a company logo or speaker name to bring production quality to everyday events.
Get more from your video calls – switch between a view of the boardroom table and the action at the whiteboard without missing a beat. Enjoy crystal clear audio through built-in echo cancellation, ensuring that everyone hears both sides of the conversation without annoying feedback issues common with inexpensive audio devices.
What do you need for an EasyIP system to work seamlessly? The system is based around a PoE+ network switch like the EasyIP Switch AMS-1208P or one of Luxul’s PoE+ managed switches. This network switch provides the power and control capabilities for the EasyIP Cameras as well as the EasyIP CeilingMIC D microphones. Next, pair the EasyIP Mixer to the same network and pair the desired endpoints with the included web-based user interface. No expensive external processors, no costly management software tools – the whole system can be configured in minutes.
The EasyIP Mixer is the easy-to-use, cost effective device you need for your next AV over IP design.
This Package Includes:
EasyIP Mixer
Quick-Start Guide
3 ft (0.9 m) cat-5 cable, black
6 ft (1.8 m) USB 3.0 cable, type A to B
6 qty 3-position phoenix-style connectors
Half-Rack mounting kit (for mounting the EasyIP Mixer into a full rack space)
