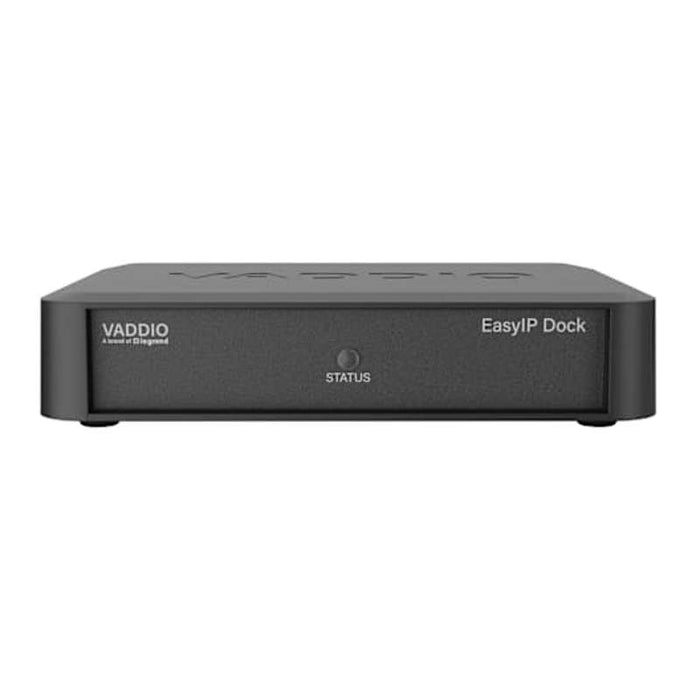

EasyIP Dock
A compact A/V switcher in the EasyIP ecosystem, the EasyIP Dock connects EasyIP cameras, video, and audio to a computer while simultaneously extending that computer’s HDMI output over the network for flexible presentation and conferencing spaces.
Key Features
- Manages up to four EasyIP cameras or EasyIP video sources with switching and camera control
- 1080p/60 video over USB 3.0 with USB 2.0 backwards compatibility and AEC
- HDMI In converts to EasyIP output for networked extension with simultaneous HDMI output loop
- 8x8 Dante audio matrix (15x13 full cross-point audio matrix)
- EasyIP Multicast allows content sharing with any number of EasyIP endpoints or destinations
Overview
At the center of your room’s conferencing system, the EasyIP Dock brings together cameras, microphones, and content sources into a unified AV workflow. EasyIP cameras and Dante audio devices connect over the network to the EasyIP Dock, delivering professional-quality video and crystal-clear audio. Connect a computer or BYOD via USB 3.0 to join video conferences on Microsoft Teams and Zoom, or integrate with learning management systems such as Panopto and Kaltura. The USB connection includes Acoustic Echo Cancellation (AEC) for echo-free audio.
Presenters can connect a laptop to the EasyIP Dock via HDMI to distribute content over the network to EasyIP endpoints. For in-room display needs, the HDMI loop-through provides a straightforward pass-through connection to a monitor or projector.
Built on AV-over-IP technology, the EasyIP Dock simplifies video distribution by transporting content over standard network infrastructure. With EasyIP multicast, users can extend an EasyIP source to multiple locations, reducing installation complexity and equipment costs.
The full 15x13 cross-point audio matrix enables advanced configurations, including 8x8 Dante routing and dedicated paths for balanced analog and HDMI input. Use with EasyIP CeilingMIC D microphones or other Dante-enabled devices for scalable, high-quality networked audio.
Control Options
- UVC control over USB for soft conferencing applications
- Telnet integration with third-party control systems
- Web interface for system settings
- Optional Vaddio Device Controller for in-room touch control
Design & Installation
- Compact design for discreet mounting under tables, behind displays, or in AV racks
- Attractive tabletop or desktop placement option
- Power over Ethernet (PoE+) simplifies power and cabling
Package Includes
- EasyIP Dock
- 6 ft (1.8m) USB 3.0 cable, type B to A
- 6 ft (1.8m) HDMI cable
- 3 ft (0.9m) Cat-5e cable
- 2 qty 3-position phoenix-style connectors
- Desktop chassis brackets
