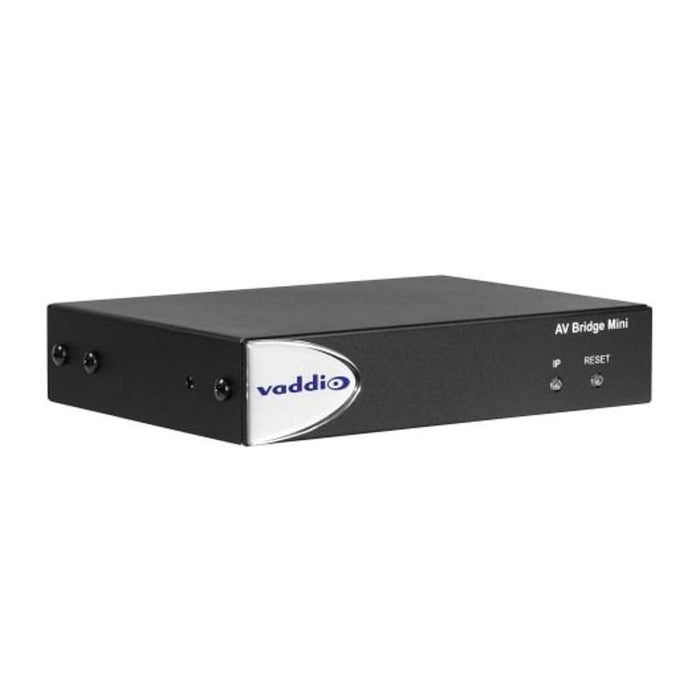

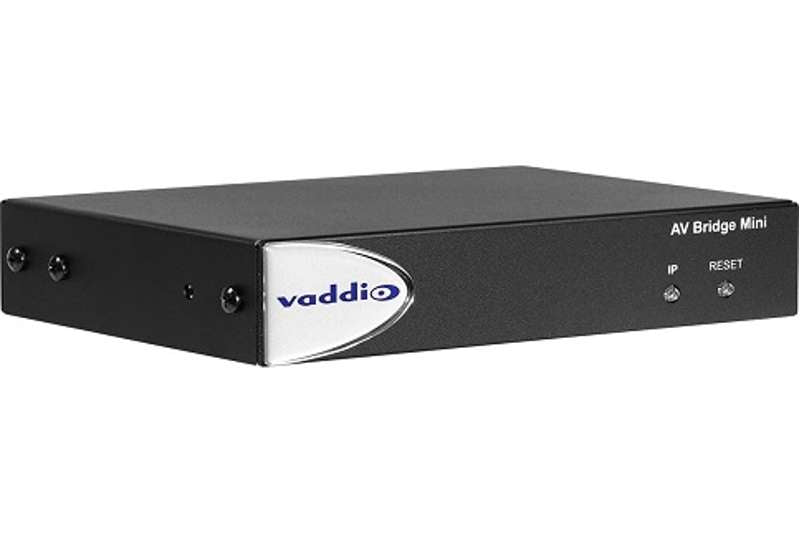

Vaddio AV Bridge Mini Audio/Video Encoder

Vaddio AV Bridge Mini Audio/Video Encoder

by Vaddio
SKU VAD9998240000

MSKU: 999-8240-000

$2,149.20 - $2,149.20
$2,149.20
$2,149.20 - $2,149.20
$2,149.20
Call to Order

Free shipping on all orders.

Typically ships in 2-4 days. Call or chat for current availability.

Request special pricing on this product

AV Bridge Mini Audio/Video Encoder, 999-8240-000

Key Features:

  • Enables software-based video conferencing with Pro AV peripherals

  • Outputs simultaneous USB 3.0 and IP streaming with up to 1080p quality

  • Compact half-rack unit size fits anywhere – easy to install

Overview

Ideal for lecture capture, conference rooms and video conferencing applications, the AV Bridge Mini encodes, captures and streams content from a convenient half-rack unit size.

With the AV Bridge Mini HD Audio/Video Encoder, you can bridge any high definition HDMI and audio source into soft conferencing applications such as Skype for Business, Zoom and WebEx through its powerful USB 3.0 interface. Creating production-quality live streams on platforms like YouTube Live, UStream, LiveStream and Panopto has never been easier with the AV Bridge Mini’s flexible RTMP capabilities.

AV Bridge Mini offers your favorite features of the AV Bridge and AV Bridge Conference with several important updates including:

• Integrates pro AV sources or systems into software conferencing codec or live streaming applications
• HDMI input accepts 4K (3840 x 2160) signals and encodes and scales appropriately
• Outputs simultaneous USB 3.0 and IP streaming with up to 1080p quality
• PoE powered – easily extends power and connectivity
• Easy to install – Half rack unit size fits anywhere
• Simple user interface and control - set and forget
• Mixer for controlling audio levels and outputs
• Seamlessly interfaces with Vaddio’s HD cameras, presentation systems, video mixing consoles, and other pro audio products
• Integrates with external DSPs by providing two balanced audio line inputs and outputs
• Minimizes interoperability problems by implementation of standards-based UVC and UAC drivers


Dimensions & Measurements

  • Depth: 6 in (15.2 cm)
  • Height: 1.72 in (4.4 cm)
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Width: 8.38 in (21.3 cm)

Characteristics & Features

  • Browser-based User Interface for Remote Control: Built-in
  • Color: Black
  • Control Method: RS232, Telnet, Web UI

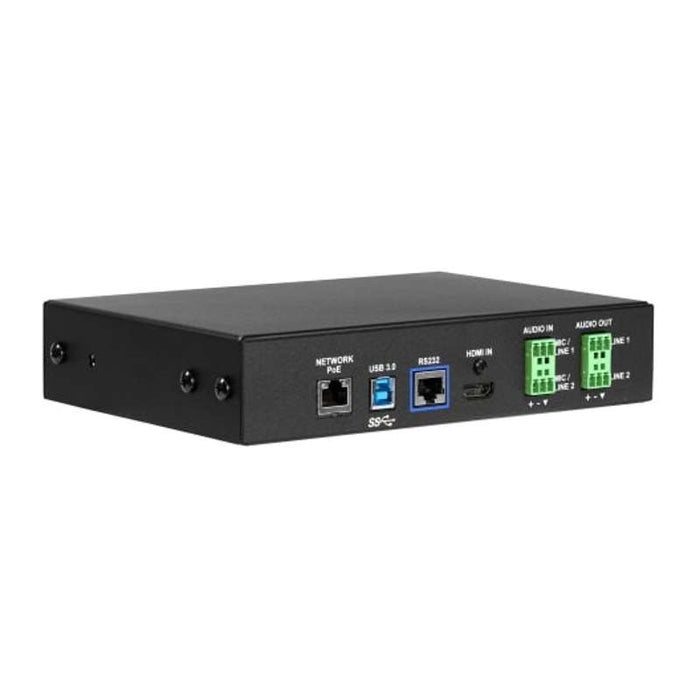

  • Input Ports: HDMI
  • OneLINK Compatibility: No
  • Output Ports: IP Streaming, USB 3.0 Type B
  • Power Cord: US Cord
  • Power Type: PoE
  • Special Features: Audio IO, IP Streaming
  • Top Resolution: 1080p 60

Certifications & Warranties

  • Certifications: CE, FCC, TAA
  • Warranty: 3 years
