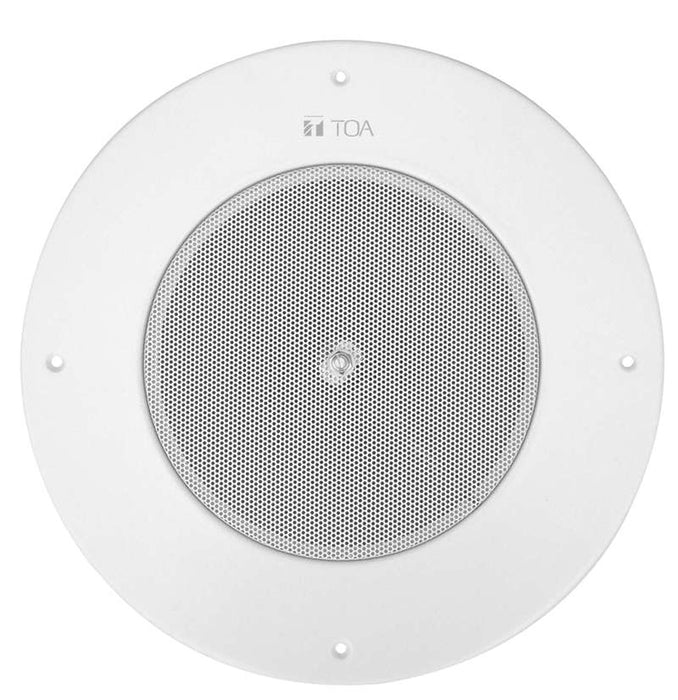

Ceiling Mount Speaker – PC-580RVU
The TOA PC‑580RVU is a high‑performance, cost‑effective ceiling speaker designed for Mass Notification Systems, Voice Evacuation, Emergency Paging, and everyday background music or paging applications. A key upgrade from the PC‑580RU is its center‑grille volume adjustment potentiometer, offering convenient on‑speaker level control without requiring access to the amplifier. When paired with the HY‑BC580U AM back can, the PC‑580RVU meets UL 2572, UL 1480 UUMW Fire Alarm Signaling, and UL 2043 compliance for use in air‑handling spaces, ensuring safe and code‑approved installation.
Key Features
-
8-inch Dual‑Cone Design: Produces clear, powerful audio for paging and announcements.
-
Center‑Grille Volume Control: Integrated potentiometer enables on‑speaker adjustment.
-
Cost‑Effective & Scalable: Suitable for large distributed systems requiring uniform performance.
-
25 V / 70 V Line Operation: Transformer taps up to 5 W for versatile system design.
-
Standard Ceiling Template Fit: Ideal for retrofit and new‑construction installations.
-
UL Certified (with HY‑BC580U Back Can): Meets UL 1480 UUMW & UL 2043 requirements.
-
Monocoque Structural Design: Improves durability and enhances acoustic integrity.
-
Optional Accessories: Tile bridge (LB8‑R1‑AM), mounting rails (Q‑HY‑TB2), and HY‑BC580U AM back can.
Specifications
Electrical
-
Rated Input: 5 W (70.7 V / 25 V line)
-
Rated Impedance:
- 70.7 V: 1 kΩ (5 W), 2 kΩ (2.5 W), 5 kΩ (1 W), 8.3 kΩ (0.6 W), 16.6 kΩ (0.3 W)
- 25 V: 125 Ω (5 W), 250 Ω (2.5 W), 625 Ω (1 W), 1 kΩ (0.6 W), 2 kΩ (0.3 W)
-
Sensitivity: 97 dB (1 W, 1 m)
-
Frequency Response: 50 Hz – 16.5 kHz
Speaker Components
-
Driver: 200 mm (8") dual‑cone
-
Volume Adjustment: Center‑grille potentiometer
Mechanical
-
Mounting Hole: Ø228.6 ± 3 mm (9" ± 0.12")
-
Mounting Method: M5 × 38 mm screws
-
Wiring: Solid wire Ø0.8 – Ø1.6 mm (AWG 20–12)
-
Connection: Push‑wire connectors with 2‑branch bridging terminals
Environmental
-
Operating Temperature: −10 °C to +50 °C (14 °F to 122 °F)
Construction
-
Panel: Steel plate, white, painted
-
Grille: Steel plate, white
-
Dimensions: Ø324 × 103 (D) mm (12.76" × 4.05")
-
Weight: 1.65 kg (3.64 lb)
Optional Accessories
-
HY‑BC580U AM Back Can (required for UL emergency signaling installations)
-
Q‑HY‑TB2 Mounting rails (2 required)
-
LB8‑R1‑AM Tile Bridge
Certifications (when used with HY‑BC580U AM Back Can)
- UL 2572 – Control and Communication Units for Life Safety
- ULC S541
- UL 1480 UUMW – Fire Alarm Signaling
- UL 2043 – Air‑handling spaces
