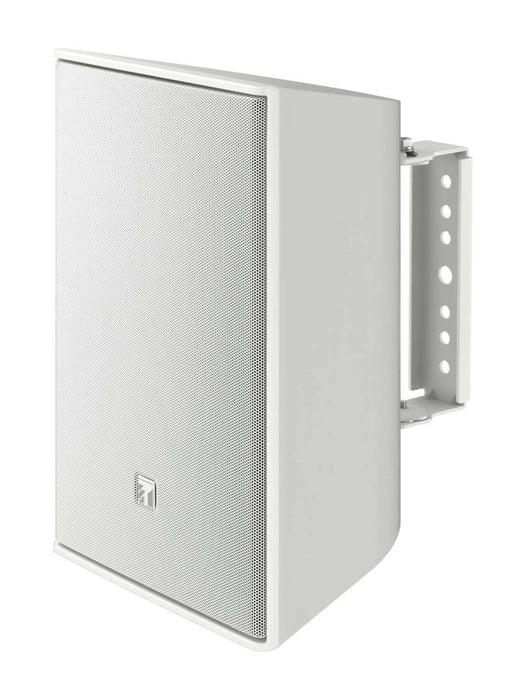

Weather-Proof Speaker – F-08WT-WP
The TOA F‑08WT‑WP is a powerful 8-inch, 2‑way weather‑proof surface‑mount speaker designed for foreground/background music and public address applications. Built to deliver strong bass, clear highs, and full-range performance, it is ideal for outdoor and semi‑outdoor environments such as stadiums, transportation hubs, retail complexes, hospitality spaces, and public facilities.
Featuring a rugged, sealed enclosure and high-quality mounting hardware, the F‑08BT‑WP offers reliable performance in demanding environments while maintaining a clean, architectural look. It supports both low‑impedance and high‑impedance (70V/100V) distributed audio systems, making it suitable for installations of any scale.
Key Features
-
Weather-Protected Construction: Built to withstand harsh outdoor conditions, including humidity, dust, and water exposure.
-
High-Power 2‑Way Design: 8-inch polypropylene low-frequency cone driver paired with a 1-inch dome tweeter for wide, balanced coverage.
-
Flexible Installation: Supplied brackets allow wall, ceiling, and angled mounting for precise coverage control.
-
Architectural Styling: Sleek housing blends into indoor or outdoor environments.
-
100V/70V Line Capability: Built-in transformer for distributed audio systems with multiple tap settings.
-
Strong Output Performance: Delivering high SPL for larger spaces, suitable for both music and voice announcements.
Specifications
Enclosure
-
Type: Sealed 2‑way surface‑mount speaker
Power
-
Rated Input: 60 W (100 V / 70 V line)
-
Rated Noise Power (Low‑Z): 90 W (8 Ω)
-
Continuous Program Power: 180 W (8 Ω)
-
Rated Impedance: 8 Ω
Transformer Taps
-
100 V Line: 60 W / 30 W / 15 W / 3 W
-
70 V Line: 60 W / 30 W / 15 W / 7.5 W / 1.5 W
Acoustic Performance
-
Sensitivity: 90 dB (1 W, 1 m)
-
Frequency Response: 70 Hz – 20 kHz (–10 dB)
-
Crossover Frequency: 3 kHz
-
Directivity: 100° (H) × 100° (V)
Components
-
LF Driver: 20 cm (8") polypropylene cone
-
HF Driver: 25 mm (1") dome tweeter
Connections
-
Input Terminal: M4 screw terminal
Construction
-
Enclosure Material: Weather‑resistant HIPS resin, black (painted)
-
Grille: Aluminum, black, powder-coated
-
Bracket: Stainless steel mounting hardware included
-
Dust/Water Protection: IP65 rating
-
Operating Temperature: –10°C to +50°C (14°F to 122°F)
Dimensions & Weight
-
Dimensions: 251 (W) × 392 (H) × 216 (D) mm
-
Weight: 5.5 kg
Included Accessories
- U‑shaped mounting bracket × 1
- Speaker brackets × 2
- Bracket fixing screw set × 1
- Terminal cover × 1
- Terminal cover mounting screws × 4
