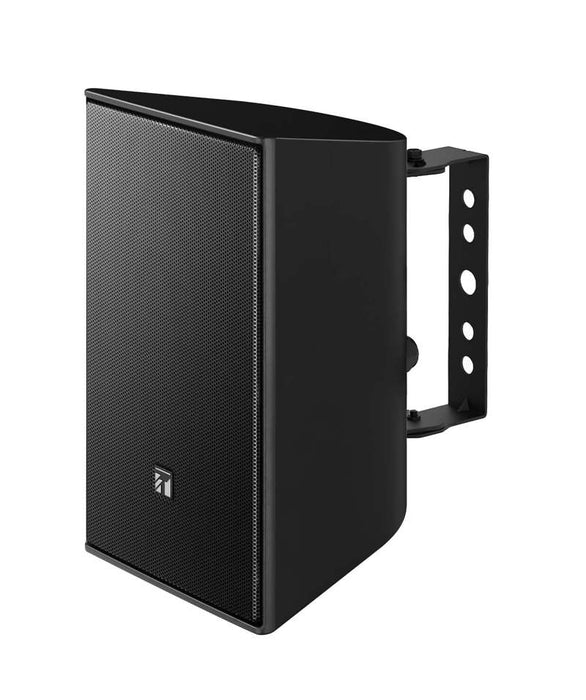

Weather-Proof Speaker – F-05BT-WP
The TOA F‑05BT‑WP is a weather‑proof, 5‑inch 2‑way surface‑mount speaker designed for high‑quality foreground and background music, as well as clear voice announcements. Offering the same acoustic performance as the F‑05BT indoor model, this WP version adds enhanced environmental protection, making it a versatile solution for outdoor hallways, covered patios, semi‑outdoor retail areas, transportation hubs, and hospitality spaces.
Its compact design blends seamlessly into architectural environments, while the supplied mounting hardware enables flexible aiming and fast installation. The speaker supports low‑impedance and high‑impedance systems, making it suitable for distributed audio, commercial installations, and scalable paging/music systems.
Key Features
-
Weather‑Protected Design: Built for semi‑outdoor environments where moisture or humidity is present.
-
2‑Way Full‑Range System: 5-inch LF driver and 1-inch dome tweeter deliver clear, balanced audio.
-
Flexible Mounting: Adjustable brackets allow both wall and ceiling installation with precise aiming capability.
-
Elegant Industrial Design: Blends into architectural spaces with a clean, modern look.
-
Easy Installation: Push‑in terminals and temporary docking feature simplify wiring.
-
100 V / 70 V Line Compatibility: Built‑in transformer supports multiple tap settings for distributed systems.
Specifications
Enclosure
-
Type: Bass‑reflex, 2‑way design
Power
-
Rated Input: 30 W (100 V / 70 V line)
-
Rated Noise Power (Low‑Z): 60 W (8 Ω)
-
Continuous Program: 120 W (8 Ω)
-
Rated Impedance: 8 Ω (low impedance)

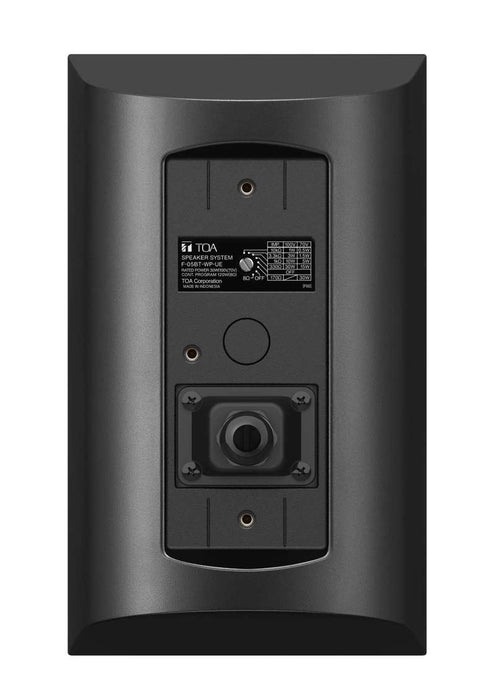

Transformer Taps
-
100 V Line: 30 W / 10 W / 3 W / 1 W
-
70 V Line: 30 W / 15 W / 5 W / 1.5 W / 0.5 W
Acoustic Performance
-
Sensitivity: 90 dB (1 W, 1 m)
-
Frequency Response: 60 Hz – 20 kHz (–10 dB)
-
Crossover Frequency: 4.5 kHz
-
Directivity: 100° (H) × 100° (V)
Components
-
LF Driver: 13 cm (5") PP cone-type
-
HF Driver: 25 mm (1") dome tweeter
Connections
-
Input Terminal: Push-in terminal block
Construction
-
Enclosure Material: HIPS resin, black (RAL 9011 equivalent), painted
-
Grille: Aluminum, black, painted
-
Bracket: Die‑cast aluminum, black, painted
-
Operating Temperature: –10°C to +50°C (14°F to 122°F)
Dimensions & Weight
-
Dimensions: 162 (W) × 274 (H) × 164 (D) mm (6.38" × 10.79" × 6.46")
-
Weight: 2.7 kg (5.95 lb)
Included Accessories
- Speaker bracket × 1
- Base bracket × 1
- Bracket cover × 1
- Bracket fixing screws × 1 set
