TOA Electronics BS‑1030W Universal Speaker – 30W, 2‑Way Wide‑Range Surface‑Mount Speaker (White)

Universal Speaker – BS-1030W

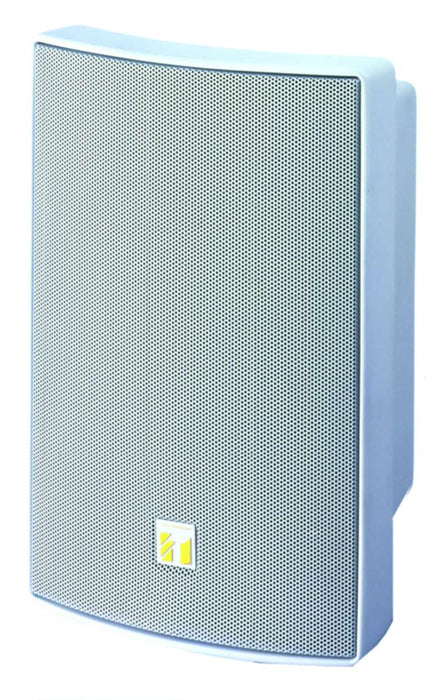

The TOA BS‑1030W is a compact, high‑quality 2‑way bass‑reflex speaker designed for both announcements and music reproduction. With a wide frequency range and flexible impedance options, it is ideal for commercial environments such as retail stores, restaurants, hospitality venues, educational spaces, and public facilities. Its splash‑proof construction (IPX3/IPX4 compliant*) allows installation under eaves or semi‑outdoor areas where it is not directly exposed to heavy rain.

Key Features

• 2‑Way Bass Reflex Design: Provides clear, full‑range sound suitable for speech and background music.
• Cost‑Effective PA Speaker: High performance for budget‑conscious installations.

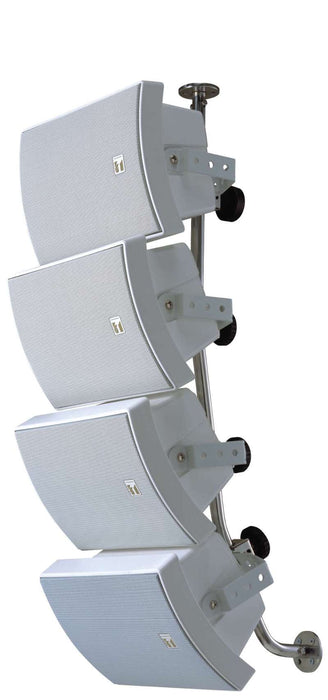

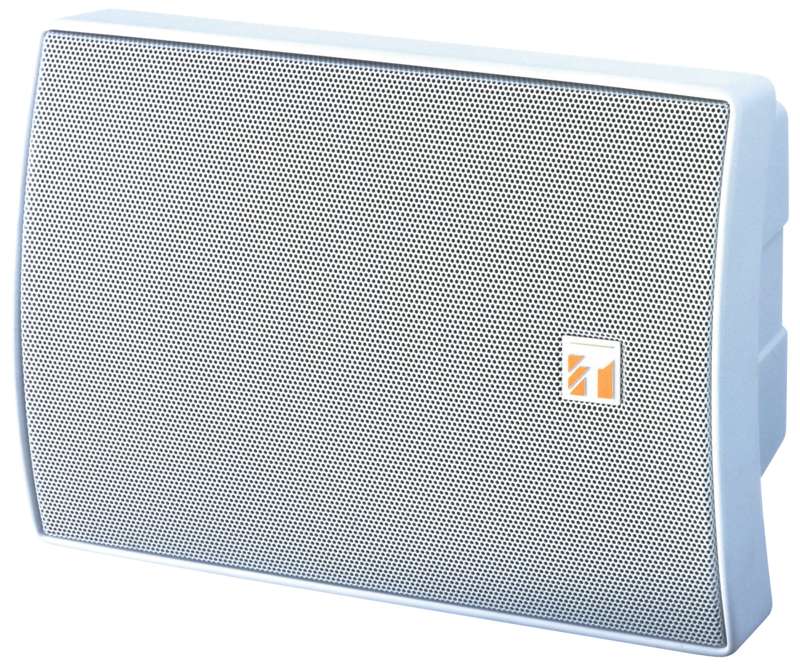

• Flexible Installation: Multiple mounting options for vertical or horizontal placement.
• Select-able Impedance: Choose low‑impedance (8 Ω) or high‑impedance (100 V/70 V) using a rotary switch.
• Splash‑Proof Construction: IPX3/IPX4 rated for semi‑outdoor environments.

Specifications

General

• Enclosure Type: 2‑way bass‑reflex
• Rated Input: 30 W

Impedance Settings

• Low Impedance: 8 Ω
• 100 V Line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
• 70 V Line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)

Performance

• Sound Pressure Level: 90 dB (1 W, 1 m)
• Frequency Response: 80 Hz – 20 kHz
• Speaker Components: 12 cm cone‑type + dome‑type

Construction

• Speaker Cable: 2‑core cabtyre cord, 6 mm diameter
• Water Protection: IPX4 (vertical or horizontal installation*)
• Operating Temperature: –10°C to +50°C
• Enclosure Material: ABS resin, black (RAL9011 GRAPHITE BLACK), painted
• Net: Surface‑treated steel plate, black (RAL9011), powder‑coated
• Bracket: Surface‑treated steel plate, black (RAL9011 equivalent), powder‑coated

Dimensions & Weight

• Dimensions: 196 (W) × 290 (H) × 150 (D) mm (unit only)
• Weight: 2.5 kg (unit only)

Included Accessories

• Mounting bracket × 1
• Bracket mounting screws × 2
• Bracket mounting washers × 2

*Note: Splash‑proof compliance depends on installation orientation and environmental exposure.
