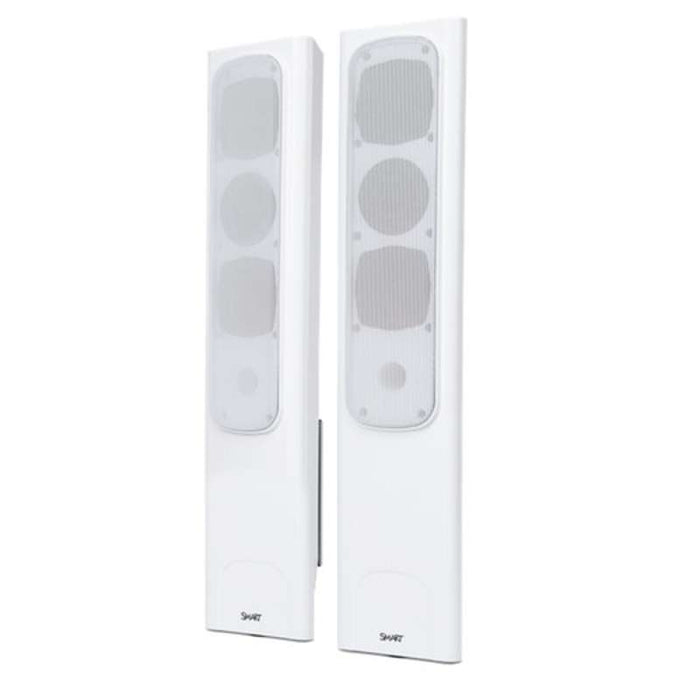

Audio speakers for SMART Board Interactive Displays (14W, Qty 2)
The SBA-100audio system for SMART Board® interactive displays is intended for SMART Board interactive displays with front control panels. You can also use the digital volume controls included in the connected computer’s operating system.
Standard Features
-
Mounting Brackets: Mount the speakers to the wall.
-
Color: White, matching the interactive display’s frame.
-
Frequency Range: 50 Hz to 20 kHz ±6 dB.
-
Output: 14 W RMS, both channels driven simultaneously.
-
Comfortable Listening Volume: Suitable for rooms up to 1,000 sq. ft. (93 m²) in size with a 30-person capacity (subject to room acoustics).
Storage and Operating Requirements
-
Power Requirements:
- Powered barrel connector (15V DC, 4A), positive center.
- Polarized Molex® connector (to the left speaker).
- Dual RCA receptacles (to the interactive display).
-
Switching Power Supply: 100V–240V AC, 50Hz–60Hz, 1.5A.
-
Power Cord Length: 14' 9 1/8" (4.5 m) country-specific power cord (15V DC, 4000 mA, 60 VA, positive tip).
Operating Specifications
-
Temperature Range: 41°F to 95°F (5°C to 35°C) with up to 80% humidity, non-condensing.
Certification and Compliance
-
Regulatory Certification: UL (U.S./Canada), CE, FCC, IC, C-Tick.
-
Environmental Compliance: RoHS, REACH, Packaging, and WEEE in China, European Union, and the U.S.
Purchasing Information
-
Order Numbers: SBA-100.
-
Warranty: One-year limited equipment warranty for the SBA-100 audio system for SMART Board interactive displays.
