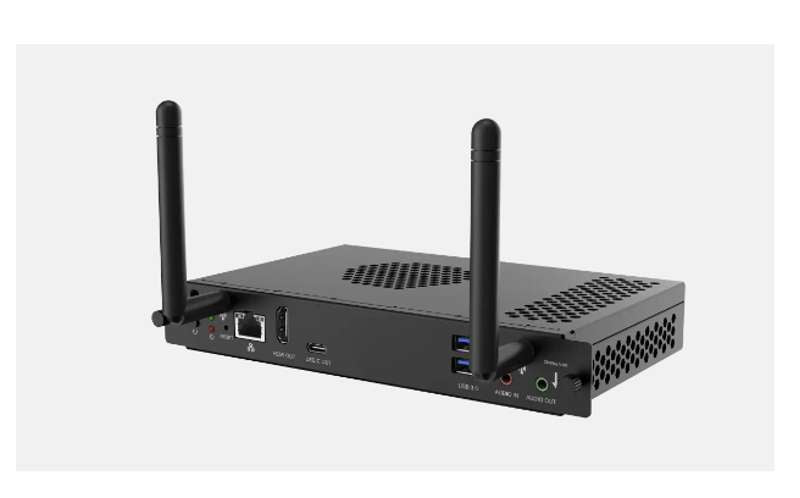

SMART Board Appliance Module - AMG1 for Board GX Displays
Refresh your technology at a fraction of the cost. SMART's appliance modules are a great way to upgrade to the latest embedded computing experience without the hassle of replacing your hardware.
Fully EDLA-licensed by Google, the AMG1 offers customers of SMART Board® GX series interactive displays interoperability with Google and Microsoft applications. Enjoy peace of mind with Android security and system updates plus new features and functionality for your display.
Specifications
Operating System:
- Built-in Android operating system
- Android version: 13.0
CPU:
Memory:
- 8 GB DDR4
- OS architecture: 64 bit
Storage:
-
64 GB (expandable up to 576 GB)
User Interface:
Web Browser:
- Google Play Protect
- Google Play Store
Other Features:
- Personalized home screen and settings
- Digital whiteboard
- Split screen
- File and app libraries
Inputs
-
RJ45 (LAN in): 1 x 1000BASE-T
-
USB 3.1 Type-A: 2
-
MicroSD slot: 1
-
Stereo 3.5 mm: 1
Outputs
-
USB Type-C: 1 (4K @ 60Hz)
-
Display Port: 1.4 (HDCP 1.3 and 2.2, USB 3.1, 4.5 W power delivery)
-
HDMI: 1 (2.1, 4K @ 60Hz, with HDCP 2.3 support)
-
Stereo 3.5 mm: 1
Connectivity
-
Wired: RJ45 1000BASE-T
-
Wi-Fi: IEEE 802.11ax (Wi-Fi 6e) supporting WEP, WPA, WPA2, WPA3, WPA PSK, and 802.1X EAP authentication protocols
-
Bluetooth: 5.2 dual mode
Storage and Operating Requirements
-
Power Requirements: 12-19V DC
-
Power Consumption: 22.5 W
-
Operating Temperature: 41-95°F (5-35°C)
-
Storage Temperature: -4-140°F (-20-60°C)
-
Humidity: 5-80% relative humidity, non-condensing
Security
-
Security Feature: Kensington® Security Slot
Supported SMART Displays
- Supported SMART Board interactive display series
- Installs in OPS slot and features plug and play (PnP) capability
Included Accessories
-
Antennas: 2
-
Illustrated Installation Instructions: 1
Software
- Built-in Android operating system
- SMART Remote Management
Installation, Dimensions, and Weights
Note: All dimensions and weights ±10%.
-
Product Weight: 1 lb. 8 oz (0.67 kg)
-
Product Dimensions: 7 7/8" × 5 1/4" × 1 1/8" (20 cm × 13.2 cm × 3 cm)
-
Shipping Weight: 2 lb. 3 oz. (1.0 kg)
-
Shipping Dimensions: 10 5/8" × 7 7/8" × 2 1/8" (27 cm × 20 cm × 5.5 cm)
