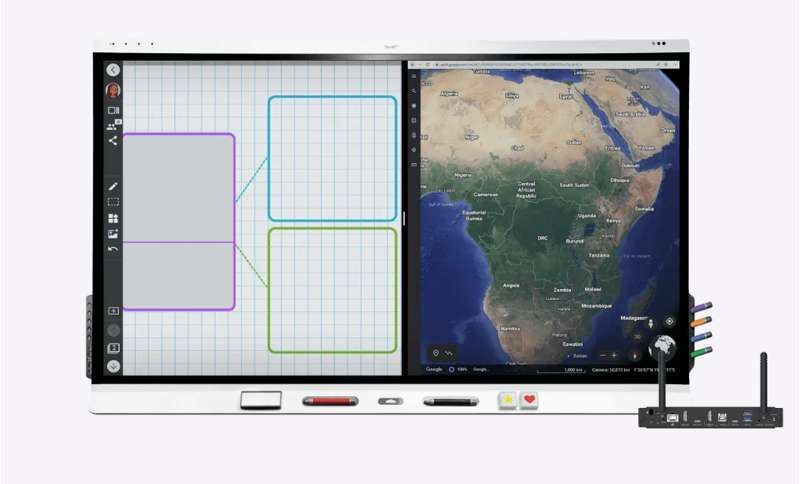

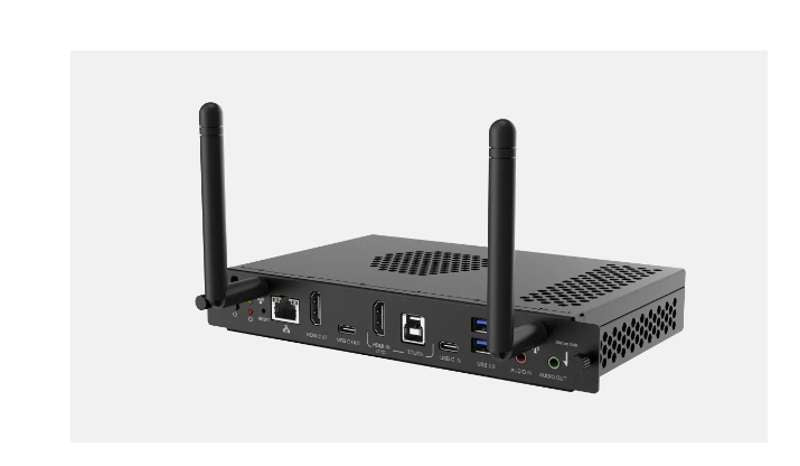

Appliance Module - AM60 for iQ-enabled SMART Board Displays
Refresh your technology at a fraction of the cost. SMART's appliance modules are a great way to upgrade to the latest embedded computing experience without the hassle of replacing your hardware.
For users of iQ-enabled SMART interactive displays, the AM60 iQ appliance provides an upgrade path to the latest embedded computing at a value that can't be beat. The EDLA-licensed by Google AM60 iQ appliance includes access to Google Play, powerful interoperability for Google for Education and Microsoft customers, including Google Meet and Microsoft Teams. The AM60 iQ appliance also comes with Android 13 OS, with an upgrade path to Android 14 via a future over-the-air update.
Specifications
Operating System:
- Built-in Android operating system
- Android version: 13.0
CPU:
Memory:
- 8 GB DDR4
- OS architecture: 64 bit
Storage:
-
64 GB (expandable up to 576 GB)
User Interface:
Web Browser:
Security:
Other Features:
- Personalized home screen and settings
- Digital whiteboard
- Split screen
- Picture-in-picture (PIP)
- File and app libraries
iQ Operating System:
- Available mid-2024
- iQ version 4.0 and later
- iQ digital whiteboard
- Screen sharing
- Cloud storage access
- Device-based sign-in to a SMART account
- Interactive widgets
- Templates, graphic organizers, and manipulatives
Inputs and Outputs
Inputs:
-
HDMI® 2.1: 4K @ 60Hz, with HDCP 1.4, HDCP 2.3, and ARC support (2)
-
USB Type-C: 4K @ 60Hz (1)
-
Display Port 1.2: USB 2.0 for touch and digital audio (1)
-
RJ45 (LAN in): 1000BASE-T (1)
-
USB 3.1 Type-B (1)
-
USB 3.1 Type-A (1)
-
MicroSD slot (2)
-
Stereo 3.5 mm (1)
Outputs:
-
USB Type-C: 4K @ 60Hz, Display Port 1.4, HDCP 1.3 and 2.2, USB 3.1, 4.5 W power delivery (1)
-
HDMI 2.1: 4K @ 60Hz, with HDCP 2.3 support (1)
-
Stereo 3.5 mm (1)
Connectivity
Wired:
Wireless:
-
Wi-Fi: IEEE 802.11ax (Wi-Fi 6e) supporting WEP, WPA, WPA2, WPA3, WPA PSK, and 802.1X EAP authentication protocols
-
Bluetooth: 5.2 dual mode
Storage and Operating Requirements
Power Requirements:
- 12-19V DC
-
Power Consumption: 22.5 W
Operating Temperature:
Storage Temperature:
Humidity:
-
5-80% relative humidity, non-condensing
Security Features
- Kensington® Security Slot
Certification and Compliance
-
Regulatory Model: CM-6
-
US/Canada: UL, FCC, ISED, CONEG
Supported SMART Displays
- Support may vary by series
- Installs in OPS slot and features plug and play (PnP) capability
Included Accessories
-
Antennas: 2
-
6' (1.8 m) USB Type-C 3.2 Gen 1, 5A: 1
-
Illustrated installation instructions: 1
Software
-
iQ built-in Android operating system: Included
-
SMART Remote Management: Included
Installation, Dimensions, and Weights
Note: All dimensions and weights ±10%.
-
Product Weight: 1 lb. 10 oz (0.74 kg)
-
Product Dimensions: 7 7/8" × 5 1/4" × 1 1/8" (20 cm × 13.2 cm × 3 cm)
-
Shipping Weight: 2 lb. 9 oz. (1.17 kg)
-
Shipping Dimensions: 10 5/8" × 7 7/8" × 2 1/8" (27 cm × 20 cm × 5.5 cm)
