Shure Small Room with Windows - Installation Included
The Shure Small Room with Windows is a certified Microsoft Teams Room solution designed for small meeting spaces with up to 6 participants. Built on the Windows platform, this solution features dual front displays, a below-display camera, a Shure tabletop touch controller, ceiling-mounted audio array, and a dedicated Windows UC compute system with an integrated network switch. USB-C connectivity provides simple content sharing, while the standard Microsoft Teams Rooms interface delivers a familiar meeting experience. ShureCloud device management is required for system monitoring and administration, with AVI-SPL available to assist with activation and setup.
Small Room
Up to 6 people
Recommended Viewing Distance
6 ft (183 cm) – 14 ft (427 cm)
2 × 65" wall-mounted front displays

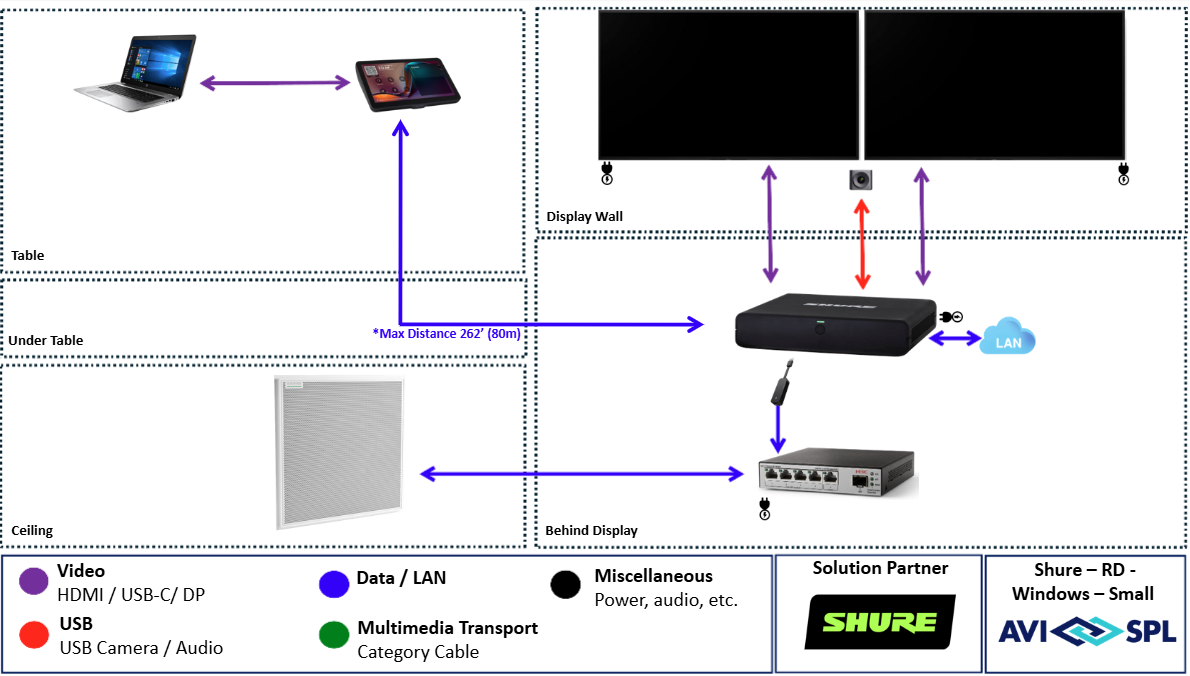

Dual Front Displays – Two wall-mounted flat panels serve as the primary presentation and video conferencing displays for enhanced visibility in small meeting spaces.
Table USB-C Connectivity – USB-C connection at the table provides content sharing and connects directly to the touch panel with appropriately sized cables included.
Shure Touch Panel Interface – Tabletop Shure touch controller provides the primary user interface and connects directly to the UC compute system for intuitive meeting control.
Below-Display Camera – Center-mounted camera installed beneath the dual displays provides video capture for remote meeting participants.
Ceiling Audio Array – Ceiling-mounted Shure microphone and speaker array installed in a 2×2 grid provides full-room audio coverage with clear voice pickup and playback.
Behind-Display UC Compute & Network Switch – Windows-based UC compute and compact network switch are installed behind the displays and require a network connection at that location.
ShureCloud Device Management – Cloud-based management platform provides device monitoring and administration. Customer activation is required, with AVI-SPL available to assist.
Designed for small meeting spaces, the Shure Small Room with Windows provides a complete Microsoft Teams Rooms experience with professional audio, video, and intuitive room controls. The ceiling-mounted Shure audio array delivers reliable voice pickup and sound coverage, while the dedicated Windows UC compute system powers the Teams Rooms interface. USB-C content sharing allows users to quickly connect and present, creating a simple and effective collaboration experience for both in-room and remote participants.
