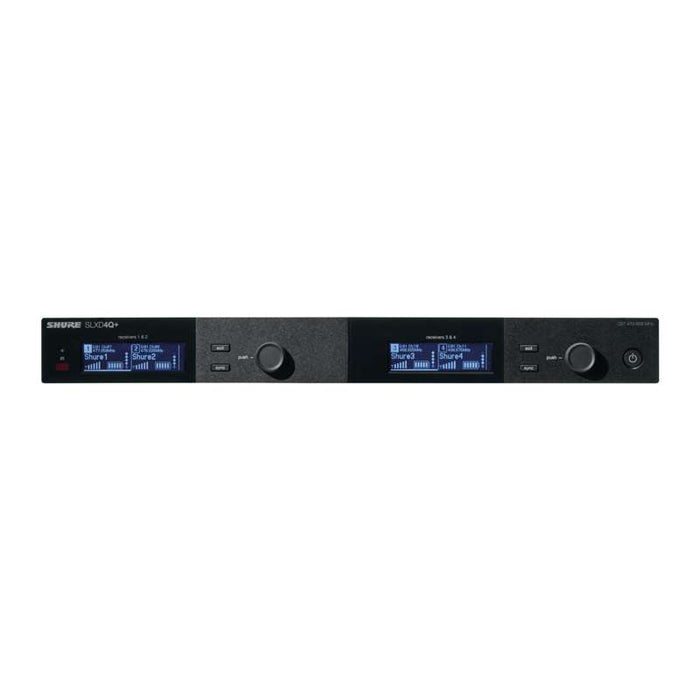

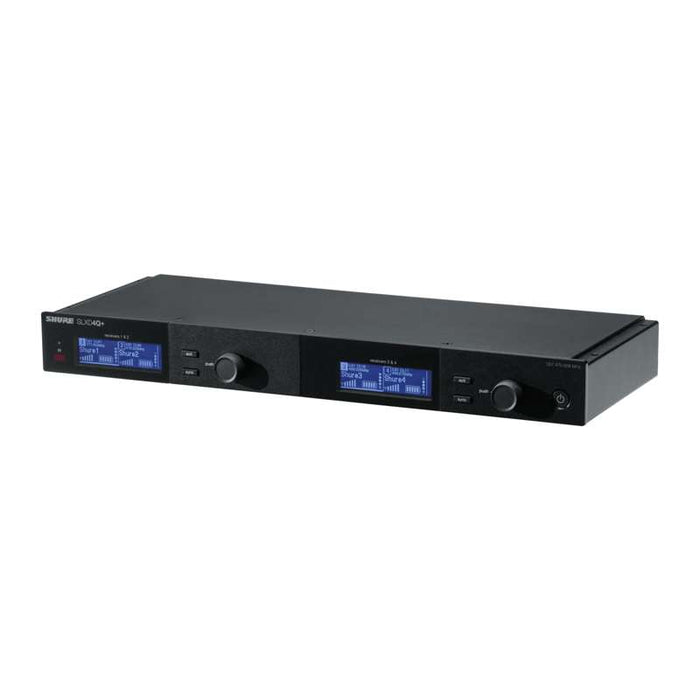

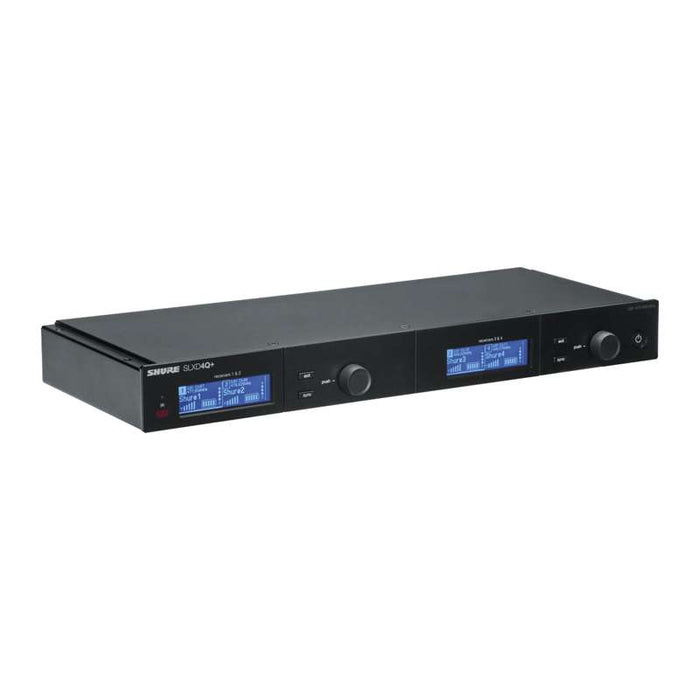

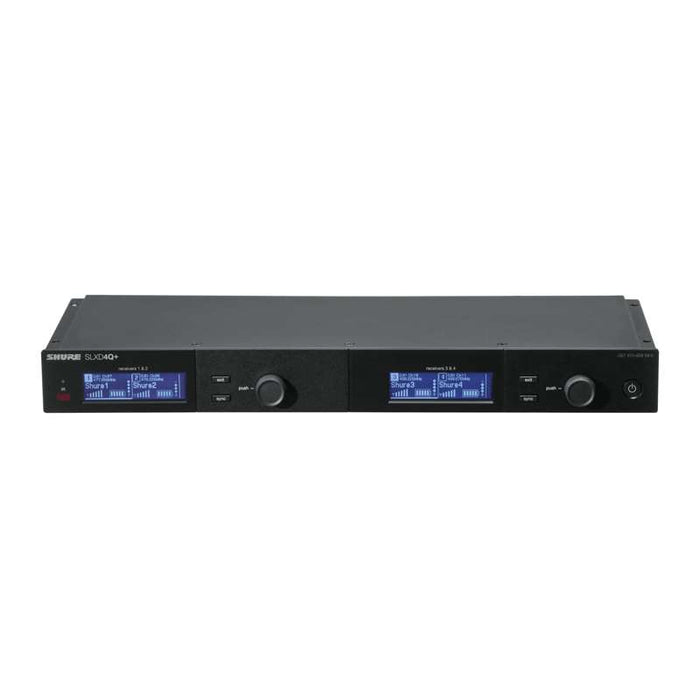

Shure SLXD4Q+ Digital Quad‑Channel Receiver – G57 Band

SLXD4Q+ - Quad Channel Receiver - Shure USA

The SLXD4Q+ Quad channel Receiver unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike, delivering wireless excellence in a space-saving format, wherever required. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink® Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

Features

• Four channels in one rack space
• Transparent 24-bit digital audio with 118 dB dynamic range
• Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage: Up to 11 simultaneous systems in 6 MHz TV bands Up to 14 simultaneous systems in 8 MHz TV bands
• Up to 11 simultaneous systems in 6 MHz TV bands
• Up to 14 simultaneous systems in 8 MHz TV bands
• Automatic Setup – once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
• With ShowLink® Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once an open frequency is identified Adjust power output level Lock and unlock transmitter controls Transmitter firmware updates
• Changing the transmitter frequency once an open frequency is identified
• Adjust power output level
• Lock and unlock transmitter controls
• Transmitter firmware updates
• Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
• Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occur
• Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind
• Audio Summing matches receiver output to available mixer channels (4, 3, 2, or 1)

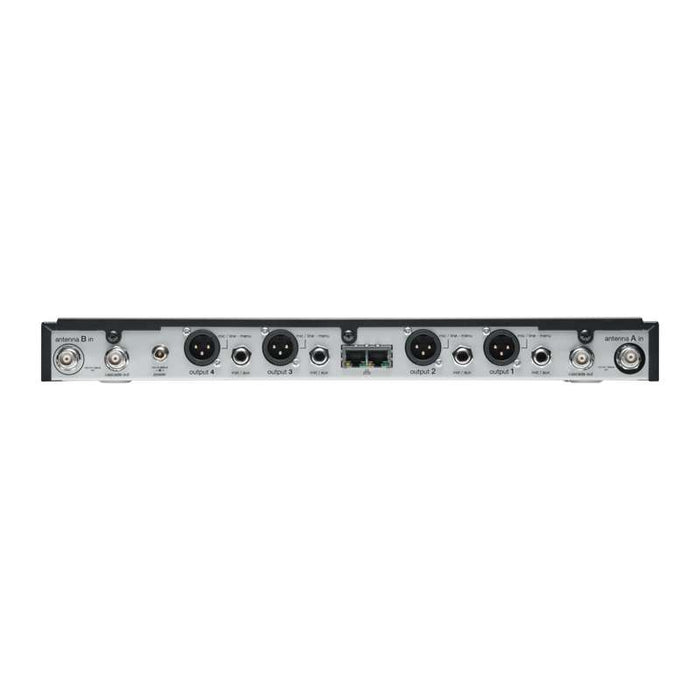

• 4 XLR and 4 1/4" outputs and 2 local ethernet connections
• RF Cascade creates an 12-channel system by linking three SLXD4Q+ together, no other accessories required
• Bias Voltage power supply management
• Digital predictive switching diversity
• Rugged metal construction
