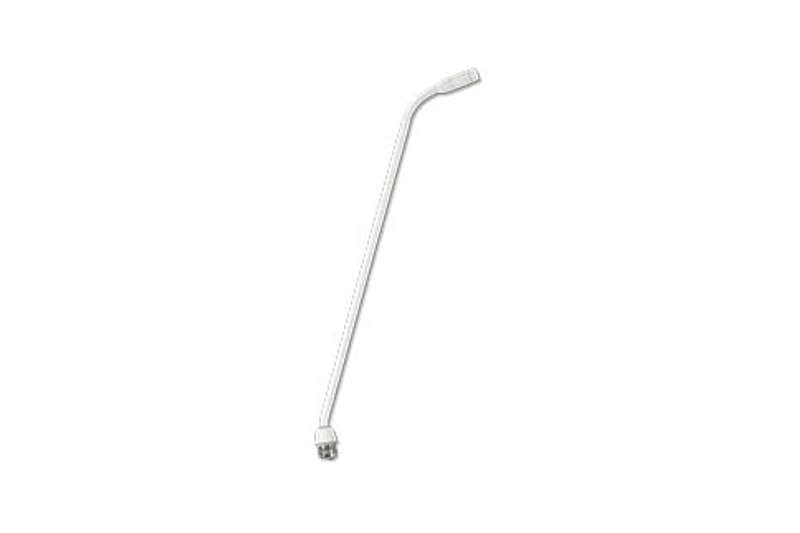

Shure MX415WRLPDF/N 15'' White Gooseneck Microphone

MX415WRLPDF/N: 15" White Dualflex Gooseneck Microphone, Light Ring

The MX415 surface mount version is a gooseneck microphone with a Bi-Color LED or light ring status display. It has a 15" gooseneck and is suitable for boardrooms and other sites where aesthetics are important.

FEATURES

• Gooseneck length: 15 inch / 38.1 cm
• Low profile, aesthetic design
• Wide dynamic range and smooth frequency response
• RF filtering with CommShield™ technology
• Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top
• Capsule options: None, Cardioid, Supercardioid
• Preamplifier Options
  • MX400DP Desktop Base for MX405, MX410 and MX415 models
  • MX890  Wireless Desktop Base for MX405, MX410 and MX415 models
  • MX400SMP Surface Mount Preamp for MX405, MX410 and MX415 models
  • MXW8: Wireless Desktop Base for MX405, MX410 and MX415 models
  • ULXD8:  Wireless Desktop Base for MX405, MX410 and MX415 models

• Type
  • Condenser (electret bias)
• Frequency Response
  • 50–17000 Hz
• Polar Pattern (at 1 kHz)
  • MX415/C: Cardioid
  • MX415/S: Supercardioid
• Output Impedance
  • EIA Rated at 150 Ω (170 Ω actual)
• Output Configuration
  • Active Balanced
• Sensitivity (at 1 kHz , open circuit voltage)
  • Cardioid: –35 dBV/Pa (18 mV)
  • Supercardioid: –34 dBV/Pa (21 mV)
  • 1 Pascal=94 dB SPL
• Maximum SPL (1 kHz at 1% THD, 1 kW load)
  • Cardioid: 121 dB
  • Supercardioid: 120 dB
• Equivalent Output Noise (A-weighted)
  • Cardioid: 28 dB SPL
  • Supercardioid: 27 dB SPL
• Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)
  • Cardioid: 66 dB
  • Supercardioid: 68 dB
• Dynamic Range (1 kΩ load at 1 kHz)
  • 93 dB
• Common Mode Rejection (10 Hz to 100 kHz)
  • 45 dB minimum
• Preamplifier Output Clipping Level (1% THD)
  • -8 dBV (0.4 V)
• Polarity
  • 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
  • 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
• Logic Connections
  • LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
  • LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
• Mute Switch Attenuation
  • -50 dB minimum
• Environmental Conditions
  • Operating Temperature: -18–57 °C (0–135 °F)
  • Storage Temperature: -29–74 °C (-20–165 °F)
  • Relative Humidity: 0–95%
• Power Requirements
  • 48–52 Vdc phantom, 8.0 mA
