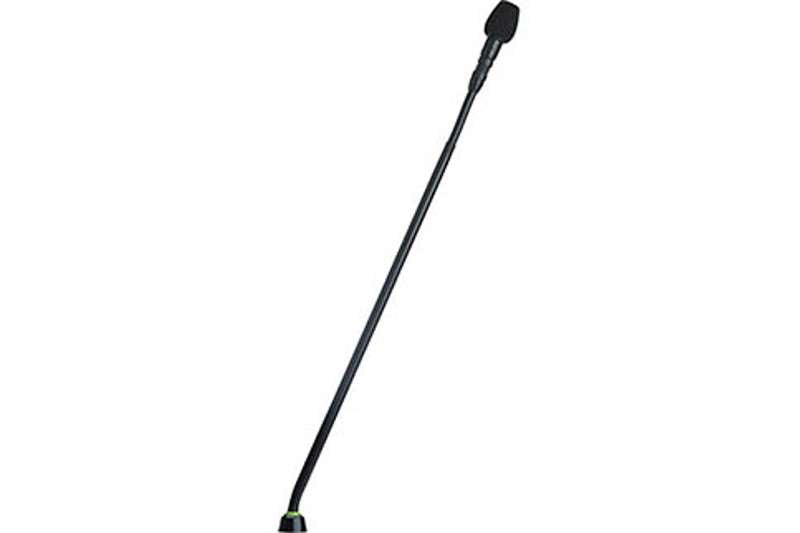

Shure MX415RLP/N: 15'' Gooseneck Microphone

Shure MX415RLP/N: 15'' Gooseneck Microphone

by Shure
SKU: SHUMX415RLPN

MSKU: MX415RLP/N

$196.00 - $196.00
$196.00
$196.00 - $196.00
$196.00
Call to Order

Free Shipping on ALL orders!

Specifications
Microphone style: Gooseneck
Request special pricing on this product

MX415RLP/N 15'' Miniature Gooseneck Microphone with red light ring on top and no capsule

The MX415 surface mount version is a gooseneck microphone with a Bi-Color LED or light ring status display. It has a 15" gooseneck and is suitable for boardrooms and other sites where aesthetics are important.

FEATURES

  • Gooseneck length: 15 inch / 38.1 cm
  • Low profile, aesthetic design
  • Wide dynamic range and smooth frequency response
  • RF filtering with CommShield™ technology
  • Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top
  • Capsule options: None, Cardioid, Supercardioid
  • Preamplifier Options
    • MX400DP Desktop Base for MX405, MX410 and MX415 models
    • MX890  Wireless Desktop Base for MX405, MX410 and MX415 models
    • MX400SMP Surface Mount Preamp for MX405, MX410 and MX415 models
    • MXW8: Wireless Desktop Base for MX405, MX410 and MX415 models
    • ULXD8:  Wireless Desktop Base for MX405, MX410 and MX415 models

ALSO IN THE BOX

  • 1 - RK513WS Snap-fit Foam Windscreen



Specs

Type
Condenser (electret bias)
Frequency Response
50 to 17000 Hz
Output Impedance
EIA Rated at 150 Ω (170 Ω actual)
Configuration
Output: Active balanced
Dynamic Range
93 dB (1 kΩ load at 1 kHz)
Common Mode Rejection
45 dB minimum (10 Hz to 100 kHz)
Polarity
3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Attenuation
Mute Switch: -50 dB minimum
Connections
LED IN: Active low (≤1.0 V); TTL compatible; Absolute maximum voltage: -0.7 V to 50 V
LOGIC OUT: Active low (≤1.0 V), sinks up to 20 mA; TTL compatible; Absolute maximum voltage: -0.7 V to 50 V (up to 50 V through 3 kΩ)
Power Requirements
48 to 52 VDC phantom, 8.0 mA
Operating Temperature
0 to 135°F (-18 to 57°C)
Storage Temperature
-20 to 165°F (-29 to 74°C)
Relative Humidity
0 to 95%
Weight
0.154 lb (0.069 kg)
Dimensions (L x W)
14.8 x 0.7 (37.6 x 1.9 cm)
Packaging Info
Package Weight
1.05 lb
Box Dimensions (LxWxH)
24.882 x 5.433 x 2.913"
