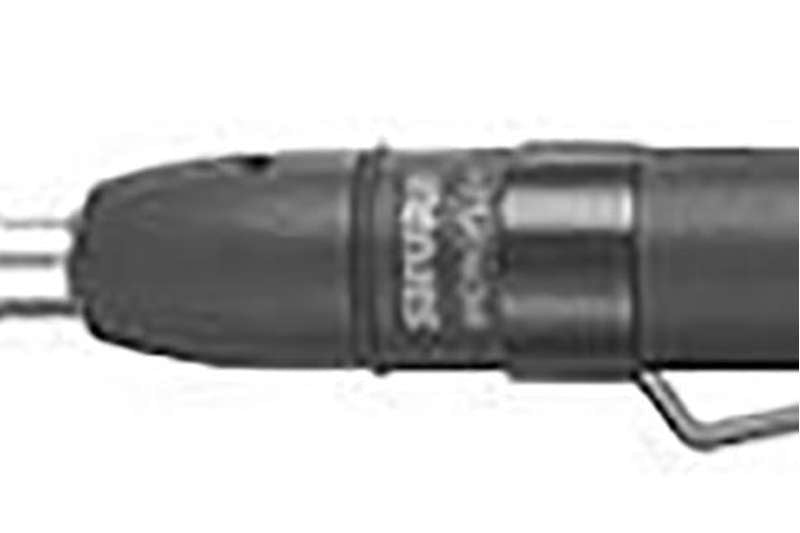

Shure MX180/N - Lavalier Microphone Housing
They're no bigger than a paper clip unless you consider the sound they produce. The Microflex Lavalier microphones bring a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, the Lavaliers use Shure's interchangeable condenser cartridges, available in cardioid, supercardioid or omnidirectional polar patterns. That means you can be sure there's a Microflex Lavalier that's right for your job. Each Microflex Lavalier includes all the accessories you need.
The Microflex Lavaliers are completely compatible with all Shure Wireless transmitters, and their high sensitivity and wide frequency response guarantee great sound with a minimum of RF interference or electromagnetic hum. Plus, each Microflex Lavalier features the same Shure quality sound that has become an industry standard. But don't take our word for it. Just listen, and you'll hear how the best solution just got better.
MX 180 N Lavalier Microphone Housing:
- Housing for 183 (Omnidirectional), 184 (Supercardiod), or 185 (Cardioid) Capsules
- Operates off of Phantom or Battery Power When Using the (Optional) MX1BP Pre-Amplifier
Specifications
| Transducer | Electret Bias Condenser This Kit Consists of a Lavalier Housing with NO Cartridge
|
| Polar Pattern | N/A, (Must Use One of the Following Cartridges: R183B - Omnidirectional, R184B - Supercardioid, or R185B - Cardioid) |
| Frequency Response | 50 Hz - 17 kHz |
| Dynamic Range (Typical) | 92.6 dB, (100 dB at 0 Gain) |
| Signal-to-Noise Ratio | MX183: 73.5 dB
MX184: 67.5 dB
MX185: 66.0 dB, (All Referenced at 94 dB SPL) |
| Maximum Input Sound Level | MX183: 116.7 dB
MX184: 122.7 dB
MX185: 124.2 dB, (All Settings +6 dB 0 Gain)
|
| Power Requirements | Phantom Power, (11 to 52v DC , 2.0 mA) |
| Output Impedance | 150 Ohms, (180 Ohms Actual) |
| Output Connectors | Switchcraft TA4F, (Mini 4 Pin Connector), (@ End of Microphone Housing Wire)
XLR-3M Type, (@ End of In-Line Pre-Amp) |
| Pad | None |
| Low Frequency Roll-Off | None |
| Applications | Speech, Lectures, Plays, Videography etc. |
| Dimensions | Microphone Housing: .85 x .46" (22 x 12mm) LxDiameter
In-Line Pre-Amp: 3.89 x .79" (99 x 20mm) LxDiameter
Cable: 4' (1.2m) Long (w/TA4F Connector) |
| Weight | .06 oz. (1.7 g) |
Packaging Info
| Package Weight | 0.91 lb |
| Box Dimensions (LxWxH) | 10 x 4.8 x 3.3" |
