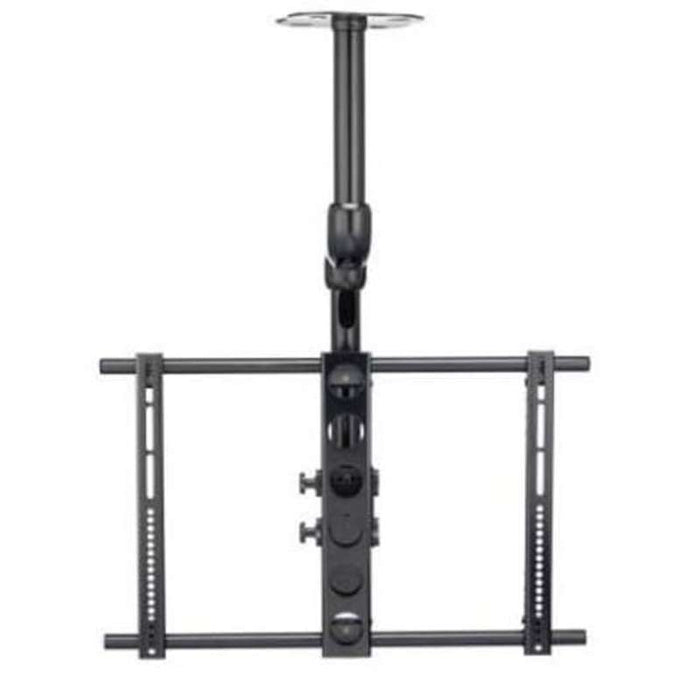

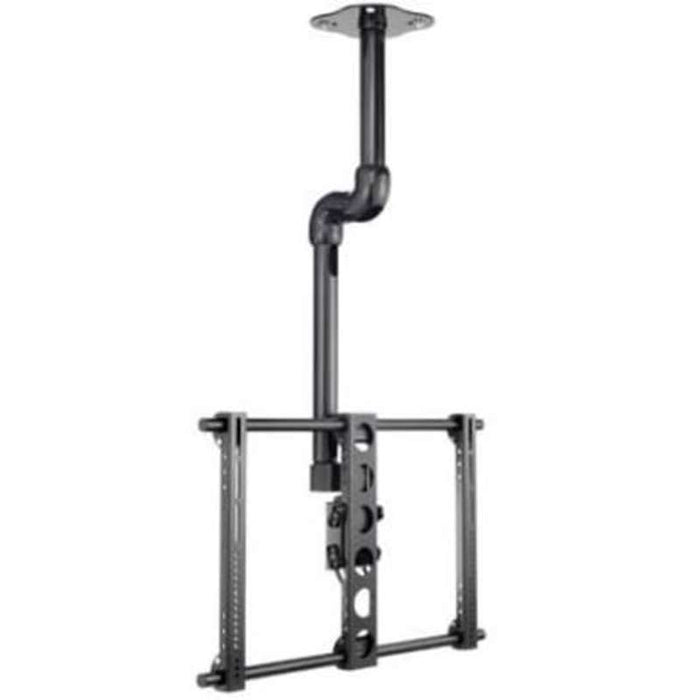

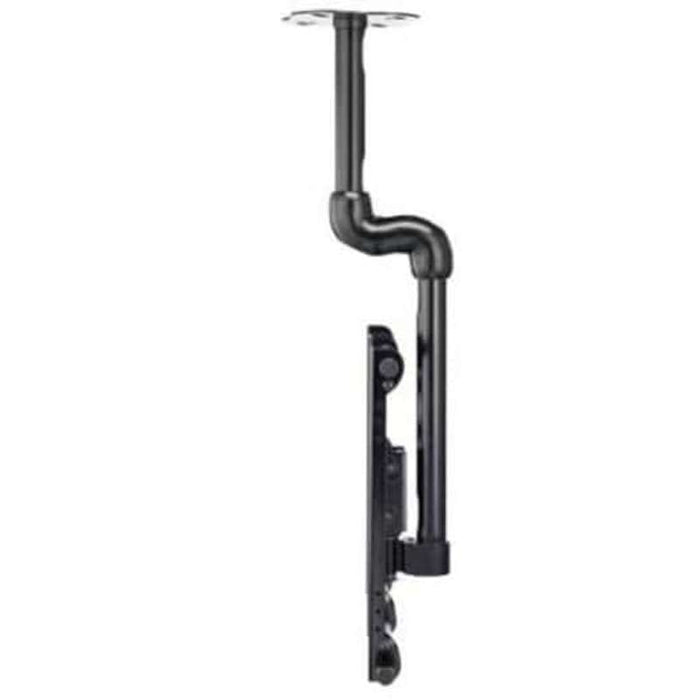

Tilt & Swivel Ceiling Mount for 37"–70" Flat‑Panel TVs (LC1A‑B1)

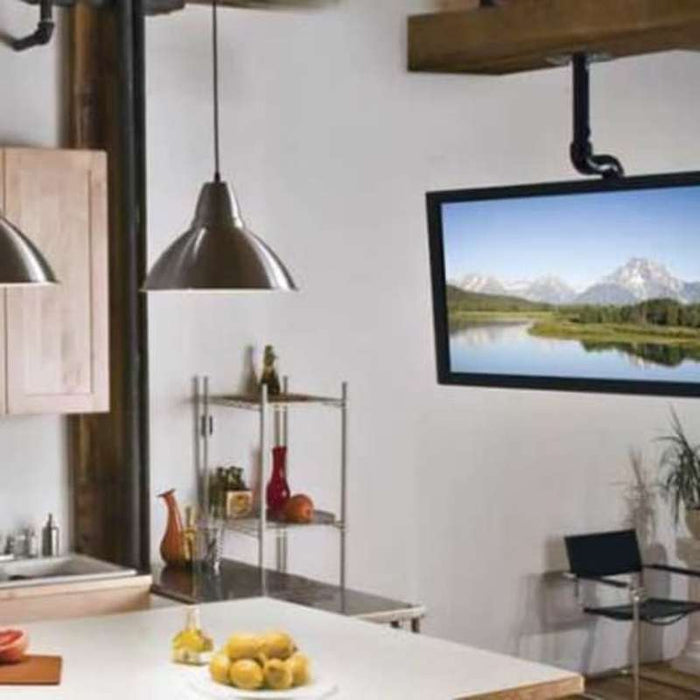

The SANUS LC1A is a premium tilt and swivel ceiling mount designed for 37"–70" flat‑panel TVs. It is an ideal solution for space‑saving corner installations or environments where wall mounting is not an option.
Featuring SANUS’ exclusive Virtual Axis® technology, the mount allows smooth, fingertip tilt adjustment. Once installed, the TV can rotate up to 6° to ensure perfect leveling. An integrated cable management channel neatly conceals and routes cables from the ceiling to the display for a clean, professional appearance.
Key Features
- Virtual Axis® technology enables smooth tilt with the touch of a finger
- Tilt and swivel functionality for optimal viewing angles
- TV rotates up to 6° after mounting for precise leveling
- Expandable universal TV brackets ensure a secure, custom fit
- Integrated cable management channel conceals unsightly cables
- Includes wood joist and solid surface ceiling adapters
- Two pipe lengths included for multiple installation configurations
- Hardware included for installation
- Safety tested and UL Certified
Dimensions & Measurements
-
Height: 46 in (116.8 cm)
-
Width: 29.5 in (74.9 cm)
-
TV Size Compatibility: 37"–70" (940–1778 mm)
-
Maximum TV Weight: 175 lbs (79.4 kg)
Shipping Information
-
Shipping Dimensions: 31" × 15" × 3.75" (787.4 × 381 × 95.3 mm)
-
Package Width: 30.25 in (76.8 cm)
-
Package Depth: 14.5 in (36.8 cm)
-
Package Height: 3.5 in (8.9 cm)
Characteristics & Specifications
-
Application: Ceiling
-
Color: Black
-
Adjustability: Tilt, Swivel
-
Tilt Range: +15° / −5°
-
Swivel Range: +55° / −55°
-
Universal Mounting: Yes
Installation Tools Required
- 1/2" Socket Wrench
- 3/16" Drill Bit
- Awl
- Electric Drill
- Phillips Head Screwdriver
- Stud Finder
- Wrench
- Roll (measuring)
Additional Information
-
VESA Range: 165 × 25 to 673 × 444
-
UPC: 793795363305
