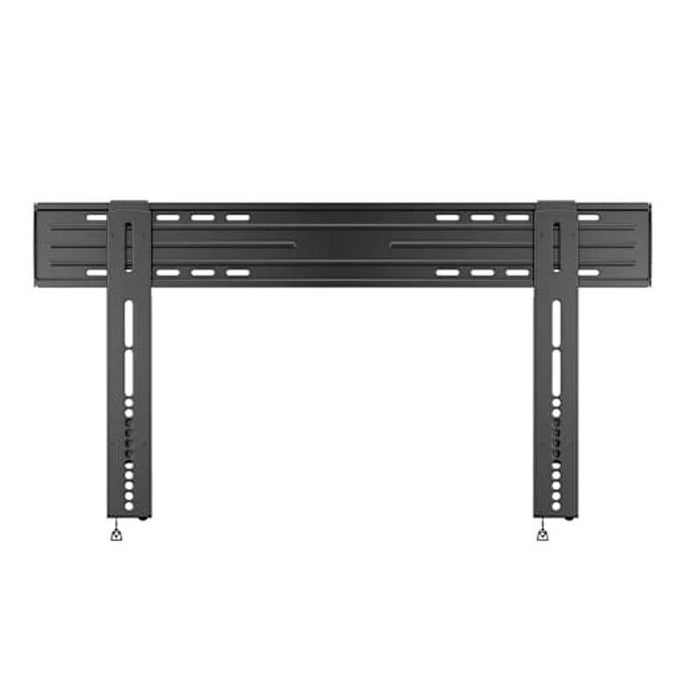

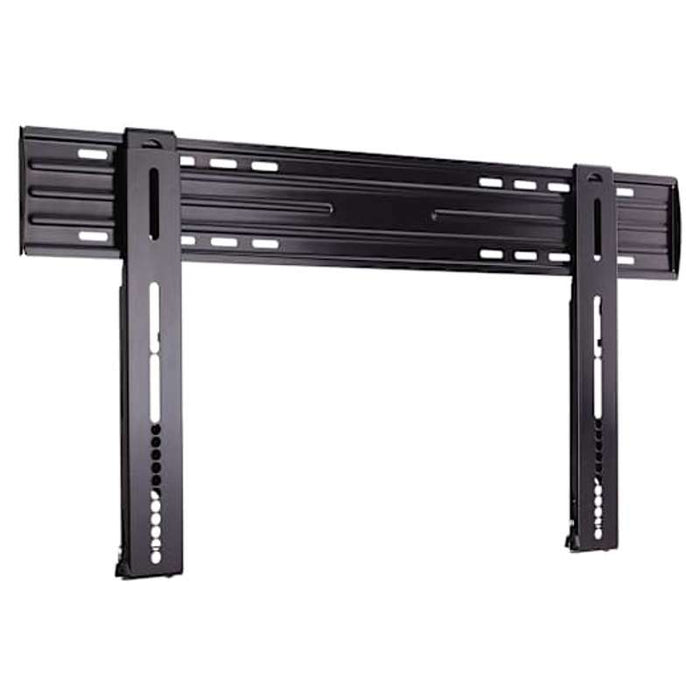

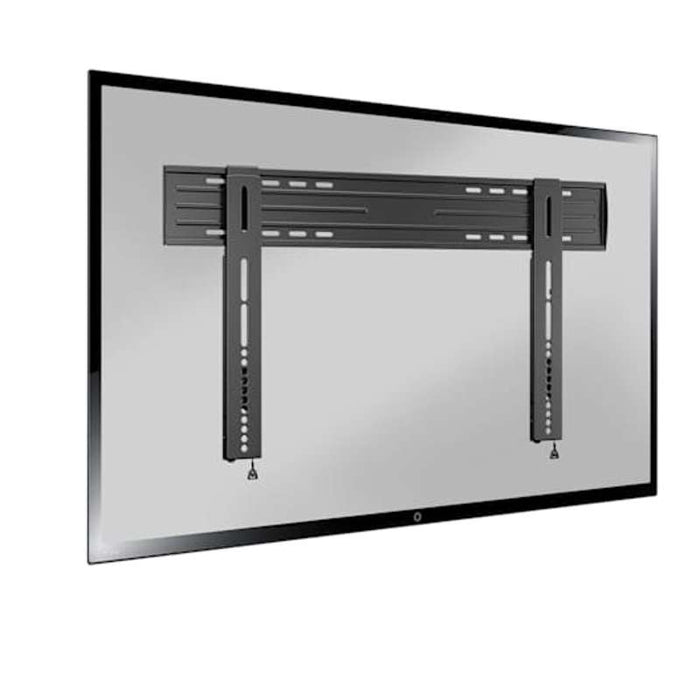

HDPro® Super Slim Fixed‑Position Wall Mount for 51"–80" Flat‑Panel TVs (LL11‑B1)
The SANUS LL11 HDPro® Super Slim Wall Mount redefines low‑profile mounting by positioning ultra‑thin LCD, plasma, and LED TVs just 0.55" (1.4 cm) from the wall. Its innovative design highlights the sleek appearance of modern displays while offering installer‑friendly features rarely found in fixed‑position mounts.
Exclusive ClickStand® technology holds the bottom of the TV away from the wall, providing easy cable access without removing the display. Hidden quick‑release tabs allow the TV to be unlocked from the wall plate with a simple pull, while the ProSet® micro‑adjustment feature enables post‑installation height and leveling adjustments for perfectly aligned results.
Key Features

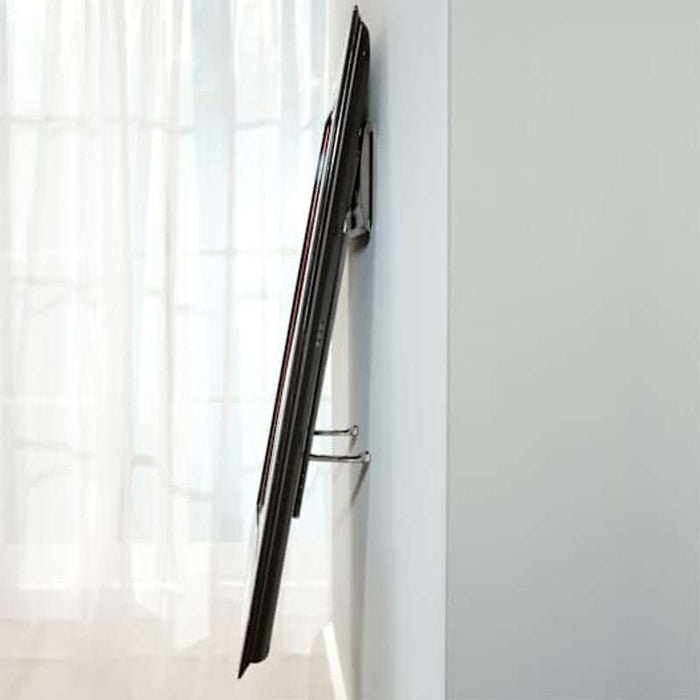

- Ultra‑slim profile positions the TV just 0.55" (1.4 cm) from the wall
- ClickStand® technology provides easy rear‑panel cable access
- Hidden quick‑release tabs allow fast TV removal when needed
- ProSet® micro‑adjustments enable precise leveling after installation
- Lateral shift allows side‑to‑side TV positioning, even with off‑center studs
- Expandable universal TV brackets ensure a secure and custom fit
- Wall plate supports 16" and 24" stud spacing
- HDPro® product designed specifically for professional custom installers
- Safety tested and UL Certified
Dimensions & Measurements
-
Distance from Wall: 3.1 in (7.9 cm)
-
Height: 18.16 in (46.1 cm)
-
Width: 35.3 in (89.7 cm)
-
Typical Screen Size: 40"–85" (102–216 cm)
-
Maximum TV Weight: 150 lbs (68 kg)
Shipping Information
-
Shipping Dimensions: 38.35" × 7.11" × 1.92" (974.1 × 180.6 × 48.8 mm)
-
Shipping Weight: 10.36 lbs (4.7 kg)
-
Package Width: 37.5 in (95.3 cm)
-
Package Depth: 6.9 in (17.5 cm)
-
Package Height: 1.8 in (4.6 cm)
Characteristics & Specifications
-
Application: Wall
-
Adjustability: Fixed, Lateral Shift
-
Universal Mounting: Yes
-
Color: Black
Installation Tools Required
- 3/16" Drill Bit
- 3/8" Masonry Bit (Concrete Installations)
- 5/16" Masonry Bit (Concrete Installations)
- Awl
- Electric Drill
- Hammer
- Level
- Pencil
- Phillips Head Screwdriver
- Stud Finder
- Tape Measure
Additional Information
-
Awards: CE Pro Best Award 2009
-
VESA Range: 65 × 25 to 825 × 400
-
UPC: 793795520357
