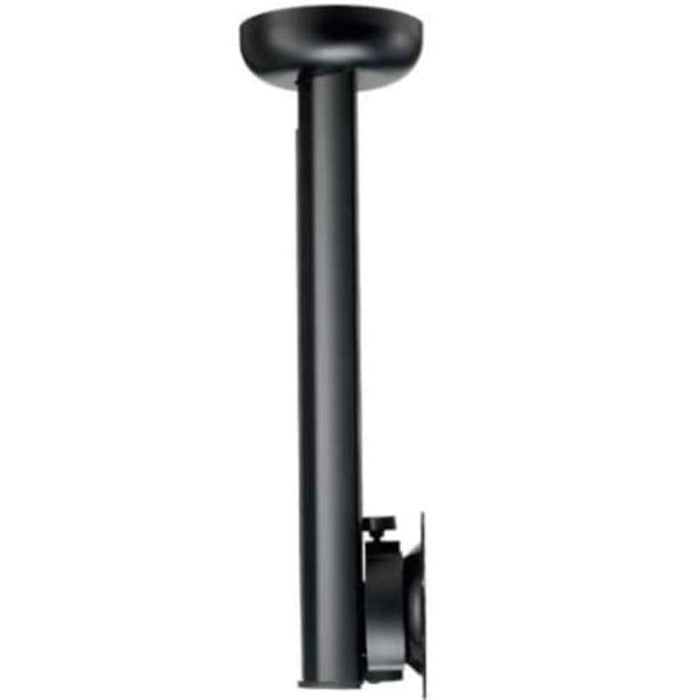

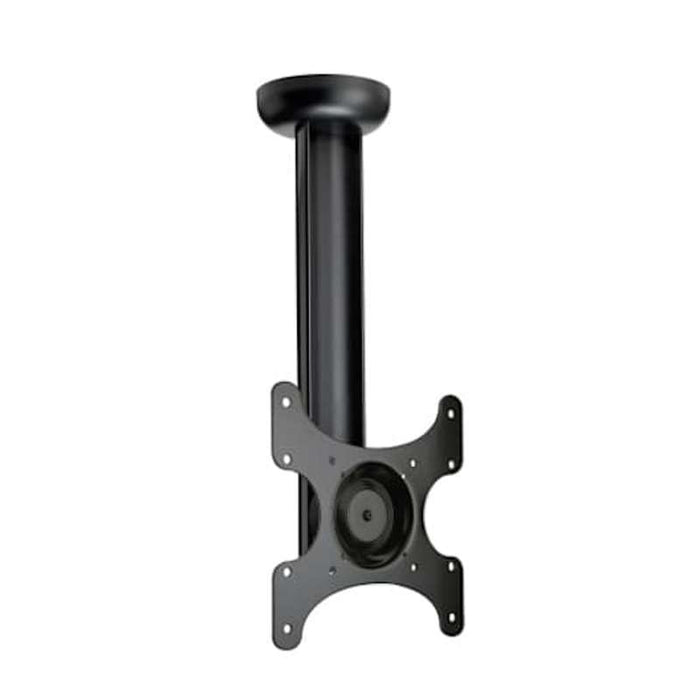

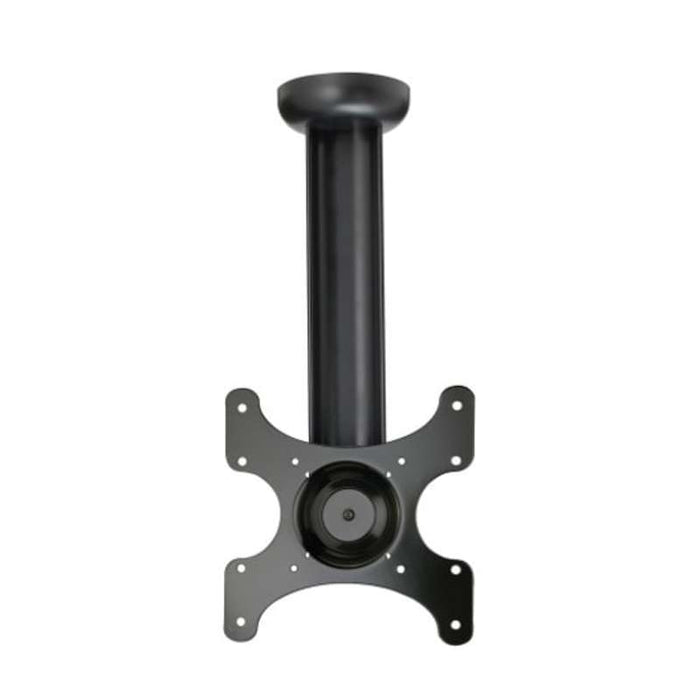

Full‑Motion Ceiling Mount for 23"–40" Flat‑Panel TVs (MC1A‑B1)
The SANUS MC1A is a full‑motion ceiling mount designed for 23"–40" flat‑panel TVs, making it an ideal solution for corner installations or environments where wall mounting is not possible. Its versatile design delivers smooth, tool‑free adjustments while maintaining a clean, professional appearance.
Featuring SANUS’ advanced Virtual Axis 3D® technology, the mount allows fluid tilt and swivel movement in every direction with minimal effort. Quick Connect® keyholes on the faceplate simplify installation by allowing the TV to slide easily into place, while integrated cable management keeps wiring concealed and organized.
Key Features
- Full‑motion ceiling mount with tilt, swivel, and roll adjustments
- Virtual Axis 3D® technology enables smooth, tool‑free movement
- Quick Connect® keyholes allow fast and accurate bracket alignment
- Adjustable height for precise TV positioning
- Integrated cable management conceals and organizes cables

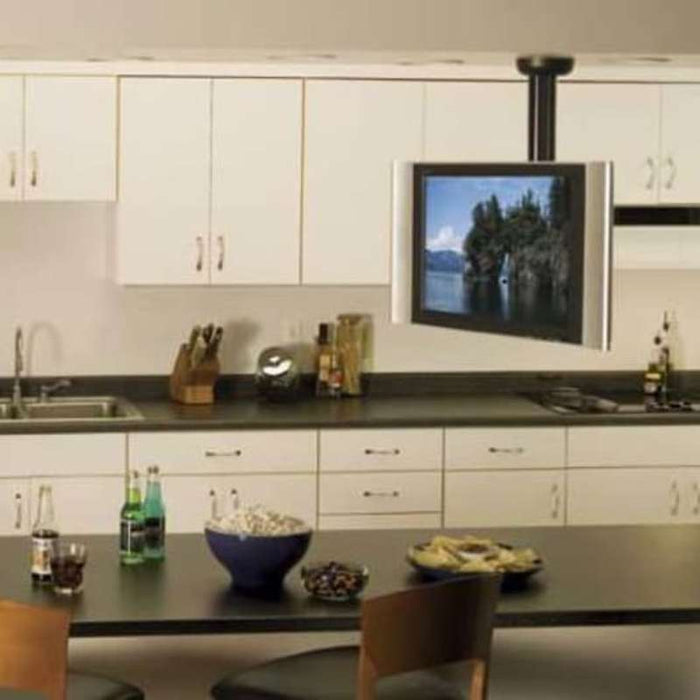

- Ideal for corner placement or areas where wall mounting is not an option
- Includes two VESA‑compatible TV brackets for broad compatibility
- Safety tested and UL Certified
Dimensions & Measurements
-
Height: 21 in (53.3 cm)
-
Width: 9.25 in (23.5 cm)
-
Typical Screen Size: 23"–40" (58–101 cm)
-
Maximum TV Weight: 70 lbs (31.8 kg)
Shipping Information
-
Shipping Dimensions: 21.5" × 11" × 5.5" (546.1 × 279.4 × 139.7 mm)
-
Shipping Weight: 8 lbs (3.6 kg)
-
Package Width: 21.25 in (54 cm)
-
Package Depth: 11.25 in (28.6 cm)
-
Package Height: 5.5 in (14 cm)
Characteristics & Specifications
-
Application: Ceiling
-
Adjustability: Tilt, Swivel, Roll
-
Swivel Range: +180° / −180°
-
Tilt Range: +15° / −15°
-
Color: Black
-
Universal Mounting: No
VESA Mounting Patterns
- 75 × 75
- 100 × 100
- 200 × 100
- 200 × 200
Installation Tools Required
- 1/2" Socket Wrench
- 3/16" Drill Bit
- 7/32" Drill Bit
- Electric Drill
- Pencil
- Phillips Head Screwdriver
- Stud Finder
- Roll (measuring)
Additional Information
-
Awards: Custom Retailer 2007 Excite Award
-
Certifications: UL Listed
-
UPC: 793795362605
