SPA Series 2-Channel 60W Power Amplifier
Key Features:
- Delivers 2 x 60 W into 4 Ω / 8 Ω or 1 x 200 W in bridged mode (70V / 100V direct drive)
- Energy Star qualified design featuring automatic auto-standby power savings when idle
- Convection-cooled Class-D topology provides quiet, fanless operation in noise-sensitive rooms

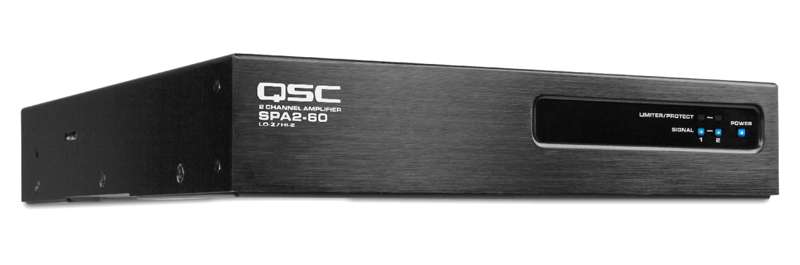

- Compact 1U half-rack chassis with included rack-mounting hardware

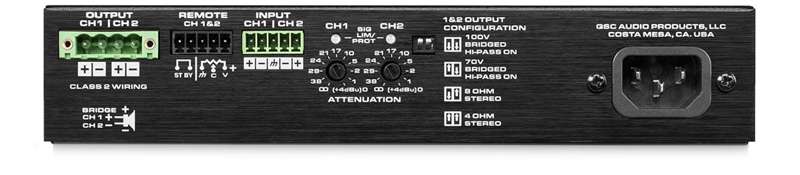

- Euroblock input and output connectors for clean, secure speaker wiring installation
- Remote standby and mute control capabilities via rear-panel GPI contact closure
- Defeatable high-pass filter per channel when operating in 70V / 100V bridged configurations
- Integrated thermal, short-circuit, and over-current protection circuitry
Flexible Power & High-Impedance Bridging
The SPA2-60 accommodates diverse speaker layouts by supporting low-impedance 4-ohm and 8-ohm stereo loads or bridging both channels to drive a 200-watt 70V or 100V constant-voltage speaker line. Its class-D amplifier design provides clean acoustic output while maintaining high energy efficiency.
Quiet Operation & Energy Efficiency
Featuring a fanless convection cooling chassis, the amplifier operates silently, making it ideal for installation in meeting rooms, under conference tables, or inside acoustic credenzas. Automatic auto-standby circuitry significantly decreases power consumption during extended periods of inactivity.
