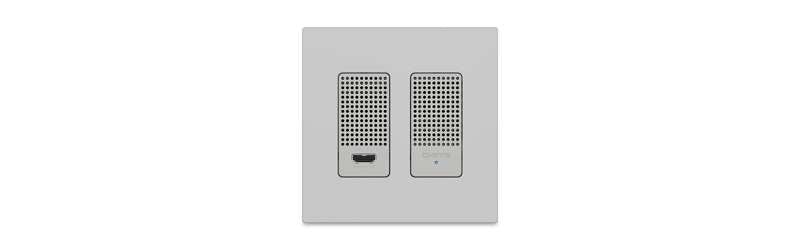

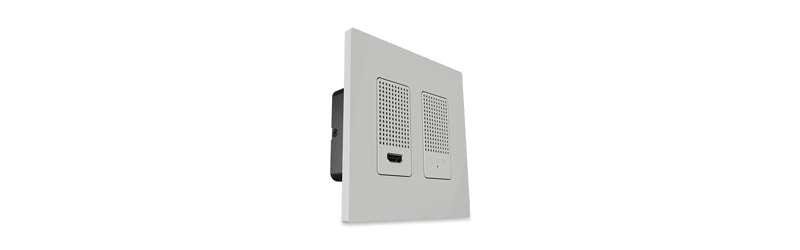

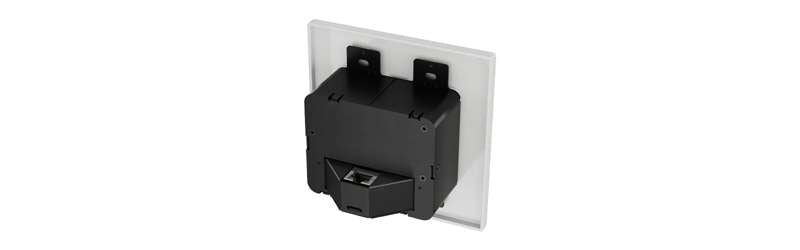

Q-SYS Single-Channel HDMI In-Wall Network Video Encoder, White
Key Features:
- Software-configurable mode operation as either a multi-input HDMI video encoder or multi-output decoder
- Supports up to 4K60 4:4:4 video resolution over standard 1GbE network infrastructure
- Q-SYS Shift technology dynamically manages network bandwidth based on video content activity
- Integrated USB bridging endpoint for soft-codec conferencing (Zoom, Microsoft Teams, Google Meet)
- Includes 3 HDMI inputs and 2 HDMI outputs for localized switching and multi-stream decoding
- Power over Ethernet Plus (PoE+) support simplifies power and network cable installation
- Native Q-SYS audio embedding, de-embedding, and routable network audio channels
- Centralized configuration, management, and control via Q-SYS Designer Software
Software-Defined Encoder/Decoder Flexibility
The NV-32-H redefines AV-over-IP deployment flexibility by allowing each hardware unit to be designated as an encoder or decoder within Q-SYS Designer Software. This software-driven architecture eliminates the need for dedicated transmitter and receiver hardware, reducing inventory complexity and system design overhead.
Optimized 4K Video Streaming & Conference Bridging
Utilizing Q-SYS Shift video compression, the endpoint delivers low-latency 4K60 video while dynamically adjusting bitrates to conserve bandwidth over enterprise networks. Built-in USB bridging allows meeting room displays, cameras, and audio channels to connect directly to user laptops for unified collaboration sessions.
