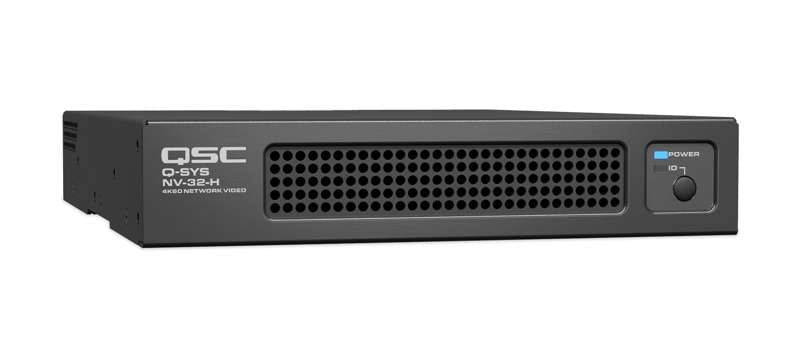

NV-32-H Core Capable Network Video Endpoint
Key Features:
- Software-definable as either an encoder or decoder within the Q-SYS ecosystem
- Supports up to 4K60 4:4:4 resolution for visually lossless video distribution
- Features 3 HDMI inputs and 2 HDMI outputs for versatile local switching
- Integrated Shift™ adaptive video compression reduces bandwidth without sacrificing quality
- Built-in USB bridging for easy connection of room audio and video to soft-codec apps
- Single-cable solution for audio, video, and control over standard 1GbE infrastructure
- Includes 8x8 GPIO and RS-232 ports for integrated third-party device control
- Powered via 12V DC power supply or PoE++ (802.3bt) for flexible installation
High-Performance Video Distribution
The NV-32-H is engineered to deliver high-quality video across a standard IT network with ultra-low latency. Utilizing Q-SYS Shift™ technology, the endpoint dynamically adjusts its bit rate to provide the best possible image quality while significantly reducing the load on the network compared to other 4K distribution methods. This makes it an ideal choice for organizations that need to scale video across multiple rooms using existing network hardware.
Native Q-SYS Integration
As a native peripheral of the Q-SYS platform, the NV-32-H eliminates the need for complex programming and third-party control drivers. Its "core-to-endpoint" design allows for seamless drag-and-drop routing of video and audio streams. This tight integration also enables advanced features like "Preview Streams," which allow users to see a low-bandwidth version of the video source on a Q-SYS touch screen before switching it to the main display.
Versatile Connectivity and Bridging
Beyond just being a network video box, the NV-32-H acts as a comprehensive integration hub. With three HDMI inputs, it can manage multiple local sources like PCs, media players, and document cameras. Its integrated USB bridging capability allows it to act as a high-quality interface for web conferencing, sending professional-grade audio and video directly to a user's laptop via a single USB connection. Its compact half-rack width allows for efficient mounting in lecterns, credenzas, or behind displays.
