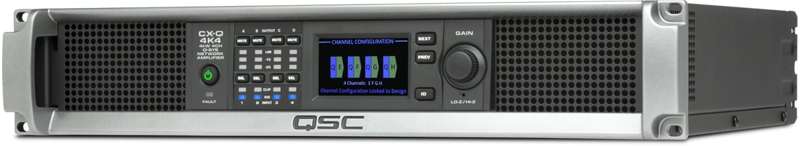

CX-Q Series 4-Channel 4000W Network Processing Amplifier
Key Features:
- Four independent output channels providing up to 4,000 W total power capacity
- Supports Low-Z (4/8 Ohm) as well as direct 70V and 100V distributed speaker lines
- FlexAmp technology allows asymmetrical power distribution across output channels
- Flexible Amplifier Summing Technology (FAST) enables channel bridging and paralleling

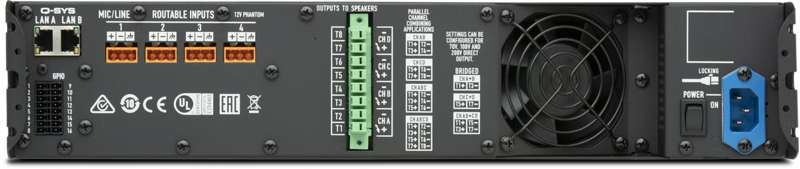

- Four routable mic/line analog inputs serve as local network audio on-ramps into Q-SYS
- Eight configurable bi-directional GPIO connections for third-party system control integration
- PowerLight universal switchmode power supply with active Power Factor Correction (PFC)
- Native Q-LAN network audio routing, telemetry monitoring, and processing managed via Q-SYS
Asymmetric Power Allocation & Hybrid Topology
Featuring FlexAmp and FAST technology, the CX-Q 4K4 allows system designers to combine or route power unevenly across channels rather than locking each channel to a fixed wattage. This flexibility makes it easy to drive high-power subwoofers alongside smaller low-power fill speakers or constant-voltage lines from a single amplifier chassis.
Seamless Q-SYS Network Ecosystem Integration
With native Q-LAN network audio routing, the amplifier receives digital audio signals directly over the network while providing full telemetry control, temperature monitoring, and fault management. Built-in Intrinsic Correction processing applies tailored crossover and equalization filters to connected QSC loudspeakers for optimal acoustic response.
