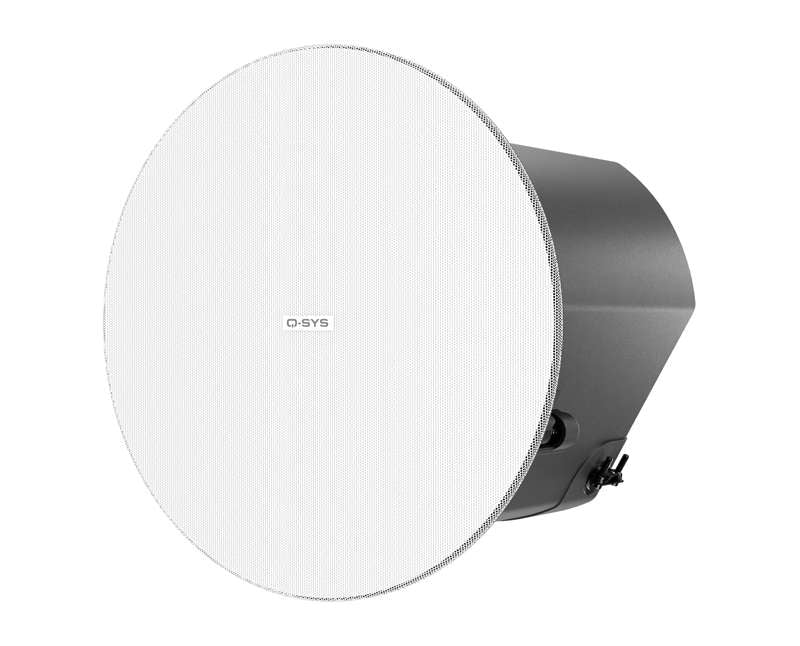

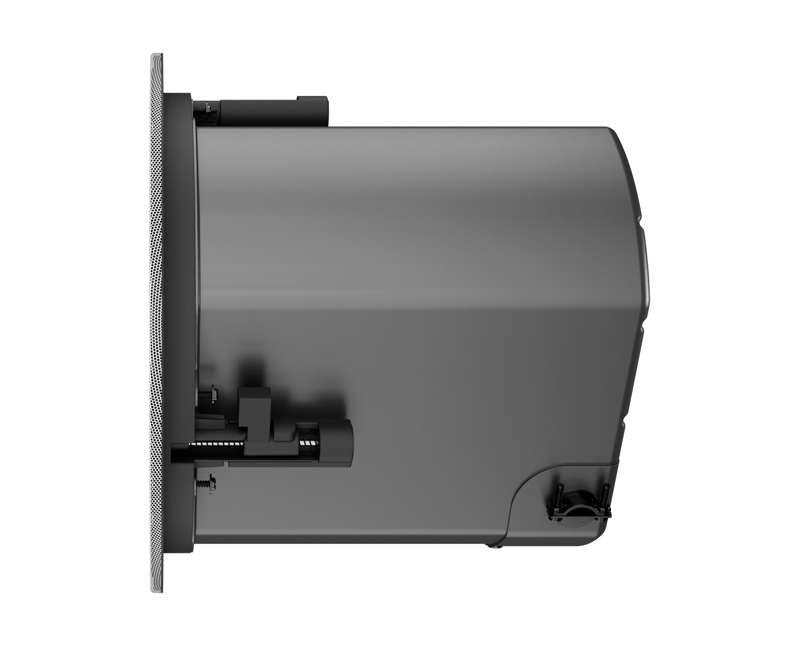

AcousticDesign 6.5-Inch Ceiling Loudspeaker, Pair, White
Key Features:
- 6.5-inch weather-treated paper cone woofer paired with a 1-inch silk dome tweeter
- Directivity Matched Transition (DMT) waveguide ensures consistent off-axis frequency response
- Multi-tap 70V/100V transformer with low-saturation design and 8-ohm direct bypass
- Zero-bezel, magnetically attached fine-mesh steel grille in white for a clean aesthetic
- Full-depth ported enclosure designed for optimal low-frequency extension
- Removable 4-pole Euroblock connector with pass-through capability for easy daisy-chaining
- Intrinsic Correction voicing available via Q-SYS OS and QSC processing platforms
- UL1480 and UL2043 certified for air-handling spaces and life-safety compliance
Consistent Room Coverage & DMT Waveguide
The AD-C6T-ZB-WH incorporates Directivity Matched Transition (DMT) technology to match the HF waveguide dispersion to the LF transducer at the crossover frequency. This design eliminates crossover dead zones and ensures smooth, intelligible audio delivery across the entire listening area.
Ecosystem Tuning & Easy Installation
When used with Q-SYS processors or QSC amplifiers, advanced Intrinsic Correction voicing presets optimize frequency response and power handling. Blind-mount dog-ear tabs and a zero-bezel magnetic grille simplify overhead installation and maintenance in corporate, retail, and hospitality environments.
