Use case:
Business,education,golf simulation,healthcare,house of worship
Zoom range:
1.6x optical zoom

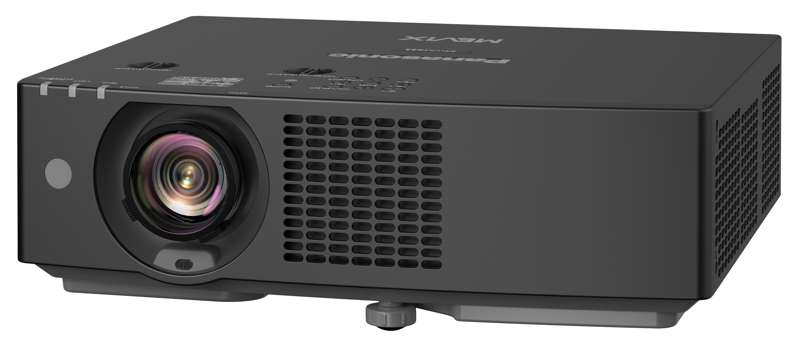

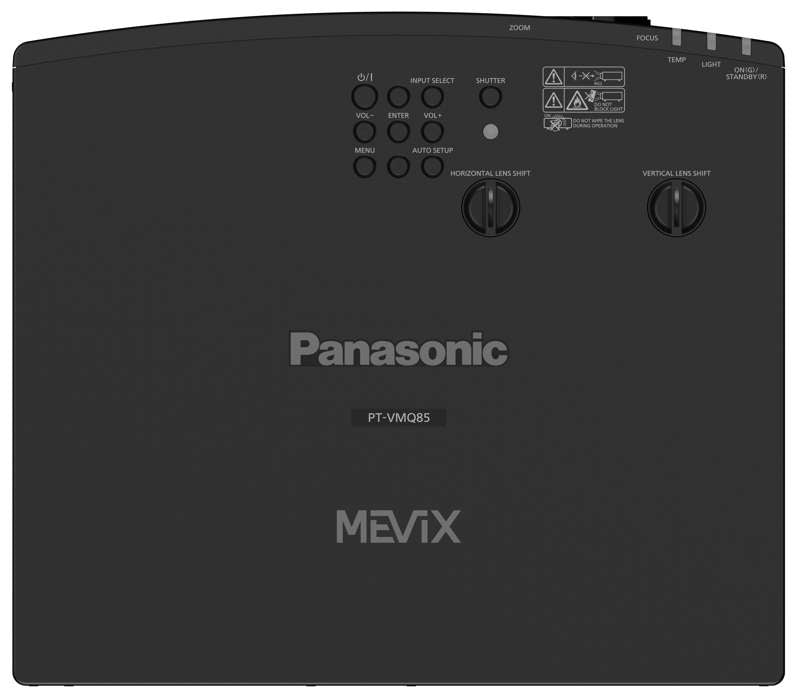

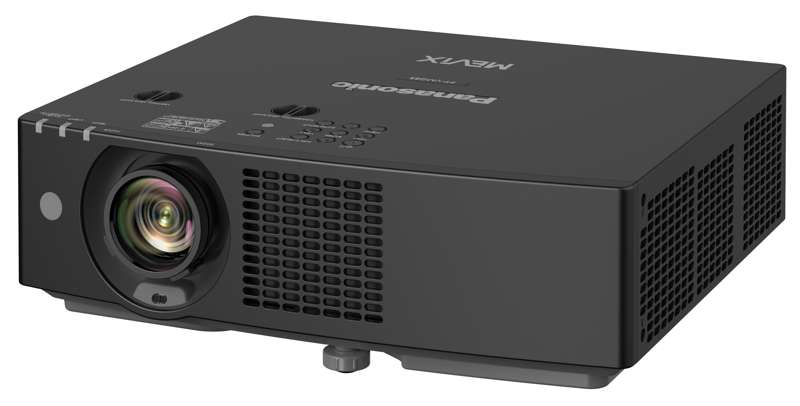

Pre-Order Panasonic PT-VMQ85 4K 3LCD Laser Projector, Black
(Shipping to begin in August)
The Panasonic PT-VMQ85 redefines portable projection by combining true 4K-class image reproduction,high brightness, and flexible installation in one of the smallest and lightest LCD laser projectorplatforms in its category. Featuring Panasonic's innovative Quad Pixel Drive technology, up to8,000 lumens of brightness, and advanced installation tools, the PT-VMQ85 is designed forcorporate environments, higher education, museums, simulation applications, entertainment venues,and premium presentation spaces.
Compact and lightweight chassis for easy transport and installation
1.6x optical zoom lens with wide lens shift capabilities
Supports 21:9 widescreen content and video conferencing layouts
4K DIGITAL LINK and dual HDMI connectivity
Advanced geometric correction and screen adjustment tools
Built-in Angle Monitor for one-person installation
Up to 20,000 hours maintenance-free laser operation
Eco-conscious design with recycled materials and energy-saving features
Bright, High-Contrast Detail in Any Space
The PT-VMQ85 delivers exceptional image clarity with Panasonic's first LCD implementation ofQuad Pixel Drive 2-axis pixel-shifting technology. By shifting pixels both vertically andhorizontally, the projector increases on-screen pixel density for smoother, sharper visuals andenhanced detail reproduction.
This advanced imaging system is ideal for technical presentations, engineering drawings,digital artwork, museum exhibits, simulation environments, educational applications, and othercontent where image precision matters.
Quad Pixel Drive 2-Axis Pixel-Shifting Technology
Conventional pixel-shifting systems operate along a single axis. Quad Pixel Drive advances imagequality by shifting pixels on both horizontal and vertical axes, reducing visible pixel structurewhile enhancing image sharpness and detail.
Up to 8,000 Lumens of Brightness
Designed to perform in bright conference rooms, classrooms, museums, and collaborative spaces,the PT-VMQ85 delivers up to 8,000 lumens of brightness from a remarkably compact footprint.The result is vibrant, impactful projection with excellent visibility even under ambient lighting.
5,000,000:1 Dynamic Contrast Ratio
Panasonic's Dynamic Contrast technology continuously analyzes content frame by frame and adjustslaser output to optimize image performance. Deep blacks, brighter whites, enhanced shadow detail,and improved depth create a more immersive viewing experience.
Daylight View Basic
A built-in ambient light sensor automatically adjusts image characteristics including sharpness,contrast, brightness, and color reproduction to maintain visibility in changing lighting conditions.
Vivid Green Mode for Sports Simulation
Specially optimized for golf and sports simulators, Vivid Green Mode enhances green tones andmidtone brightness to create more natural turf appearance and a more immersive simulation experience.
Native Support for 21:9 Widescreen Content
Display modern widescreen content in its original format, including 21:9 video conferencing layouts,training content, and collaborative applications. This helps create more natural participantengagement in hybrid meeting environments.
Flexible Installation for Any Environment
The PT-VMQ85 is engineered for simplified setup and deployment. Its compact chassis, extensive lensadjustment capabilities, and advanced correction tools allow installers to achieve optimal imagealignment with less effort and greater flexibility.
1.6x Optical Zoom and Wide Lens Shift
A flexible 1.6x optical zoom lens and wide vertical and horizontal lens shift capabilities providegreater freedom when positioning the projector. Installers can avoid structural obstacles whilemaintaining image quality and alignment.
Digital Zoom Extender
Digital Zoom Extender allows organizations to reuse existing ceiling mounts and installationpositions, reducing upgrade costs and simplifying projector replacement projects.
Optimized for Golf Simulation
The PT-VMQ85 supports screen sizes up to 300 inches and is specifically suited for golf simulatorinstallations. It can create large images within limited spaces commonly found in commercialsimulation bays.
Angle Monitor for One-Person Setup
A built-in sensor continuously measures pitch and roll angles and displays the information directlyon screen, enabling technicians to make precise adjustments without a second installer.
Advanced Screen Adjustment Tools
An enhanced screen adjustment suite allows installers to fine-tune image geometry using the remotecontrol without requiring a PC.
Grid-Based Point and Line Adjustment
Correct image distortion using a customizable grid system ranging from 2 × 2 to 17 × 13 points,allowing precise alignment of specific image areas.
Curved Screen Optimization
Enhanced arc correction and independent vertical/horizontal balance controls enable accurate imagemapping on curved surfaces, ideal for simulation, museum, and experiential installations.
Adjust individual image corners independently and save configurations for rapid deployment inmulti-room or recurring presentation environments.
Maintain Aspect Ratio
Maintain proportional image scaling during adjustment to avoid distortion and ensure natural,professional-looking content presentation.
Connectivity and Integration
4K DIGITAL LINK
4K DIGITAL LINK technology transmits video, audio, and control signals over a single CAT5e cable,simplifying installation while reducing infrastructure complexity.
Extensive Control Platform Support
The PT-VMQ85 supports major AV and IT management platforms including:
PJLink™ Class 2
AMX® Device Discovery
Crestron Connected® V2
Crestron XiO Cloud®
Extron XTP®
IPv4 and IPv6 networking
Data Cloning Function
Deploy multiple projectors quickly by copying settings and adjustment data between identicalprojector models using either LAN or USB memory devices.

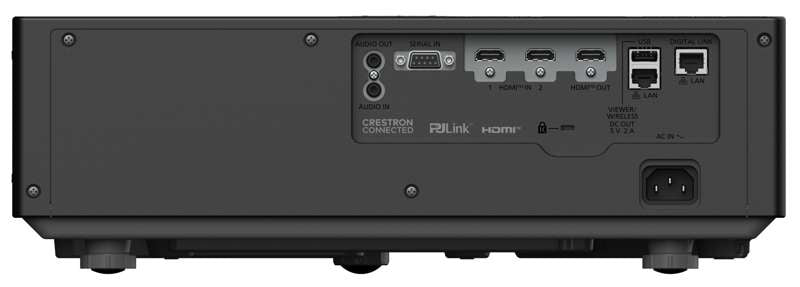

HDMI Input and Output
Dual HDMI inputs support CEC-compatible source devices for simplified operation. An HDMI outputallows convenient signal distribution in larger AV systems and multi-display environments.
Web API Integration
Open Web API support enables integration with third-party management, automation, and monitoringplatforms for centralized projector administration and workflow automation.
Wireless Collaboration
Compatible with Panasonic PressIT
Pair the projector with Panasonic's optional PressIT Wireless Presentation System to enablewireless screen sharing and seamless presenter switching. PressIT helps streamline meetings,training sessions, and collaborative workspaces.
Enhanced Protection and Monitoring
Lens Block Detection
An integrated infrared sensor detects obstructions in front of the lens and automatically reduceslight output to prevent overheating and protect the optical system.
Multi Monitoring & Control Software Support
Manage up to 2,048 compatible display devices across a network from a single workstation.Functions include monitoring, scheduling, playback management, control, and device mapping.
Sustainable and Energy-Efficient Performance
The PT-VMQ85 combines high brightness with lower power consumption and environmentally responsiblemanufacturing practices.
Improved Luminous Efficiency
Advanced laser technology delivers exceptional brightness while improving power efficiency,helping reduce operating costs across projector fleets.
Eco-Conscious Manufacturing
The projector incorporates recycled resin materials and recyclable packaging to reduce environmentalimpact and support sustainability initiatives.
Image Detection Power Saving
When projected content remains unchanged for a defined period, Image Detection can automaticallyreduce light output or switch off the light source to decrease energy consumption.
Auto Power On
The projector can automatically power up when an active input signal is detected, improving userconvenience while reducing unnecessary operation time.
Built-In Scheduling
Automate projector functions such as power management, input selection, and shutter operationthrough customizable weekly schedules.
Low Maintenance Ownership
20,000-Hour Laser Light Source
The solid-state laser light source delivers up to 20,000 hours of operation without lamp replacement,significantly reducing maintenance requirements and total cost of ownership.
Long-Life ECO Filter
An electrostatic Micro-Cut Filter captures fine dust particles and supports maintenance intervalsof up to 20,000 hours. The filter can also be washed and reused, minimizing operational costs and waste.
