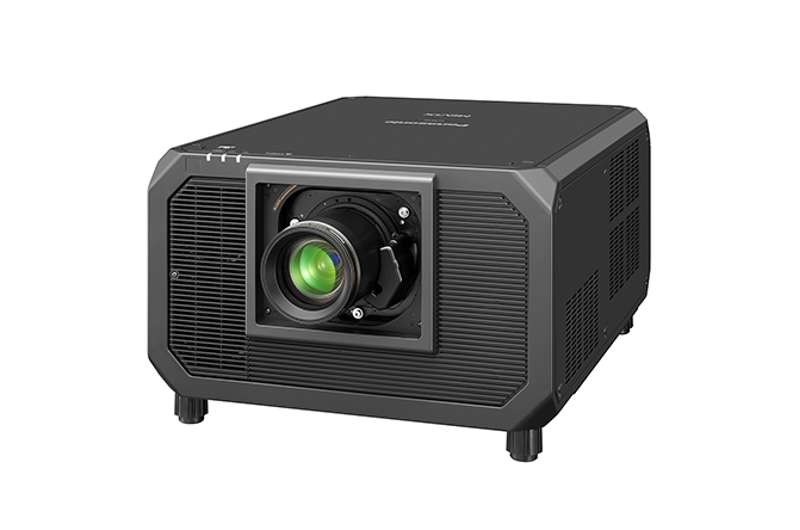

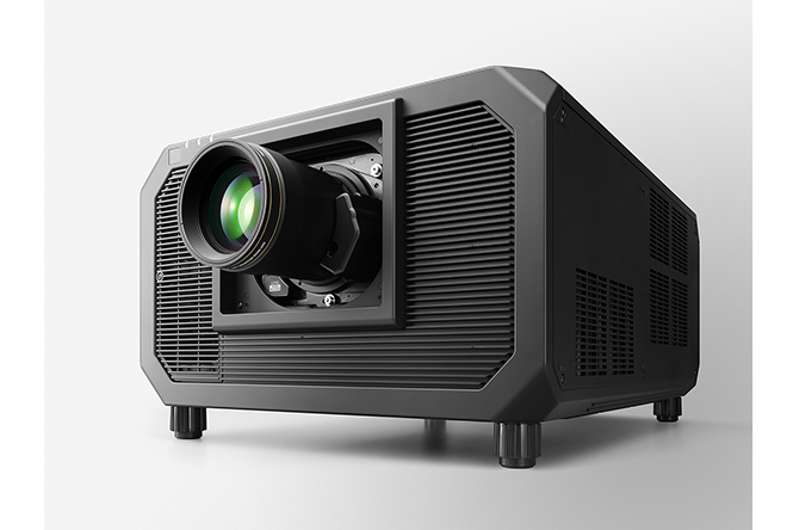

Panasonic PT-RQ45K: High-Brightness 4K Laser Projector for Large Venue & Projection Mapping Applications
The Panasonic PT-RQ45K is a next-generation high-brightness 3-Chip DLP laser projector engineered for large-scale events, projection mapping, live entertainment, museums, houses of worship, and immersive environments. Combining advanced workflow enhancements, exceptional reliability, and spectacular visual performance, the PT-RQ45K helps simplify deployment while delivering stunning 4K imagery with outstanding brightness, contrast, and color accuracy.
Key Features
1. A Revolution in Workflow Efficiency
Compact dimensions, lightweight construction, and a modular internal architecture reduce transportation, installation, and maintenance complexity. Advanced connectivity, an integrated information display, and compatibility with existing Panasonic accessories help minimize total cost of ownership while accelerating deployment.
2. Lasting Reliability in Harsh Environments
Designed for demanding applications, the PT-RQ45K features coated circuit boards, an IP5X-rated optical engine, a built-in mechanical shutter, and Backup Input redundancy to ensure dependable performance in challenging venues.
3. Spectacular Visuals for the Biggest Events
A powerful multi-laser light source combines one red and two blue lasers to achieve 91% DCI color coverage. Panasonic technologies including Quad Pixel Drive, Gradation Smoother 2, and advanced Dynamic Contrast deliver vibrant colors, deep blacks, and exceptional image detail.
A Revolution in Workflow Efficiency
Designed to Simplify Every Stage of Deployment
Panasonic worked closely with rental partners, system integrators, and content creators to build a projector that streamlines setup, operation, maintenance, and transportation. The result is a platform that reduces labor requirements, lowers operational costs, and improves overall workflow efficiency.
The World's Smallest and Lightest Projector in Its Class
Maintaining nearly the same footprint as the PT-RQ35K Series while delivering higher brightness, the PT-RQ45K enables easier transportation, lower storage requirements, and faster installation. Compatibility with existing Panasonic frames, flight cases, and lenses further protects previous investments and simplifies fleet upgrades.

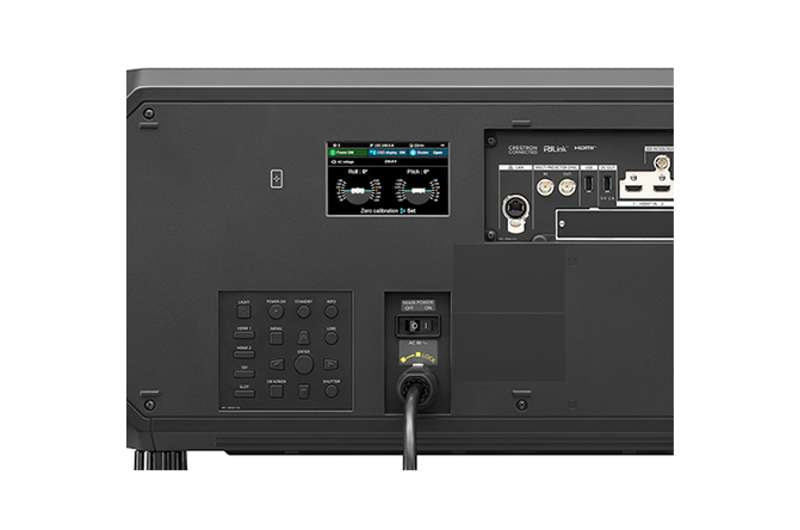

Integrated 5-Inch Color Information Monitor
A built-in 5-inch color LCD information monitor provides instant access to projector settings, system status, projection angles, video previews, operating information, and error notifications. This enables faster setup, simplified troubleshooting, and more efficient operation.

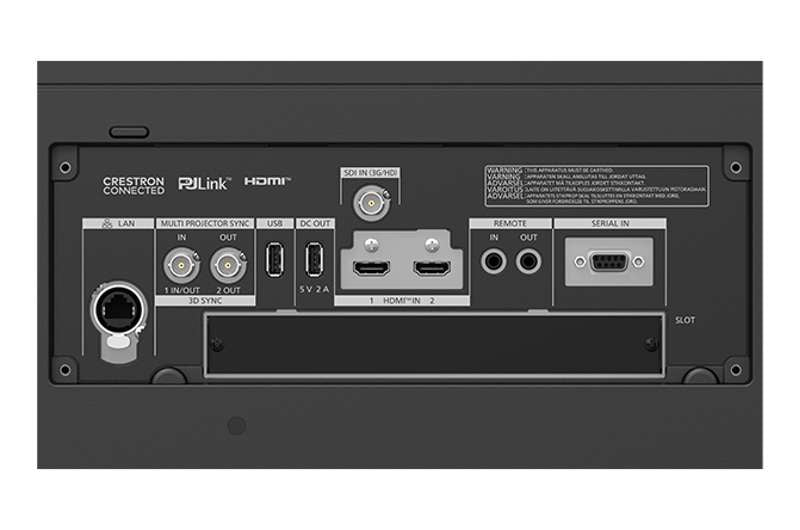

12G-SDI Input & Intel® SDM Slot
The PT-RQ45K is Panasonic's first projector to include a standard 12G-SDI input, enabling reliable long-distance transmission of high-bandwidth video signals. An Intel® SDM-compatible expansion slot allows integration of optional media processing and specialty function boards for advanced projection workflows.
Modular Design for Faster Serviceability
The redesigned internal structure improves access to critical components, significantly reducing service time and simplifying maintenance. Rental companies benefit from faster turnaround times and reduced downtime between deployments.
Contrast Sync & Shutter Sync via LAN
Synchronization between multiple projectors can now be achieved through LAN networking, significantly reducing cabling requirements while simplifying installation and minimizing system costs.
Smart Projector Control App
The Smart Projector Control application enables wireless management of up to 64 projectors from a smartphone or tablet. Users can adjust focus, lens positioning, zoom, brightness, test patterns, status monitoring, and shutter control directly from their mobile device.
USB Control Connect
USB Control Connect allows installers to use the Smart Projector Control App through a direct USB connection, eliminating dependency on available wireless infrastructure during setup.
NFC Configuration
Using NFC and the Smart Projector Control App, technicians can assign projector IDs, configure IP addresses, and prepare network settings even before AC power is connected.
Remote Preview Technology
Remote Preview enables operators to verify incoming video signals through thumbnail previews while the projector is in standby mode or with the shutter engaged, helping identify issues before showtime.
Visual Software Suite (VSS) Compatibility
Panasonic's Visual Software Suite combines multiple setup, monitoring, and adjustment tools into a single platform, streamlining commissioning and system optimization.
Built-In Angle Monitor
An integrated angle sensor displays pitch and roll information directly on the Information Monitor, allowing a single technician to accurately adjust projection angles without assistance.
Flexible Power Options
The PT-RQ45K supports both 200–240V and 100–120V power sources, enabling setup and calibration before high-voltage power becomes available at an event venue.
Broad Lens Compatibility
The projector supports Panasonic's D3LE lens family and select legacy lenses, offering extensive throw-distance flexibility for virtually any installation environment.
Lasting Reliability in Harsh Environments
Coated Circuit Boards
Special protective coatings on key circuit boards improve resistance to moisture, dust, and corrosive airborne contaminants, helping ensure long-term operational stability.
Dynamic Digital Control
A dedicated thermal management system continuously adjusts laser output to maintain optimal RGB balance, ensuring consistent brightness, color accuracy, and image quality.
Built-In Mechanical Shutter
The internal mechanical shutter protects critical imaging components from stray laser light commonly encountered during concerts, live productions, and event environments.
IP5X Dust-Protected Optical Engine
A sealed optical engine, closed-loop cooling architecture, and filterless design reduce maintenance requirements while improving system reliability in dusty environments.
Backup Input Signal Redundancy
The projector supports automatic failover between identical primary and backup signals, ensuring uninterrupted image presentation in mission-critical applications.
Laser Failover Circuitry
If an individual laser diode fails, proprietary failover circuitry bypasses the affected component while keeping the remaining laser module operational, minimizing visible brightness loss.
Spectacular Visuals for Large-Scale Experiences
Quad Pixel Drive Technology
Panasonic's Quad Pixel Drive enhances perceived 4K image quality using high-speed pixel shifting in both horizontal and vertical directions, producing remarkably smooth and detailed visuals.
91% DCI Color Coverage
The laser system combines one red and two blue laser modules to deliver rich, accurate, and highly immersive color reproduction with expanded gamut performance.
Gradation Smoother 2
Gradation Smoother 2 minimizes visible color banding, offering six levels of adjustment for optimal image refinement without requiring source content modification.
Enhanced Dynamic Contrast
Advanced frame-by-frame scene analysis achieves an impressive 25,000:1 dynamic contrast ratio, improving detail in both highlights and shadows.
240Hz High-Speed Display Support
Support for 1080p/240Hz playback with input latency as low as 8ms enables exceptionally smooth motion reproduction for esports, simulation environments, immersive experiences, and real-time projection mapping.
Advanced Black-Level Adjustment
Up to 17 control points allow precise black-level calibration on curved surfaces and complex blended displays, ensuring seamless image transitions across multiple projections.
Uniform Black-Level Management
Enhanced black-level processing maintains consistent dark scenes across blended images and projection overlaps, improving overall image uniformity.
Eco-Conscious Design
The PT-RQ45K incorporates approximately 71% recycled resin within the main chassis and delivers improved luminous efficiency compared to previous generations. An ECO Standby mode further reduces energy consumption when the projector is not in active use.
Additional Professional Features
- Crestron Connected™ V2 Support
- Crestron XiO Cloud™ Compatibility
- Art-Net DMX Integration
- AMX® Device Discovery
- PJLink™ Support
- IPv6 Networking
- Data Cloning via LAN or USB
- USB Media Transfer Support
- Multiple PJ Firmware Batch Update Tool Compatibility
- Custom Test Pattern Import
- Advanced Web UI Interface
- Screen Marker Tools
