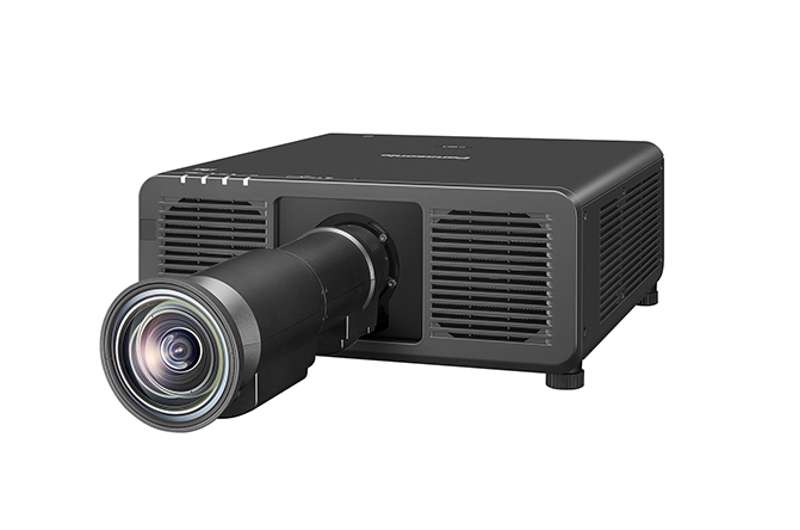

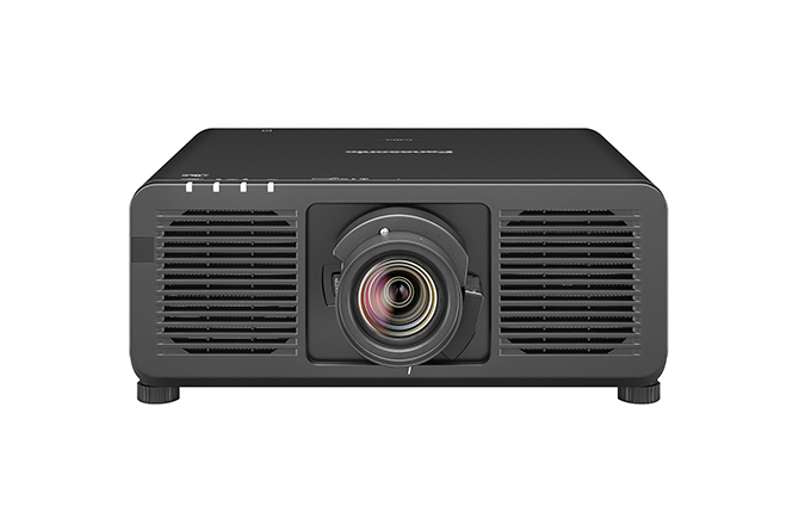

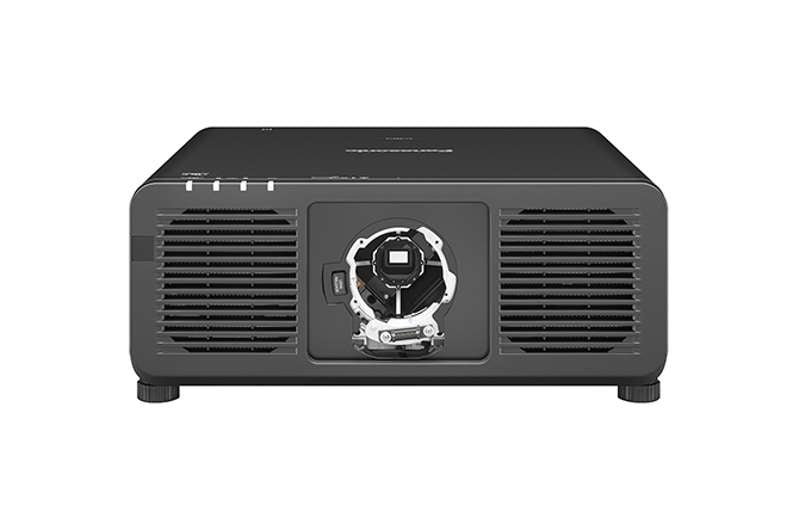

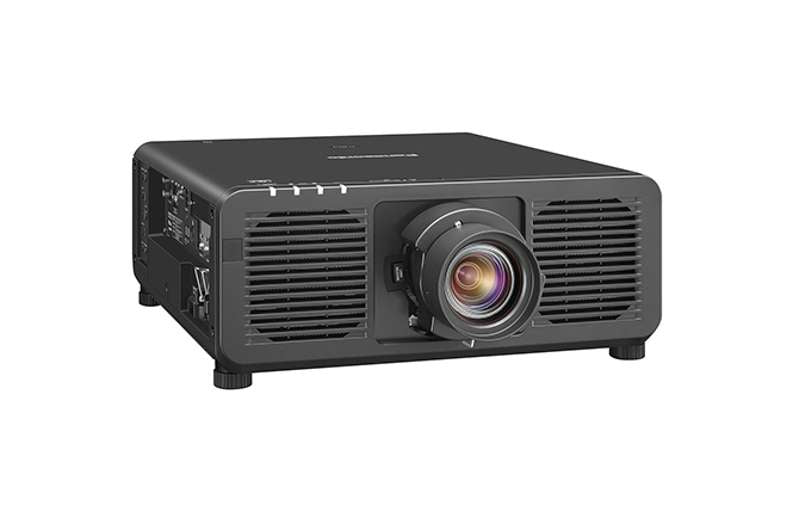

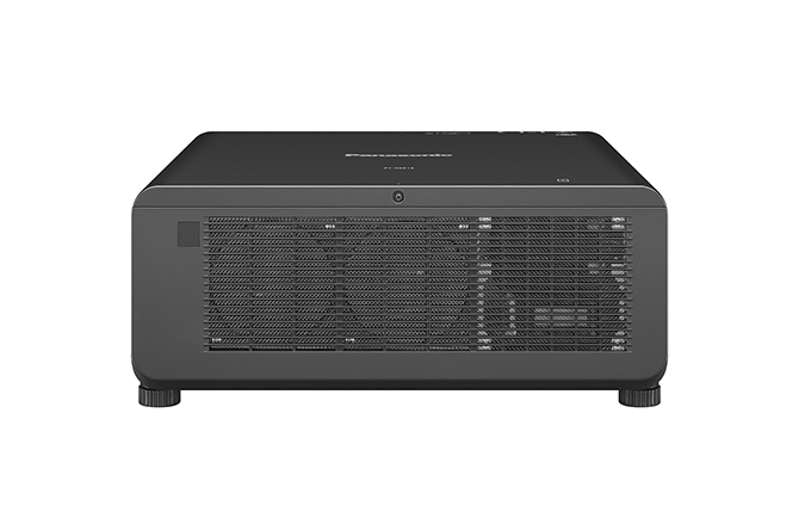

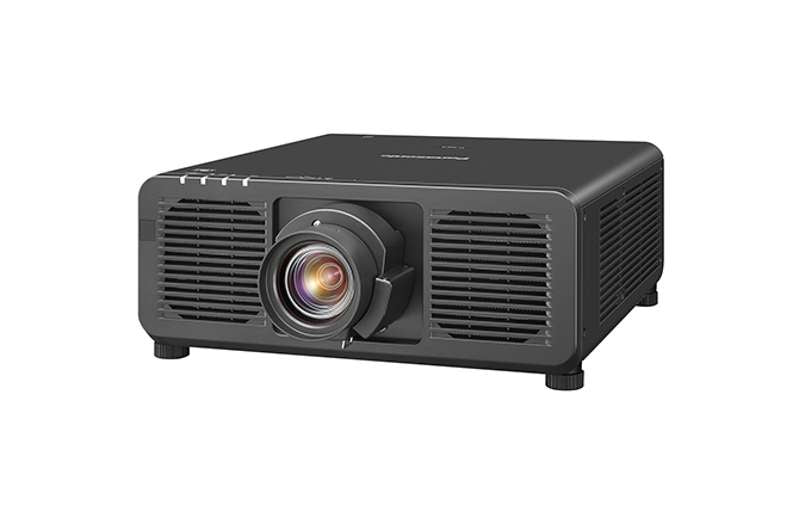

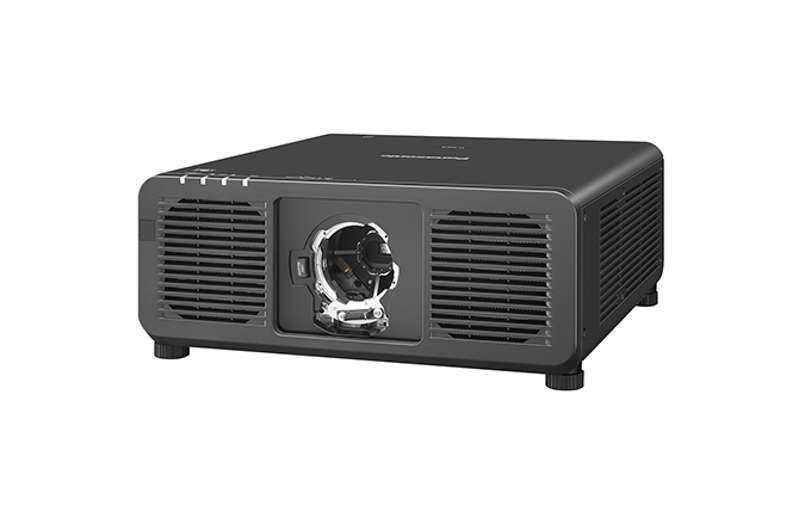

Panasonic PT-REZ15: Compact WUXGA Laser Projector Designed for Immersive and Professional AV Environments
The Panasonic PT-REZ15 is a powerful 1-Chip DLP™ laser projector that delivers up to 15,000 lumens of brightness and exceptional WUXGA image quality in a compact, installation-friendly chassis. Developed for museums, exhibitions, higher education, corporate spaces, houses of worship, projection mapping, themed entertainment, and multi-screen environments, the REZ15 Series combines outstanding visual performance, flexible installation, and long-term reliability.
Featuring Rich Color Enhancer, Evolved Dynamic Contrast, Gradation Smoother, Intel® SDM expandability, and an IP5X-rated dust-resistant optical engine, the PT-REZ15 is designed to simplify workflows while delivering impressive visual experiences in demanding professional applications.
Key Features
Seamless, High-Contrast Visuals Deepen Engagement
New scene-recognition circuitry and an enhanced dynamic contrast system produce deeper blacks, brighter highlights, and more immersive images. Rich Color Enhancer delivers vibrant yet accurate colors, while Gradation Smoother and advanced black-level adjustment ensure smooth, seamless visuals across curved and blended screens.
Compact Design for Efficient Workflow
The compact REZ15 Series delivers full brightness on standard AC 100–240V power and supports Panasonic's new lens lineup, Intel® SDM expansion slot, NFC setup, ET-FMP50 media processors, and Visual Software Suite integration for simplified deployment and management.
Maintenance-Free Reliability
An IP5X Dust-Protected optical engine, laser light source, and advanced liquid-cooling system provide up to 20,000 hours of maintenance-free projection while maximizing operational stability in challenging commercial environments.
Seamless Visual Performance
Evolved Dynamic Contrast
Panasonic's latest Dynamic Contrast technology delivers an impressive 25,000:1 contrast ratio. Advanced scene-analysis circuitry intelligently detects bright and dark regions of every image and dynamically adjusts light output to create greater depth and realism.
Rich Color Enhancer
Rich Color Enhancer features two optimized operating modes that balance brightness and color performance:
-
Dynamic Mode for maximum brightness and visibility.
-
Standard Mode for enhanced color accuracy and richer red reproduction.
This technology ensures faithful reproduction of artwork, branding elements, digital signage, and creative visual content.
Gradation Smoother
Gradation Smoother minimizes visible color banding in image gradients, helping create smooth transitions and a more natural visual appearance without requiring modifications to source content.
Advanced Black-Level Adjustment
The PT-REZ15 introduces more flexible black-level controls for edge-blended and curved-screen installations. Up to 17 control points allow precise shaping of blend zones to create seamless multi-projector images.
Enhanced Multi-Screen Blending
Refined black-level processing extends beyond the active image area, helping eliminate visible transitions between projector overlaps and delivering smoother blended displays.
Compact and Flexible for Efficient Deployment
15,000 Lumens on Standard AC Power
The PT-REZ15 achieves its full brightness output using standard AC 100–240V power, eliminating the need for dedicated high-voltage installation and reducing deployment costs.
Compact, Lightweight & Quiet Design
The compact chassis simplifies transportation, handling, and installation while reducing storage requirements. Advanced liquid-cooling technology keeps operating noise low, ensuring audiences remain focused on the content rather than the equipment.
All-New Motorized Lens Platform
The REZ15 Series supports Panasonic's latest C1-Series lenses, including:
- Ultra-Short-Throw Zoom Lenses
- Short Throw Lenses
- Standard Zoom Lenses
- Long Throw Lenses
Additional lens features include:
- Powered Zoom
- Powered Focus
- Powered Lens Shift
- Lens Memory
- Auto Lens Identification
- Powered Peripheral Focus Adjustment
Intel® SDM Expansion Slot
An Intel® SDM-compatible expansion slot enables support for optional Panasonic and third-party function boards, providing additional connectivity and processing capabilities for future scalability.
Custom Test Pattern Storage
The PT-REZ15 supports user-defined BMP, PNG, and JPEG images for:
- Calibration Patterns
- Startup Logos
- Screensavers
- Installation Aids
Smart Projector Control App
Panasonic's Smart Projector Control App enables projector control from a smartphone or tablet and supports up to 64 projectors simultaneously.
Functions include:
- Projector Setup & Monitoring
- Input Selection
- Lens Adjustment
- Focus Assistance
- Brightness Locking
- Test Pattern Selection
- USB Connect Control
NFC Setup Support
Built-in NFC functionality allows installers to prepare network settings, IP configurations, and projector IDs before power is available, significantly reducing setup time during large deployments.
Visual Software Suite (VSS)
Visual Software Suite provides a complete Windows-based platform for setup, geometry correction, alignment, calibration, monitoring, and ongoing management of Panasonic projection systems.
ET-FMP50 Media Processor Compatibility
Optional ET-FMP50 media processors simplify complex multi-projector installations through automated blending, warping, media playback, and advanced calibration tools.
Angle Monitor
An onboard angle sensor displays projector pitch and roll information directly within the OSD interface, simplifying installation and ensuring accurate projector positioning.
Screen Marker Function
Screen Marker tools assist with projector alignment and measurement by providing:
- Crosshair Markers
- Margin Guides
- Line Frame Tools
- Fixed Position References
Enhanced Web Control Interface
The redesigned web control platform features:
- Dark & Light Interface Modes
- Projector Scheduling Functions
- Remote OSD Access
- Mobile-Friendly Layouts
- Custom Device Status Dashboards
Maintenance-Free Reliability
IP5X Dust-Protected Optical Engine
The hermetically sealed optical engine and laser light source conform to the IP5X Dust Protected standard, eliminating the need for filters and reducing maintenance requirements.
20,000 Hours of Maintenance-Free Projection
The laser light source and advanced cooling system support up to 20,000 hours of operation with minimal maintenance, lowering ownership costs and maximizing uptime.
Backup Input Redundancy
The Backup Input feature automatically switches to a secondary HDMI source within as little as 0.3 seconds if the primary signal is interrupted, helping ensure uninterrupted presentations and events.
Multi-Laser Drive Engine with Failover Circuitry
Panasonic's Multi-Laser Drive Engine incorporates failover circuitry that helps maintain projection even if an individual laser diode experiences a failure, minimizing brightness loss and increasing reliability.
Remote Preview LITE
Remote Preview LITE allows operators to verify incoming content through a web browser or monitoring software before projection begins, reducing setup errors and improving event readiness.
Additional Professional Features
- Art-Net DMX Compatibility
- PJLink™ Support
- Crestron Connected® V2
- Crestron XiO Cloud® Integration
- Extron XTP® Compatibility
- IPv6 Networking Support
- Data Cloning via LAN or USB
- 21:9 Ultra-Wide Signal Support
- Quick Start & Quick Off
- 360° Installation Capability
- Multi-Screen Support System
- Multi-Unit Brightness & Color Matching
- DICOM Simulation Mode
- Waveform Monitor Function
- Contrast Sync & Shutter Sync
- Firmware Batch Update Support
Ideal Applications
- Museums & Interactive Exhibits
- Corporate Experience Centers
- Higher Education & Auditoriums
- Houses of Worship
- Themed Entertainment
- Projection Mapping Installations
- Visitor Attractions
- Large Venue Presentations
- Multi-Screen Visualization Systems
- Digital Art Displays
