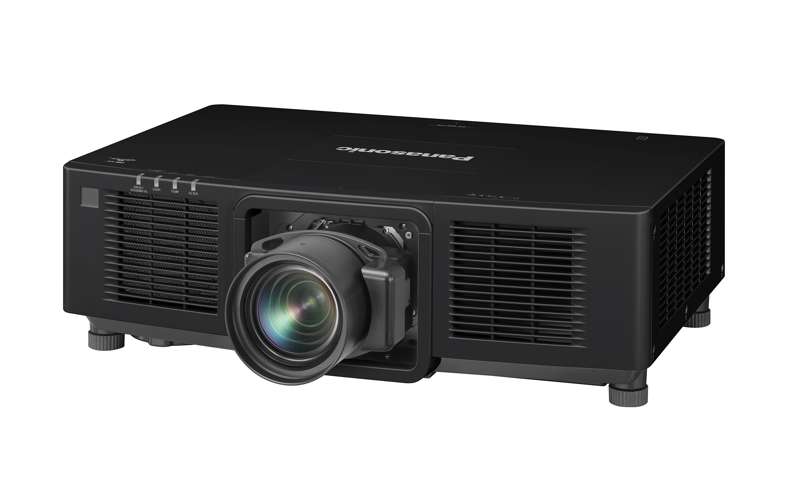

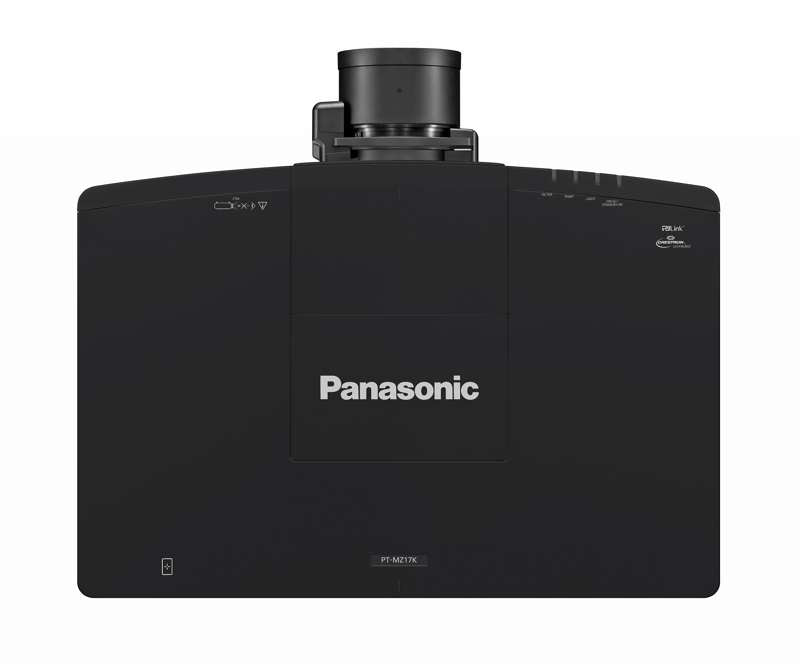

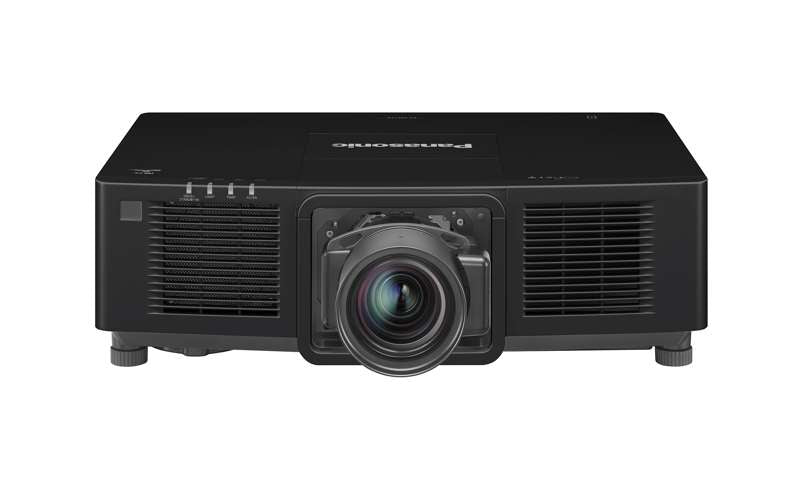

Panasonic PT-MZ17KL: Compact 16,500-Lumen LCD Laser Projector for Large Venues & Professional Environments
The Panasonic PT-MZ17KL delivers exceptional brightness, reliability, and installation flexibility in one of the industry's most compact high-brightness LCD laser projectors. Producing up to 16,500 lumens of WUXGA resolution projection, the PT-MZ17KL is ideal for higher education, auditoriums, museums, houses of worship, conference centers, large meeting spaces, and corporate environments where image quality and operational efficiency are critical.
Combining Panasonic's advanced LCD laser technology, intelligent installation tools, industry-leading reliability, and low operating costs, the PT-MZ17KL delivers powerful performance while simplifying transportation, setup, and maintenance.
Key Features
1. World's Smallest, Lightest, and Quietest 16,500-Lumen LCD Projector
Engineered for maximum efficiency, the PT-MZ17KL combines high brightness with a lightweight 22.5 kg (49.6 lbs) chassis and exceptionally quiet 38 dB operation. Its compact design simplifies transportation and installation while maintaining powerful projection performance for large venues.
2. Long-Life Energy-Saving Design
A laser light source, reusable filter, Multi-Laser Drive Engine, and advanced cooling architecture provide up to 20,000 hours of maintenance-free operation while reducing power consumption and long-term operating costs.
3. Full Brightness on Standard AC Power
The PT-MZ17KL delivers its full 16,500-lumen brightness using standard AC 100-240V power, eliminating the need for dedicated high-voltage electrical infrastructure and simplifying deployment in virtually any location.
Compact Design with Powerful Performance
Small Size, Big Impact
The PT-MZ17KL is part of Panasonic's PT-MZ20K Series, offering the same installation-friendly compact chassis while delivering impressive brightness for demanding professional applications. Its lightweight design reduces shipping costs, simplifies logistics, and enables quicker installation with smaller crews.
The projector integrates seamlessly into lecture halls, conference centers, auditoriums, museums, and hybrid learning spaces where aesthetics and performance are equally important.
Ultra-Quiet Operation
With operating noise of only 38 dB in Normal Mode and 32 dB in Quiet Mode, the PT-MZ17KL minimizes distractions and creates a comfortable environment for learning, presentations, meetings, and public events.
- Lecture Theaters
- Boardrooms
- Conference Centers
- Museums & Galleries
- Houses of Worship
- Hybrid Learning Environments
Outstanding Visual Performance
Pure White Generator Technology
Panasonic's exclusive Pure White Generator maximizes brightness while preserving accurate color reproduction. An advanced multi-reflection optical system improves light efficiency and delivers vivid, natural-looking images with excellent color balance.
Dynamic Contrast NX
Dynamic Contrast NX continuously analyzes image content frame-by-frame and intelligently adjusts laser output. The result is deeper blacks, brighter highlights, and enhanced contrast performance that creates greater image depth and realism.
Detail Clarity Processor 4
Advanced processing analyzes image detail and signal frequency information to improve sharpness, texture, and dimensionality while maintaining a natural visual appearance.
4K Signal Compatibility
The PT-MZ17KL supports 4K/60p signal input through HDMI and DIGITAL LINK connections, allowing easy integration with modern content sources while displaying optimized WUXGA output.
Long-Life, Energy-Efficient Design
20,000-Hour Maintenance-Free Operation
The laser light source and long-life filter system are designed for up to 20,000 hours of operation before maintenance is typically required. This reduces ownership costs and minimizes downtime.
Environmentally Responsible Design
The compact chassis improves transportation efficiency while reducing environmental impact. Combined with low power consumption and fewer replacement components, the PT-MZ17KL supports sustainability initiatives and total cost-of-ownership reduction.
Advanced Cooling Technology
A liquid-cooling system derived from Panasonic's professional projection platforms directly cools critical laser components. Combined with a sealed dust-resistant optical structure, the design ensures stable performance even in challenging operating environments.
Reliability for Mission-Critical Applications
Multi-Laser Drive Engine
The PT-MZ17KL incorporates Panasonic's Multi-Laser Drive Engine with failover circuitry. If an individual laser diode experiences a fault, backup circuitry minimizes brightness loss and helps maintain uninterrupted operation.
Backup Input Function
Two identical HDMI signals can be connected simultaneously. If the primary signal is interrupted, the projector automatically switches to the backup source in as little as 0.3 seconds, helping prevent presentation disruptions.
Information Monitor
A built-in Information Monitor provides real-time access to projector status, including:
- Operating Hours
- Temperature Monitoring
- Input Signal Information
- Voltage Status
- Error Notifications
- System Diagnostics
Flexible Installation & Setup Tools
Data Cloning Function
Copy settings and configuration data from one projector to multiple units through LAN or USB memory devices, significantly reducing setup time for large deployments.
Smart Projector Control App
Control up to 64 projectors from a smartphone or tablet using Panasonic's Smart Projector Control App.
- Input Selection
- Power Control
- Test Pattern Selection
- Lens Adjustment
- Focus Adjustment
- Status Monitoring
NFC Setup Support
Optional NFC functionality allows network settings and configuration information to be read and written through a mobile device, speeding up installation and deployment.
Geometric Adjustment
Built-in geometric correction tools support:
- Keystone Correction
- Curved Screen Correction
- Corner Adjustment
- Screen Shape Optimization
Free Grid Image Correction
Free Grid enables precise local image correction using adjustable grids from 2×2 to 17×17 control points, making it ideal for complex projection surfaces and creative installations.
Geometry Manager Pro Support
The PT-MZ17KL supports Panasonic Geometry Manager Pro, enabling advanced image warping, edge blending, stacking, color matching, brightness uniformity correction, and automated camera-based calibration.
Visual Software Suite (VSS)
Visual Software Suite integrates multiple Panasonic projection tools into a single platform for projector setup, monitoring, calibration, and ongoing system management.
Remote Preview LITE
View thumbnail previews of incoming content from a connected computer even while the projector is in standby mode or operating with the shutter closed. This allows technicians to verify signals before presentations begin.
Advanced Multi-Screen Capabilities
Black Level Correction
Enhanced black-level correction supports up to 17 control points, making it easier to create seamless edge-blended images on curved or irregular screens while maintaining uniform black levels across large displays.
Multi-Screen Support
Designed for professional multi-projector environments, the PT-MZ17KL provides tools for blending, matching, and synchronizing multiple projectors for large-format presentations and immersive installations.
Lens Flexibility
A wide range of optional Panasonic lenses supports screen sizes from 80" to 600", including:
- Ultra-Short-Throw Zoom Lens
- Short Throw Lenses
- Standard Zoom Lenses
- Long Throw Lenses
Powered zoom, focus, and lens shift capabilities simplify installation and allow precise image alignment across a wide range of venues.
Additional Professional Features
- Supports 21:9 Input Signals
- Art-Net DMX Compatibility
- PJLink™ Support
- Crestron Connected™ V2
- Crestron XiO Cloud™ Integration
- Extron XTP® Compatibility
- IPv6 Networking
- Firmware Batch Update Tool Support
- Direct Power Off Function
- Scheduling Function
- Quick Startup & Quick Off
- 360° Installation Capability
- DICOM Simulation Mode
- Waveform Monitor Function
Ideal Applications
- Universities & Lecture Halls
- Corporate Conference Rooms
- Auditoriums
- Museums & Exhibitions
- Houses of Worship
- Convention Centers
- Control Rooms
- Large Venue Presentations
- Hybrid Learning & Collaboration Spaces
