Use case:
Business,enterprise,museums,digital signage
Panasonic LV Series TL-55LV12A 55" Direct View LED Display
Immersive Visual Experience: High brightness of 800 cd/m², a wide color gamut, and a 10,000:1 contrast ratio deliver vivid, clear images even in brightly lit environments.

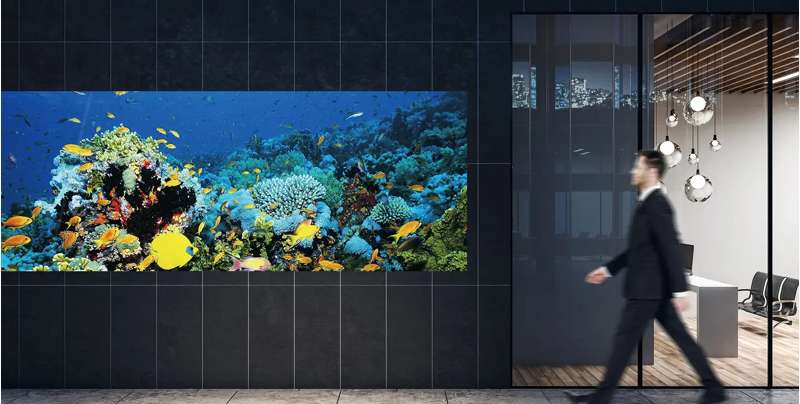

Seamless Large-Screen Display: Borderless, joint-free design creates a single, uninterrupted video wall for maximum visual impact and improved brand engagement.
Ultra-Slim & Lightweight Chassis: Weighs just ~18.3 kg with an ultra-slim profile of 29 mm, significantly reducing transport, handling, and installation complexity.
Built-In All-in-One Architecture: Controller-less design eliminates external system controllers, simplifying setup and reducing cabling.
HDMI® Daisy-Chain Signal Support: Loop up to four 55-inch displays for both video and control signals over a single HDMI connection.
Flexible Power Daisy-Chaining: Daisy-chain power across up to 4 units vertically (landscape mode) or up to 4 units horizontally (portrait mode).
Versatile Mounting Compatibility: Supports VESA-compliant (400 × 400 mm) mounting brackets to easily replace legacy LCD video walls on existing stands, as well as dedicated wall-mount options.
Advanced Flipchip COB LED Technology: Fine 1.26 mm pixel pitch with Chip-on-Board (COB) protection provides superior resistance against minor impacts, dust, and stains.
24/7 Continuous Operation & Long Lifespan: Built for commercial reliability with long-life LED modules rated for up to 100,000 hours to half-brightness.
30% Energy Savings: Consumes as low as 170 W at default brightness—reducing power consumption by approximately 30% compared to conventional multi-screen LCD displays (e.g., TH-55VF2H).
Complete Front-Access Maintenance: Servicing is made effortless with front-removable LED modules, power units, and circuit boards—even when wall-mounted.
Overview & Core Features

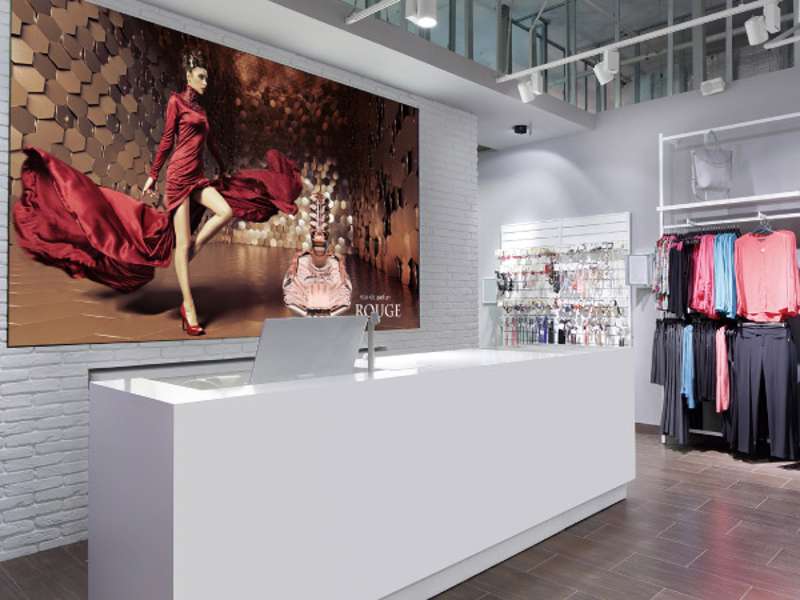

The Panasonic LV Series TL-55LV12A redefines commercial LED video walls by reducing the total burden of installation, operation, and maintenance. Featuring a 55-inch Flipchip COB panel with a 1.26 mm pixel pitch, it combines high brightness, rich color reproduction, and borderless design to deliver stunning visual experiences in corporate environments, retail spaces, public facilities, and control rooms.
Delivers Immersive Visuals That Feel Like a Single Image
With a high contrast ratio of 10,000:1 and 800 cd/m² brightness, the LV Series delivers clear, vivid imagery without the distracting bezels or joints associated with traditional multi-screen LCD displays.
Faithfully Reproduces Content with a Wide Color Gamut
Utilizing RGB three-color LED elements, the TL-55LV12A offers a broader color gamut than standard LCD monitors, delivering richer, more accurate color accuracy that elevates branded content and visuals.
Flexible Sizing and Layout to Suit Any Space
Combine multiple 55-inch units in landscape or portrait orientation to create customized large-format display walls. Organizations can utilize the dedicated LED Manager LV software (free download) and LED Configurator tools to easily map, configure, and control the display network directly from a PC.
Lightweight, Slim Design for Simplified Installation
Weighing approximately 18.3 kg with a slim depth of just 29 mm, the TL-55LV12A handles with the ease of a standard LCD display, allowing for setup in tight spaces while significantly lowering structural and labor requirements.
Dual Mounting Bracket Options
Standard VESA Mount Compatible: Equipped with standard VESA 400 × 400 mm mounting holes to reuse existing mounts or stands during LCD video wall upgrade projects.
Dedicated Wall-Mount Brackets (Optional): Interlocking dedicated brackets simplify alignment between units for multi-screen arrangements.
Simple Cabling & Integrated Power Pass-Through
Because the controller is integrated directly into the display cabinet, external system boxes are no longer required. Connect video, control, and power sequentially to reduce setup time:
Video/Control Signals: Daisy-chain up to 4 units via HDMI™.
Power Pass-Through (Landscape): Up to 4 displays connected vertically.
Power Pass-Through (Portrait): Up to 4 displays connected horizontally.
Durable Flipchip COB Technology for 24/7 Operation
Engineered for demanding public and surveillance environments, the surface-protected COB LED modules provide robust resistance to minor impacts, moisture, and dust, backed by a 100,000-hour estimated lifespan (to 50% brightness at 25°C).
Energy Efficiency & Efficient Front-Access Maintenance
With a default power draw of just 170 W, the TL-55LV12A helps lower operating costs while supporting green business initiatives. When maintenance is required, every critical component—including LED modules, power supply units, and control boards—can be accessed and swapped directly from the front.
Technical Specifications
Model: TL-55LV12A
Screen Size: 55-inch class (54.92" / 1395.1 mm diagonal)
LED Type / Pitch: Flipchip COB / 1.26 mm
Native Resolution: 960 × 540 per unit (supports up to 3840 × 2160 input)
