Compact Remote PTZ Camera Controller
Centralized Control for Large PTZ Systems
- Controls up to 200 Panasonic PRO PTZ cameras over IP from a single compact hardware controller.
- Supports control of up to 5 additional cameras via RS‑422 for mixed‑signal environments.

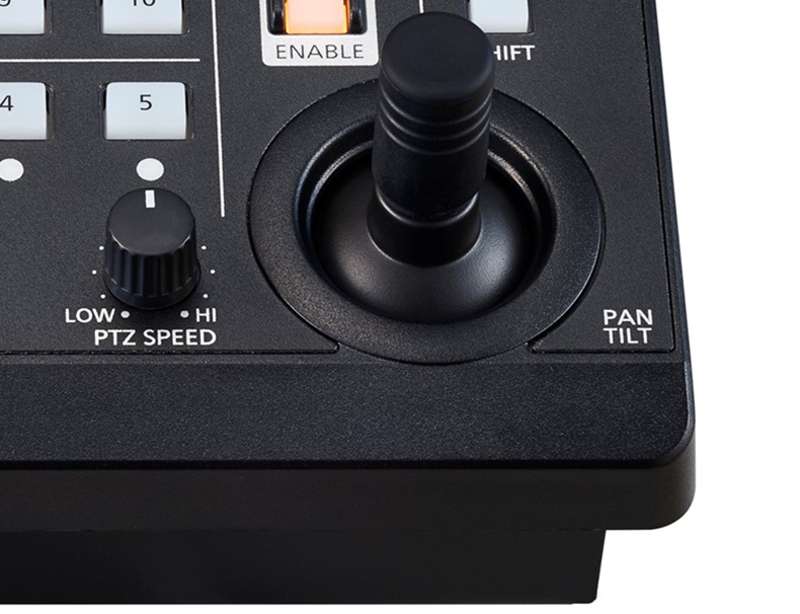

High‑Precision Joystick Operation
- Ergonomic, high‑precision joystick delivers smooth and responsive pan, tilt, and zoom control.
- Natural handling makes it ideal for live production and on‑air camera moves.

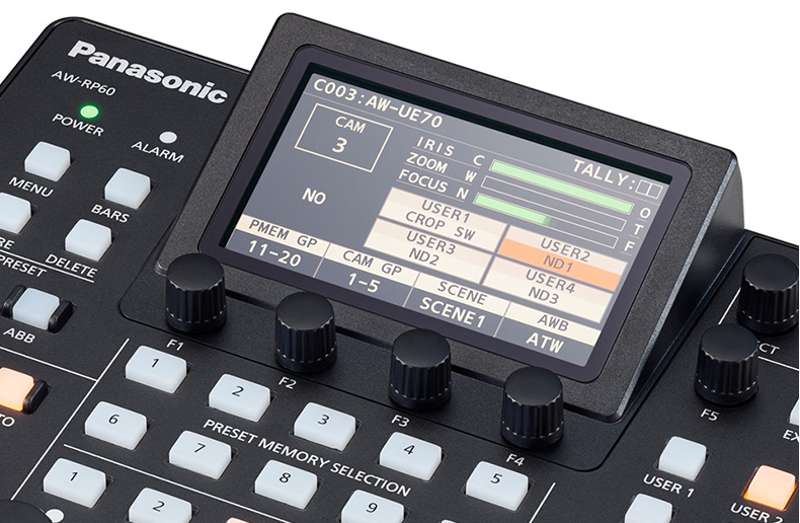

3.5" Color LCD with Enhanced GUI
- Integrated 3.5" color LCD displays menus and critical camera data at a glance.
- Quick access to key parameters such as iris, zoom, focus, and gain reduces on‑the‑fly adjustments.
Preset Management for Fast Shot Recall
- Store and recall up to 100 presets per system.
- Enables rapid, repeatable shot changes across multiple rooms, stages, or camera groups.
PoE‑Powered, Streamlined Integration
- PoE (IEEE 802.3af) support allows power and control over a single Ethernet cable.
- Simplifies installation, wiring, and integration in desks, racks, or mobile setups.
Purpose‑Built for Panasonic PTZ Ecosystems

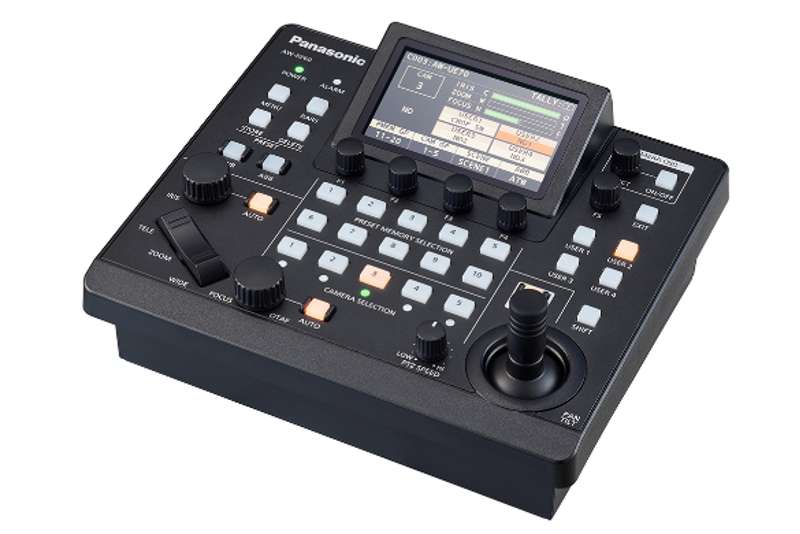

The AW‑RP60GJ5 is a compact, hardware‑based remote camera controller designed specifically for PanasonicPRO PTZ cameras. It provides tactile, reliable control for production, education, corporate, and house‑of‑worshipenvironments. Its small footprint, ergonomic layout, and durable construction make it well suited forflypacks, control rooms, classrooms, and mobile rigs where desk space is limited.

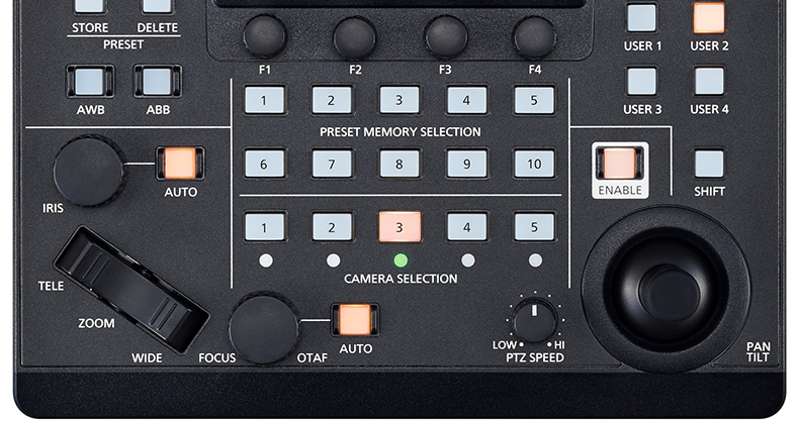

Intuitive Live Control with Joystick & LCD
A newly designed, highly responsive joystick gives operators precise control over pan, tilt, and zoom,enabling smooth camera movement during live events and broadcasts. The built‑in 3.5" LCD and updatedGUI keep essential camera parameters—such as iris, gain, zoom, and focus—clearly visible, minimizingmenu navigation and speeding up real‑time adjustments.
Scalable Multi‑Camera Management
Over IP, the AW‑RP60 can manage up to 200 Panasonic PTZ cameras (up to 100 for models other than theAW‑UE150), along with up to 5 cameras via RS‑422. Operators can store and recall up to 100 presets,making it easy to manage complex multi‑room, multi‑studio, or campus‑wide deployments with consistent,repeatable shot framing.
Flexible I/O for Professional Workflows
In addition to PoE support, the controller offers flexible I/O connections including XLR DC input, LAN,RS‑422, and tally/GPIO. This versatility allows the AW‑RP60GJ5 to adapt to a wide range of workflows,from simplified conference room control to more advanced broadcast and live production environments.
