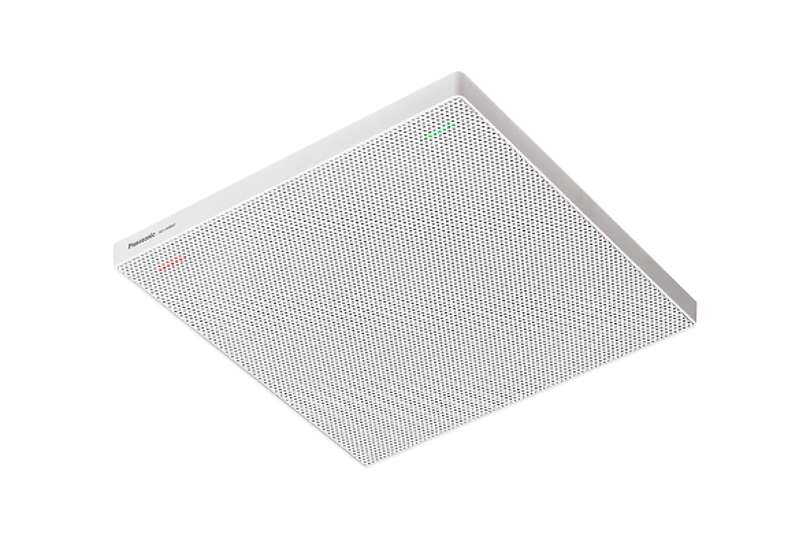

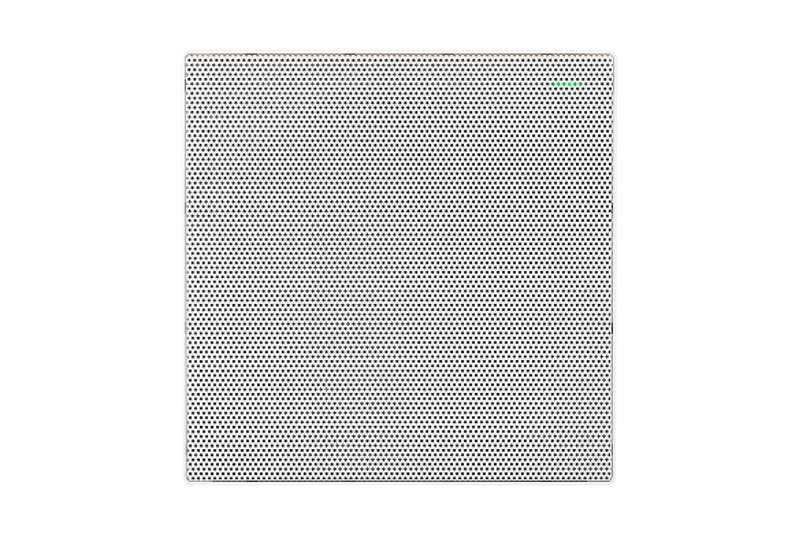

Beamforming Ceiling Microphone Array (Model: WX-AM800)
Wide-Area Beamforming Audio Capture
- Ceiling-mounted beamforming microphone array with 64 MEMS microphone elements.
- Covers up to a 30 ft × 30 ft area for clear, room-wide speech pickup.
- Ideal for classrooms, boardrooms, and collaboration spaces.
Automatic Sensitivity & Intelligent DSP
- Built-in DSP automatically adjusts sensitivity based on the active speaker’s position.
- Keeps speech intelligible without manual gain adjustment or zone configuration.
- Shapes pickup beams dynamically to reduce room noise and reverberation.
Native Panasonic PTZ Integration with Voice Tracking
- Direct integration with Panasonic PTZ cameras.
- Built-in voice tracking can trigger up to 16 camera presets based on where sound is detected.
- No external processors, control systems, or plug-ins required.
Dante Audio Networking & Simple Installation
- Dante digital audio connectivity with AES67 support.
- Dedicated LAN control port and PoE+ support.
- Single CAT5e cable can deliver both audio and power, simplifying installation.
Flexible Mounting & System Expansion

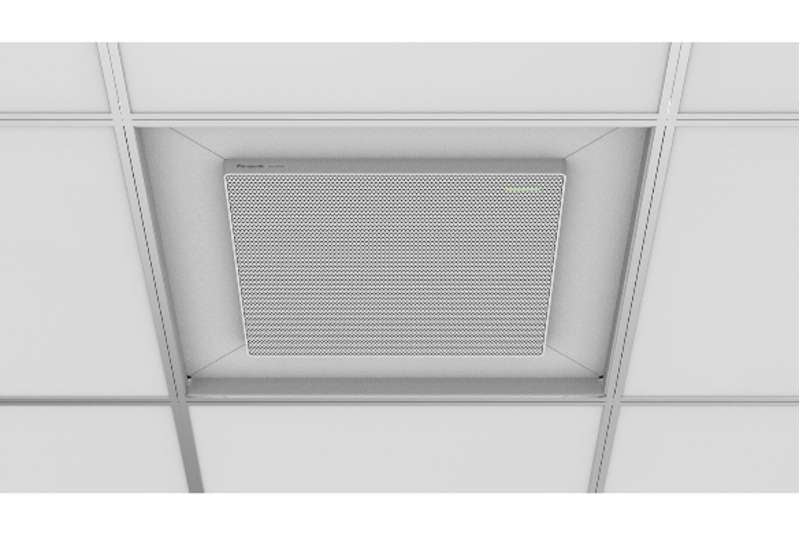

- Multiple ceiling mounting options to suit different room designs.
- Expandable system supports up to two additional Panasonic DECT wireless microphones.
- Expansion enabled via the optional WX-AU202 antenna/receiver.
Clean, Invisible Audio for Modern Spaces
The WX‑AM800 Beamforming Ceiling Microphone Array is designed to disappear visually while deliveringclear, natural speech for classrooms, boardrooms, and collaborative environments. By installing inthe ceiling and covering a large 30 ft × 30 ft area, it keeps tables free of clutter and maintains aclean, professional look while providing consistent audio quality for both local and remoteparticipants.
Intelligent Beamforming & Automatic Level Control
Using 64 MEMS microphone elements combined with advanced beamforming DSP, the WX‑AM800 continuouslyfocuses its pickup pattern on active speakers while suppressing ambient noise. Automatic sensitivityadjustment responds in real time to the speaker’s location, helping voices remain present and clearwithout constant manual gain control.
Voice-Driven PTZ Camera Operation
With native Panasonic PTZ integration, the WX‑AM800 can automatically drive camera preset recallsbased on detected speech location. This enables seamless voice-driven camera switching, creating amore engaging experience for hybrid classes and meetings with minimal operator intervention.
Dante Connectivity, PoE+, and Easy Expansion
Dante digital audio with AES67 support allows the WX‑AM800 to integrate easily into modern networkedaudio environments and route signals flexibly across a facility. PoE+ power and audio can be deliveredover a single cable, and when paired with the WX‑AU202 antenna/receiver, up to two additional PanasonicDECT wireless microphones can be added to the same network path without consuming extra rack space.
