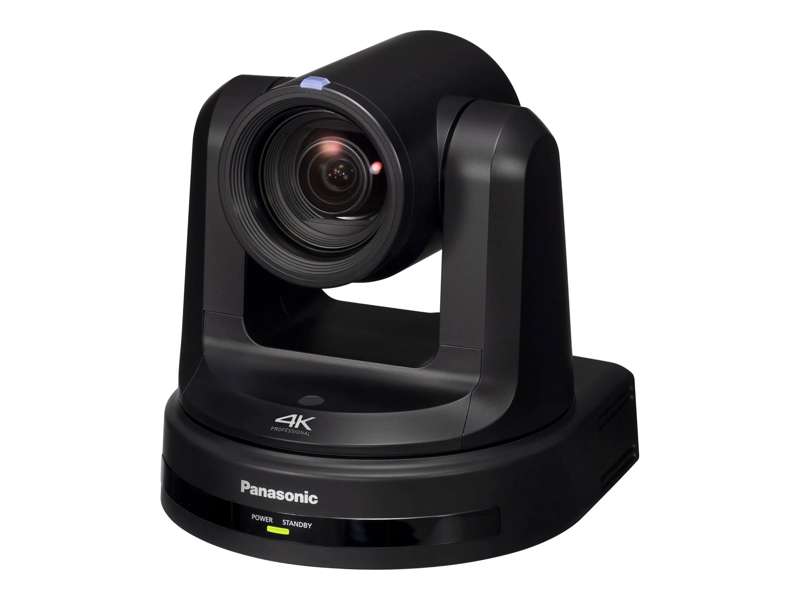

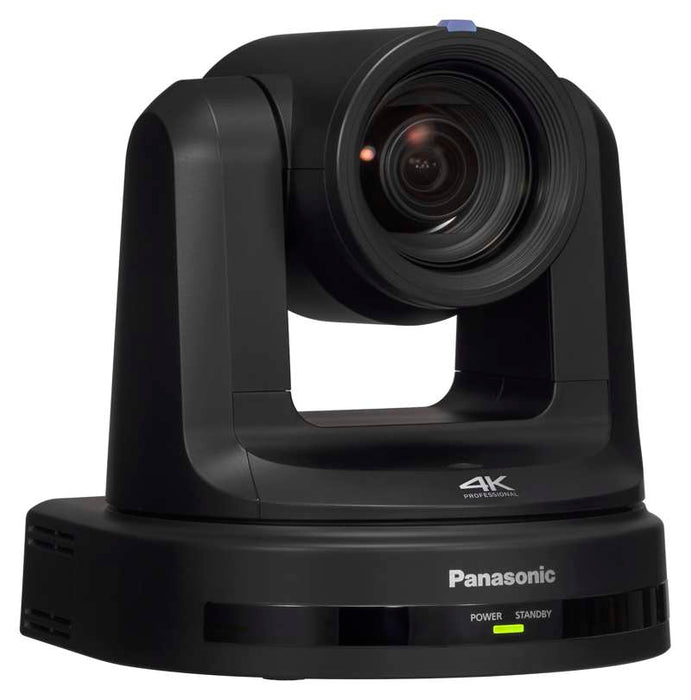

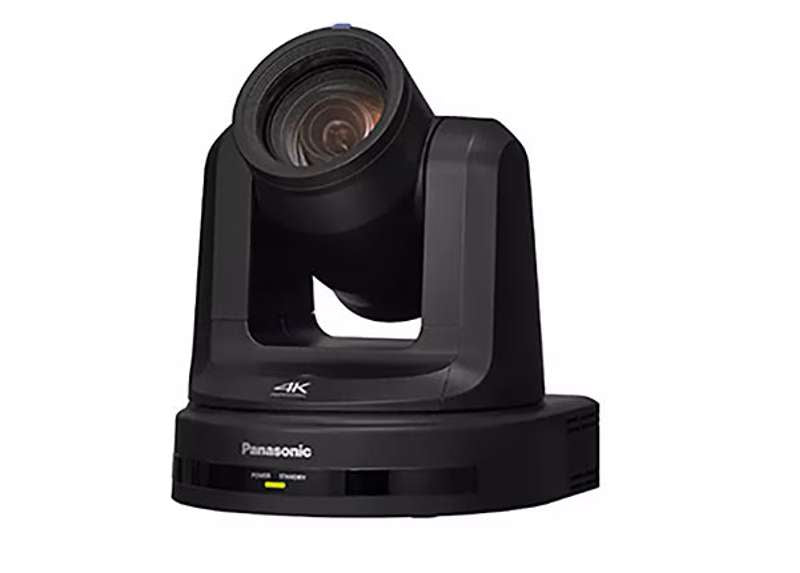

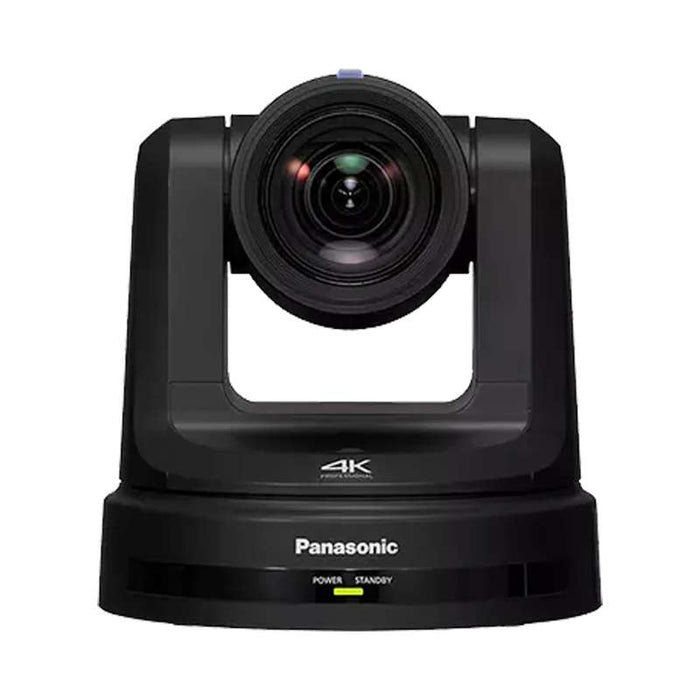

Broadcast 4K PTZ Camera with 3G-SDI, HDMI, IP & USB Output (Black)
Compact 4K PTZ camera designed for small to mid-size conference rooms, classrooms, houses of worship,and streaming studios that need polished, broadcast-style video without complex setup.
4K PTZ Imaging
1/2.8-type 4K MOS sensor for UHD 3840×2160 capture up to 30p/25p.
High-quality video streaming tuned for smoother, more comfortable online communication.
Wide Angle and 12x Zoom
71° horizontal wide-angle lens for full-room coverage from tight mounting spots.
12x optical zoom (3.9–46.8 mm) to frame individuals, panels, or details precisely.
Flexible Connectivity for Modern Workflows
Simultaneous 3G-SDI, HDMI, USB, and IP outputs for connection to switchers, displays, PCs, and streaming encoders at the same time.
Supports JPEG/MJPEG, H.264, and H.265 IP streaming for bandwidth-efficient remote production.
Zoom Certified & USB Ready
UVC support allows the camera to appear as a standard USB device to PCs for conferencing.
Zoom Certified with a dedicated “Video Conference” USB mode for consistent behavior in Zoom Rooms and soft-codec setups.
Compact, Install-Anywhere Design
Small, lightweight housing for ceiling, wall, truss, or desktop mounting without visual clutter.
Pan range of ±170° and tilt range of approximately -30° to 90° for flexible framing of audiences and presenters.
Simple Integration & Control
Compatible with Panasonic controllers such as AW-RP150, AW-RP60, and the AW-RM50 handheld remote for intuitive PTZ operation.
PoE+ support enables power and control over a single network cable, simplifying wiring.
Product Overview
The AW-UE20W/K delivers ultra-clear 4K video at up to 30p, powered by a 1/2.8-type 4K MOS sensor thatkeeps faces sharp and text readable, even in everyday room lighting. A wide 71° field of view lets thecamera cover the entire room from a short distance, while the 12x optical zoom brings presenters,whiteboards, or product demonstrations in close without loss of detail. With simultaneous HDMI,3G-SDI, USB, and IP streaming outputs, the camera integrates easily into existing AV and UC platforms,making it ideal for hybrid rooms that combine in-room presentation with online participants.
Zoom Certified and supporting UVC over USB, the AW-UE20 functions as a high-end web camera for platformssuch as Zoom while still offering professional PTZ control and network streaming workflows. Its compactbody and flexible mounting options help it blend naturally into any space rather than appearingover-produced on camera. Available in white (AW-UE20W) to match light interiors and black (AW-UE20K)for darker rooms or stage use, it aligns with both corporate and production aesthetics.
