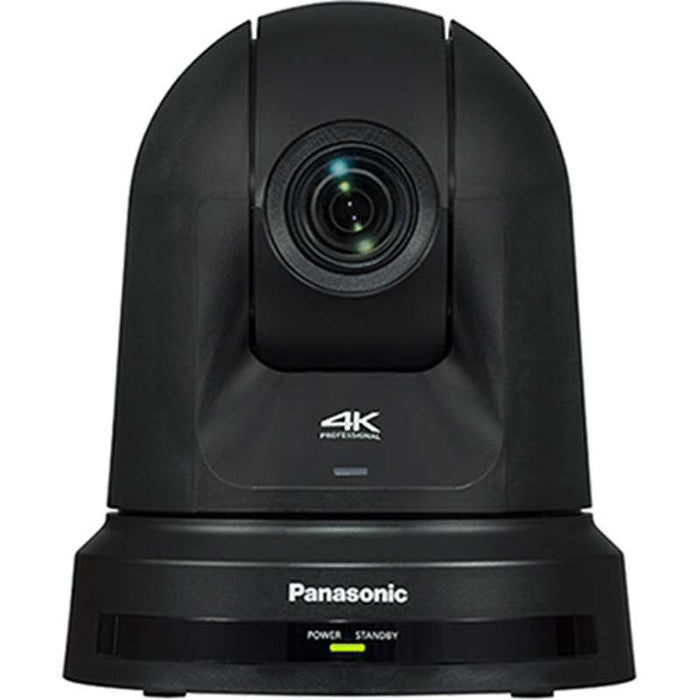

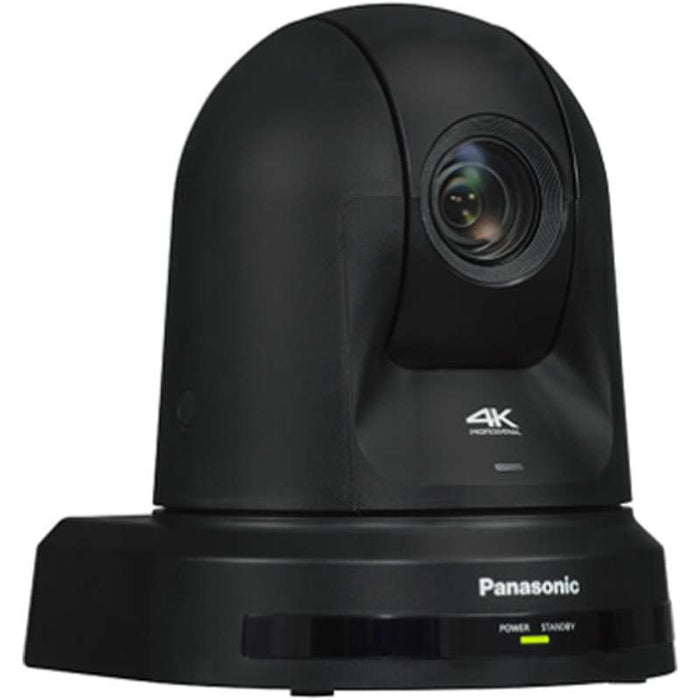

4K PTZ Camera, 24x Zoom, SDI/HDMI, Built-In Auto Tracking, NDI (Black)
4K PTZ Imaging with Broadcast-Level Detail
- 4K/30p PTZ imaging powered by an upgraded 1/2.5‑type 4K MOS sensor.
- Delivers up to 1,500 TV lines of true UHD resolution for crisp faces, text, and on‑screen content.
Wide Angle Coverage with 24x Optical Zoom
- 74.1° wide horizontal field of view captures entire classrooms, meeting rooms, or halls.
- 24x optical zoom enables tight close‑ups of speakers, slides, or whiteboards from a single camera position.
Built-In Auto Tracking
- Integrated auto‑tracking quickly locks onto and follows a single presenter.
- No external PC, server, or additional tracking hardware required.
Ultra‑Quiet, Smooth Pan/Tilt Operation
- Direct‑drive pan/tilt mechanism ensures smooth, responsive camera movement.
- Extremely quiet operation avoids distractions during classes, meetings, and worship services.

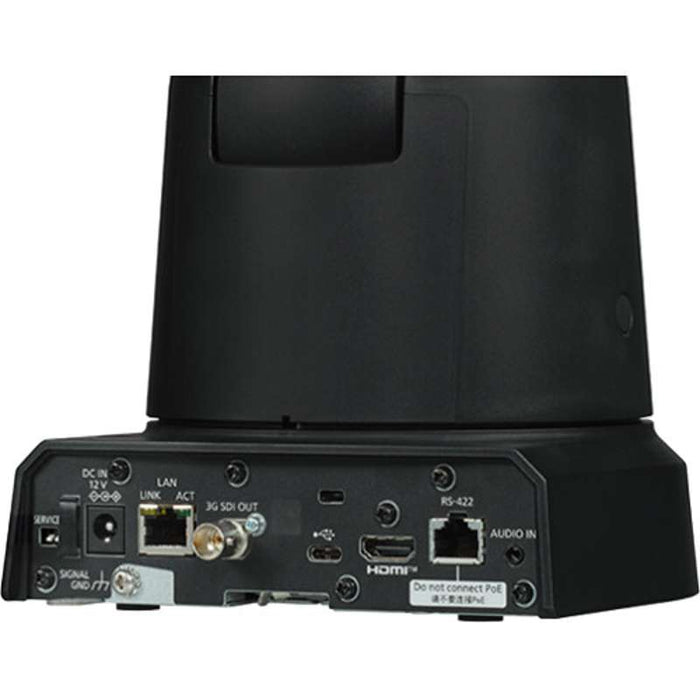

Professional Outputs & IP Streaming
- Simultaneous 3G‑SDI, HDMI, USB, and IP outputs for broadcast, production, and conferencing workflows.
- Supports NDI|HX version 2 (upgrade) and SRT for efficient, secure IP video transport.
High-Resolution Imaging for Learning & Presentation Spaces
The AW‑UE50KPJ5 uses an upgraded 1/2.5‑type 4K MOS sensor to produce crisp 4K/30p video with up to1,500 TV lines in UHD resolution. Fine details in facial expressions, text, and shared content remainclear, enhancing engagement for remote viewers. Its combination of a wide 74.1° field of view andpowerful 24x optical zoom allows the camera to convey the full ambience of classrooms and lecture hallswhile still capturing critical details on slides or whiteboards.
Polished Presentations with Automatic Speaker Tracking
Built‑in auto‑tracking enables the AW‑UE50KPJ5 to automatically detect and follow a single presenter,maintaining a consistently framed shot without the need for external tracking servers or a dedicatedcamera operator. This makes it ideal for online education, corporate briefings, and hybrid presentationswhere speakers move naturally but video quality must remain professional.
Efficient IP Production with NDI|HX v2
With support for NDI®|HX version 2, the AW‑UE50KPJ5 can transmit high‑quality video efficiently over IPusing limited network bandwidth. NDI auto‑discovery allows the camera’s feed to be routed easily toswitchers, recorders, and software production tools without complex network configuration.
Flexible System Integration & Smart Wiring
Multiple AW‑UE50 cameras can be controlled from a single Panasonic controller or PC, simplifyingmulti‑camera installations across classrooms, meeting rooms, or event spaces. PoE+ support enablesvideo, audio, control, and power to be delivered over a single LAN cable, while IP streaming inH.264/H.265 and still‑image JPEG output ensure seamless integration with modern streaming platformsand online conferencing systems.
