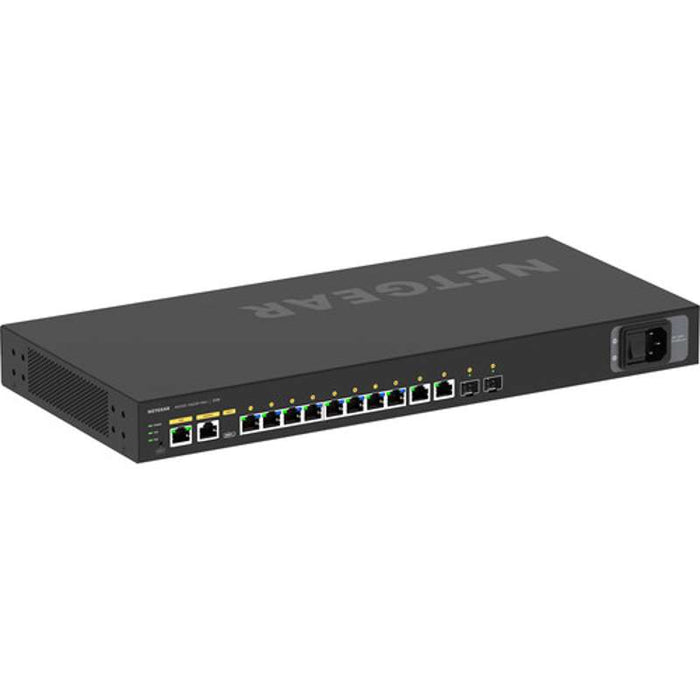

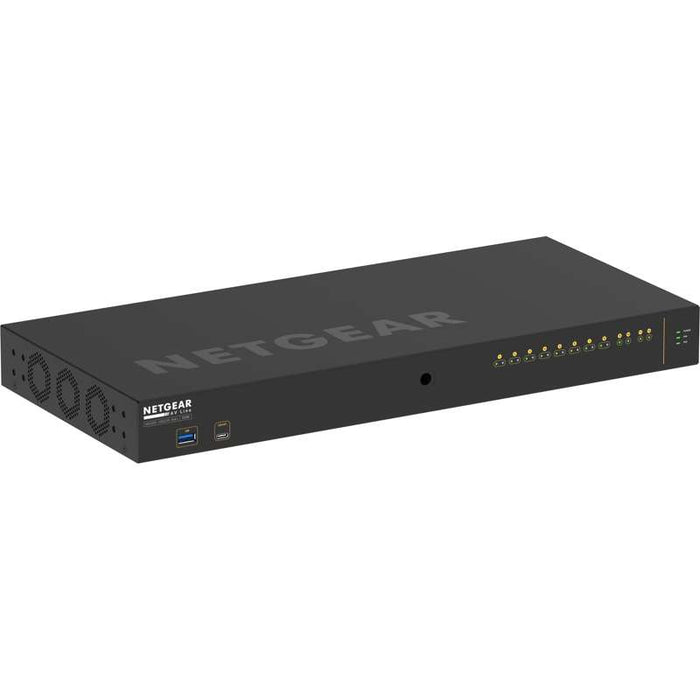

M4250-10G2XF-PoE+ AV Line Managed Switch (240W)
Key Features:
- 8 x 10/100/1000 base-T RJ45 PoE+ ports (802.3at) with 240W total power budget
- 2 x 10/100/1000 base-T dedicated RJ45 uplink ports
- 2 x 1G/10G SFP+ fiber uplink ports for high-speed 10Gbps stacking or uplinks
- AV-optimized web interface for simplified deployment of Dante, AVB, and NVX
- Out-of-the-box support for Audio Video Bridging (AVB)
- Quiet mode operation (30dB) for discreet installation in noise-sensitive areas
- Reversible mounting design to allow for front-facing or rear-facing port orientation
- Integrated mounting versatility for racks, walls, or under-table placement
10G Uplinks for Uncompressed Video
The M4250-10G2XF-PoE+ is a significant upgrade for systems requiring massive data throughput. By including two 10G SFP+ ports, this switch allows for non-blocking uplinks to a core switch or high-speed stacking between units. This is critical for AV-over-IP applications where multiple uncompressed 4K video streams must move across the network without latency or packet loss, ensuring a perfect visual experience.
Intelligent AV Configuration
Standard IT switches often require hours of command-line configuration to work correctly with AV protocols. This switch changes the game with a dedicated AV GUI. Users can select a port and apply a pre-configured template for specific hardware types, such as "Video with Dante" or "Q-SYS Audio." The switch automatically handles complex settings like IGMP Plus, Jumbo Frames, and Quality of Service (QoS), drastically reducing deployment time and potential errors.
Power and Flexibility in One Chassis
With a generous 240W PoE+ budget, this unit can easily power a full suite of AV edge devices, from touch panels and control processors to high-end PoE-powered speakers. Its compact form factor is designed for the modern workspace—small enough to be hidden behind a display or tucked under a conference table. The unique reversible mounting ears ensure that no matter where it is placed, the status lights or cables are exactly where the technician needs them to be.
