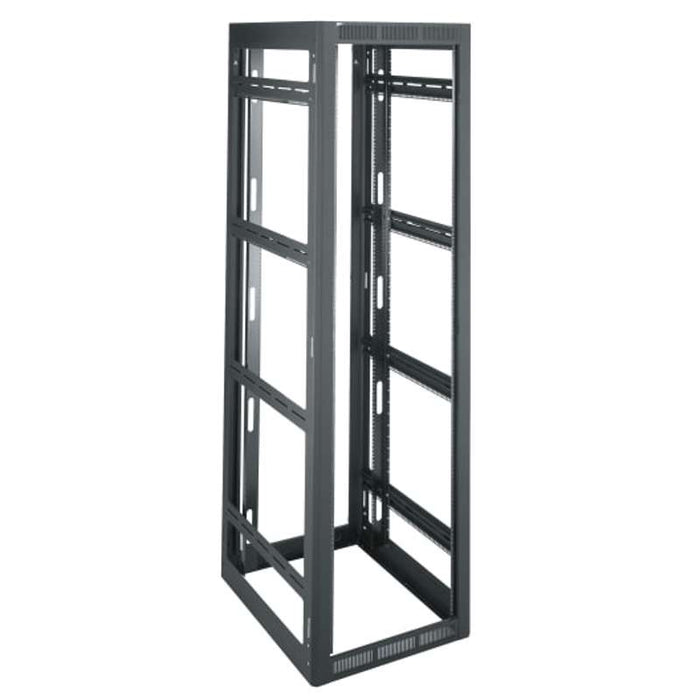

44 RU WRK Series 24-1/4 Inch Wide Rack, 27 Inches Deep without Rear Door
The WRK series was designed with a wider footprint for mounting equipment with thicker cable bundles that would be difficult to fit in a basic rack. It’s ideal for multi-bay installations, or to insure more cooling airflow. The WRK series also offers seismic certification and open or removable sides.
- Fully welded construction for strength
- 24-¼†overall width provides space for side cabling or cooling airflow
- Convenient lacing points and slotted rail brackets for cable management
- Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
- Extra-wide rackrail features cable pass-throughs to facilitate front-to-rear cabling
Dimensions & Measurements
-
Depth: 27.63 in (70.2 cm)
-
Height: 83.13 in (211.2 cm)
-
Panel Width: 19 in (48.3 cm)
-
Primary Package Weight: 161 lbs (73 kg)
-
Rack Units: 44 RU
-
UL Load Capacity: 2500 lbs (1,134 kg)
-
Usable Depth: 25.75 in (65.4 cm)
-
Usable Height: 77 in (195.6 cm)
-
Weight Capacity: 10000 lbs (4,535.9 kg)
-
Width: 24.25 in (61.6 cm)
Characteristics & Features
-
Federal Ops Country of Origin: USA
-
Gangable: Yes
-
Rack Rail Type: 10-32
-
Rear Door: No
-
Seismic Rated: Yes
Certifications & Warranties
-
ASCE Number: 7-10
-
Certifications: ASCE, TAA, UL Listed
-
Seismic Load Capacity: 900 lbs (408.2 kg)
