WR Series Roll Out Racks in Steel Rack - WR-37-32

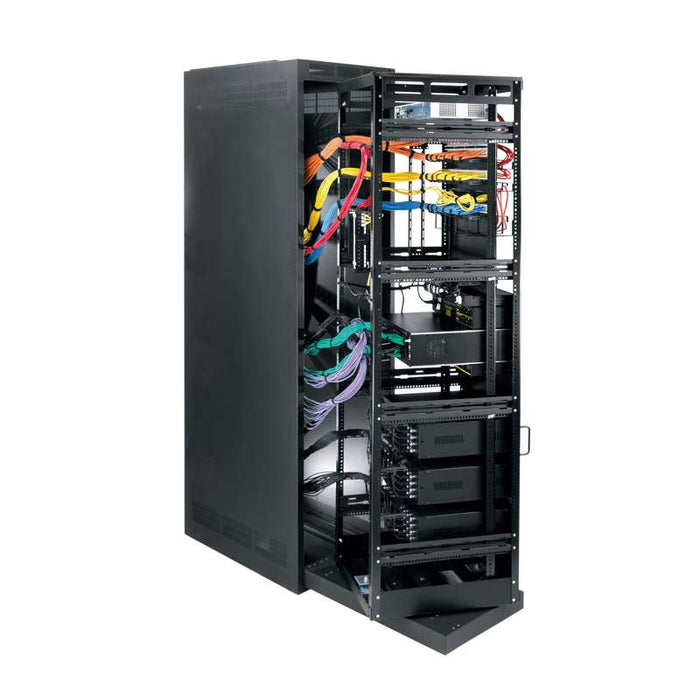

The WR Series was designed to provide rear access for equipment even when the equipment bays are placed up against a wall or back to back. Factory-assembled in its own host enclosure, the rack frame pulls out and rotates for service access. Specify a WR Series enclosure when easy access to rear equipment connections is required for larger audio, video and security equipment installations but an access aisle is not practical.
- Host enclosure can be pre-installed on-site
- Detachable rack frame can be integrated with equipment and tested off-site
- Requires no additional accessories to roll out and rotate
- Engineered ventilation is optimized for passive thermal management
- Rack frame features built-in cable management tie points
- 4” laser knockouts provided for cable pass-through and ganging multiple racks
- Standard front and rear 10-32 threaded rackrail with marked spaces
Dimensions & Measurements
-
Depth: 32.88 in
-
Height: 76.61 in
-
Product Weight: 257.8 lbs
-
Rack Units: 37 RU
-
Shipping Weight: 288 lbs (130.6 kg)
-
UL Load Capacity: 750 lbs (340.2 kg)
-
Usable Depth: 26 in
-
Usable Height: 64.75 in
-
Width: 24 in
Characteristics & Features
-
Federal Ops Country of Origin: USA
-
Finish: Black Wrinkle Powder Coat
-
Rack Rail Type: 10-32
