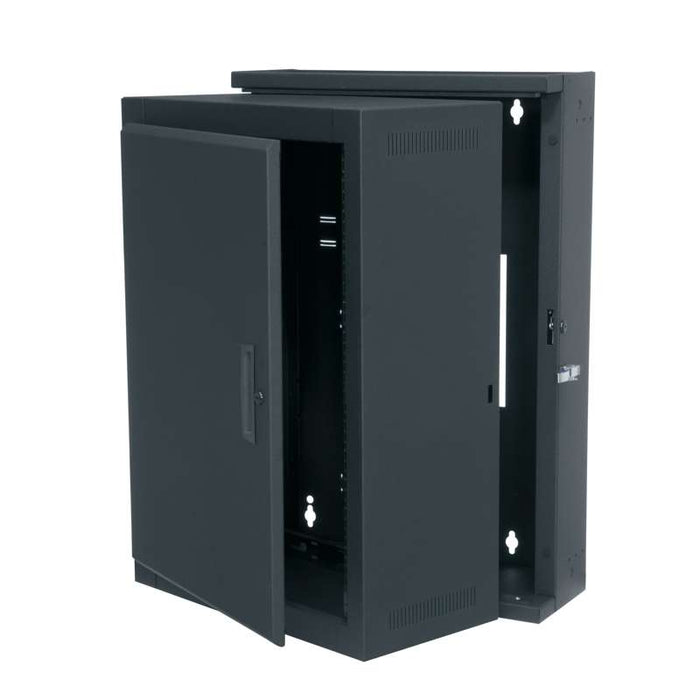

Middle Atlantic EWR Series Pivoting Wall Rack

EWR Series Pivoting Wall Rack - EWR-16-22SD (16 Rack units, 22 in Depth with Front door)

An economical solution for smaller systems, this pivoting, sectional wall cabinet provides unparalleled quality at an aggressive price and is ideal for use in both secured and unsecured areas.

• Fully welded construction for strength
• Patented Tool Free Quick-Mount™; system for center section mounting
• Center section swing is reversible, and can be both keylocked and padlocked
• Center section is keyed differently from optional front door for security
• Optimized for passive thermal management
• Fully assembled with solid front door (SD models only)
• Standard front adjustable 10-32 threaded rackrail

Dimensions & Measurements

• Depth: 22 in (55.9 cm)
• Height: 35 in (88.9 cm)
• Product Weight: 95 lbs (43.1 kg)
• Rack Units: 16 RU
• Shipping Weight: 115 lbs (52.2 kg)
• UL Load Capacity: 150 lbs (68 kg)
• Usable Depth: 20 in (50.8 cm)
• Usable Height: 28 in (71.1 cm)
• Width: 23.38 in (59.4 cm)

Characteristics & Features

• Federal Ops Country of Origin: Mexico
• Finish: Black Wrinkle Powder Coat
• Front Door: Yes
• Rack Rail Type: 10-32

Certifications & Warranties

• Certifications: CSA Standard, TAA, UL Listed
