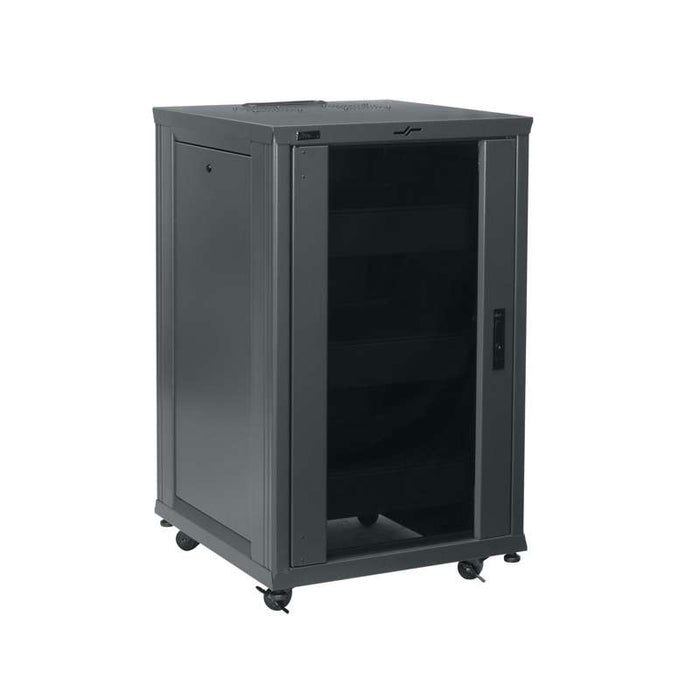

Essex RCS Series Pre-Configured Rack, RCS-1824
The Essex RCS Series Residential Configured Rack System offers exceptional quality and value at cost-effective prices for residential installers. It is completely assembled at the factory and ships with pre-installed accessories to save contractors time in the field while eliminating packaging waste.
- Fully welded steel construction
- Ships fully assembled to save time
- Locking removable side panels for easy integration
- Glass front door, locking rear access panel standard
- Includes front and rear adjustable rackrail
- Assembled with (3) 2RU, 16" deep shelves and (3) 1RU blank panels
- Top mounted DC fans
- One set of Essex accessory brackets included to mount vertical power or lace strips
- Add a bracket to mount additional Essex accessories, ESX-ACC-BKT
Dimensions & Measurements
-
CFM: 138
-
Depth: 24 in (61 cm)
-
Height: 38.62 in (98.1 cm)
-
Panel Width: 19 in (48.3 cm)
-
Product Weight: 111.4 lbs (50.5 kg)
-
Rack Units: 18 RU
-
Shipping Weight: 131 lbs (59.4 kg)
-
UL Load Capacity: 1200 lbs (544.3 kg)
-
Usable Depth: 20.1 in (51.1 cm)
-
Usable Height: 31.5 in (80 cm)
-
Width: 23.3 in (59.2 cm)
Characteristics & Features
-
Available Internationally: No
-
Color: Metallic Gray
-
Federal Ops Country of Origin: USA
-
Finish: Textured Metallic Gray Powder Coat
-
Rack Rail Type: 10-32
Certifications & Warranties
-
Certifications: TAA, UL Listed
