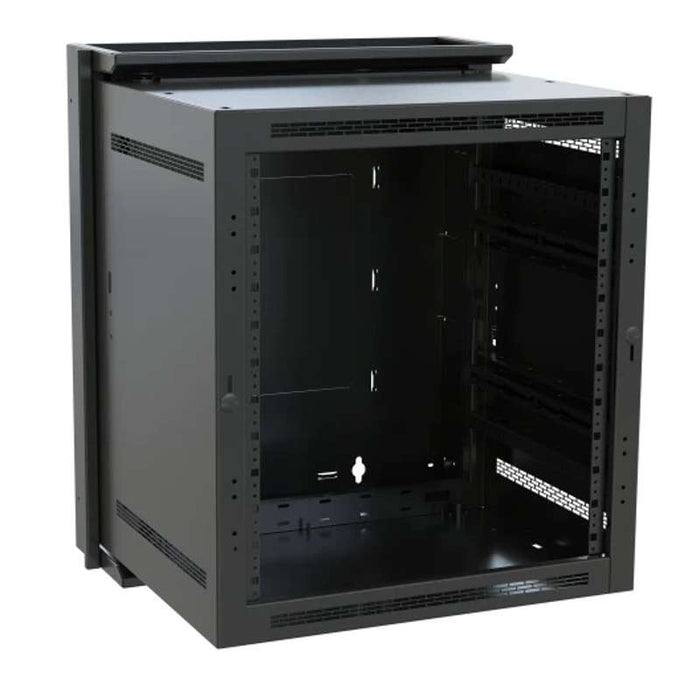

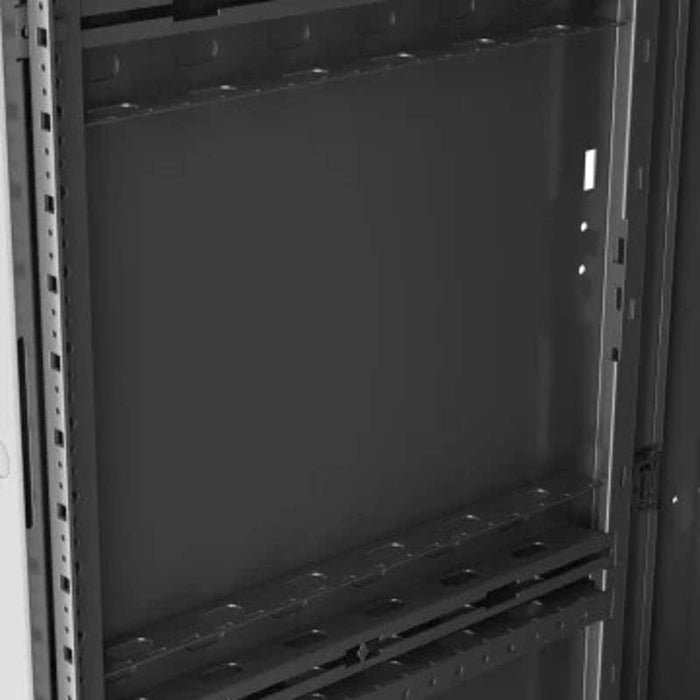

DWR Series Pivoting Wall Rack - DWR-12-22
The DWR Series Wall Racks are now Forward and Lever Lock™ compatible providing maximum mounting capacity on and off the rail and a suite of tool-free accessories making rack installations 5Xs faster!
12RU and 22" Deep

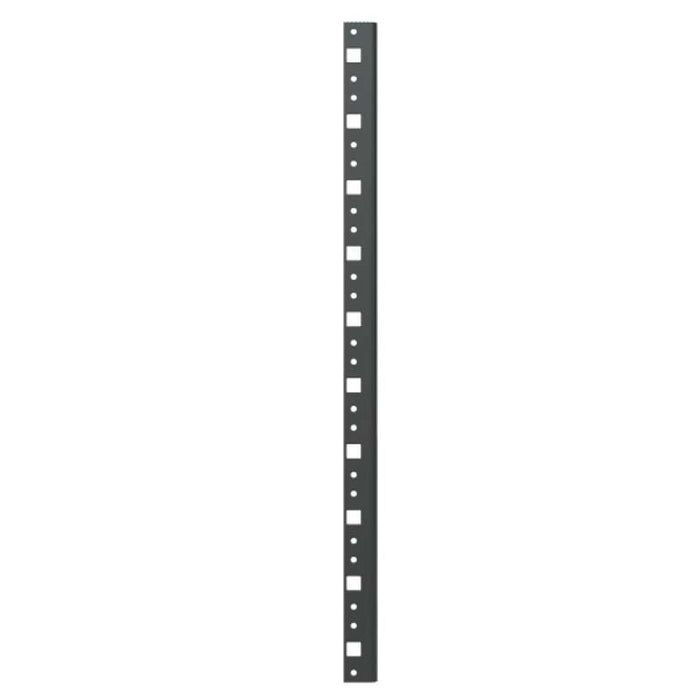

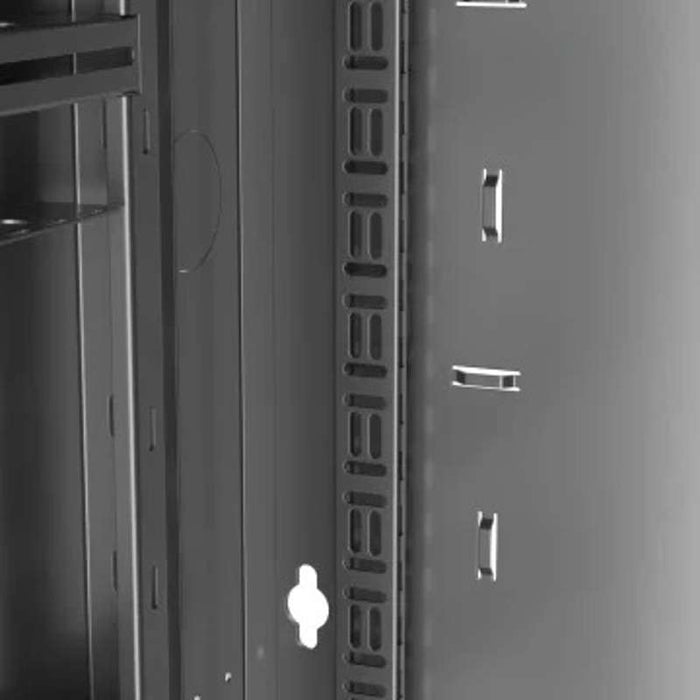

- Now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels and horizontal cable management. Rear rackrail is optional (FWD-DWR-RRxx)

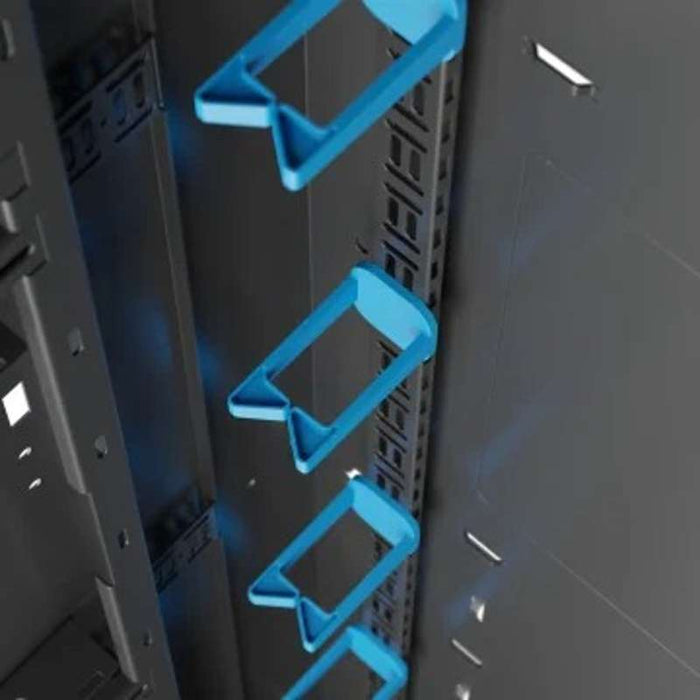

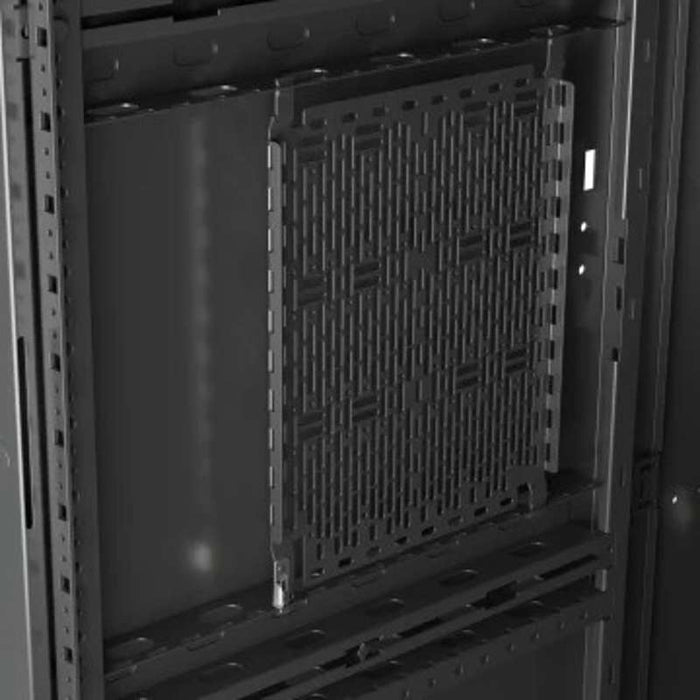

- Now accepts patented Lever Lock™ tool free and hardware free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP)
- Robust welded steel construction, with Seismic certification when used with DWRSR-ZL latch
- Center section rear channel accommodates optional PDT and PD Slim PDUs to save space

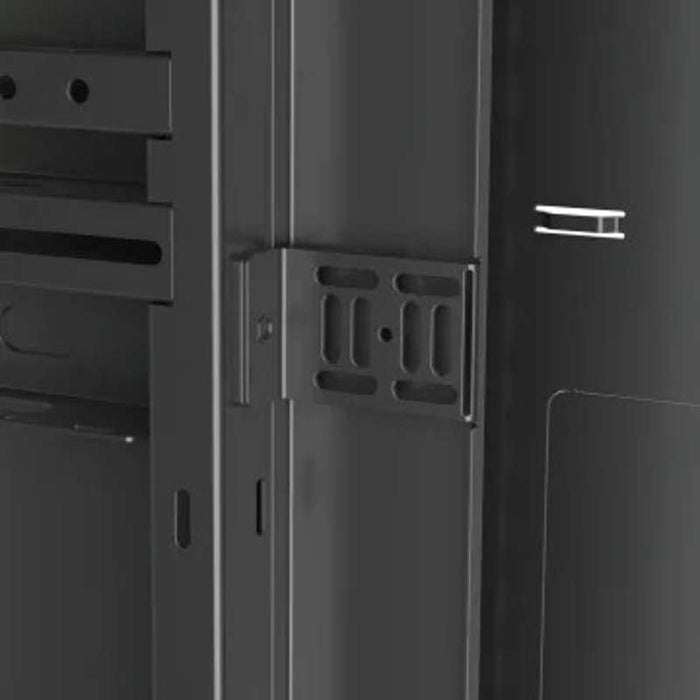

- Tool-Free Quick-Mount™ system for easy, one-person mounting of the center section to the backpan on the jobsite

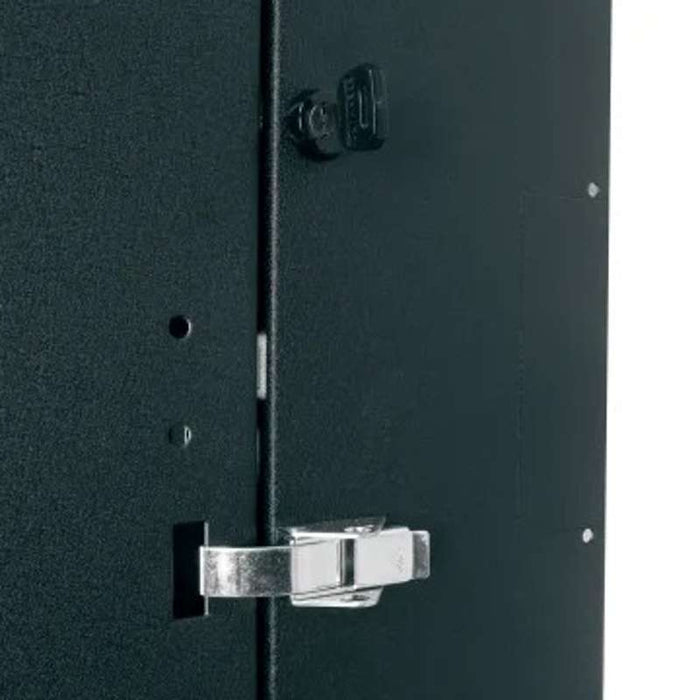

- Optional minimum-clearance latch allows side-by-side or interior corner mounting to save room

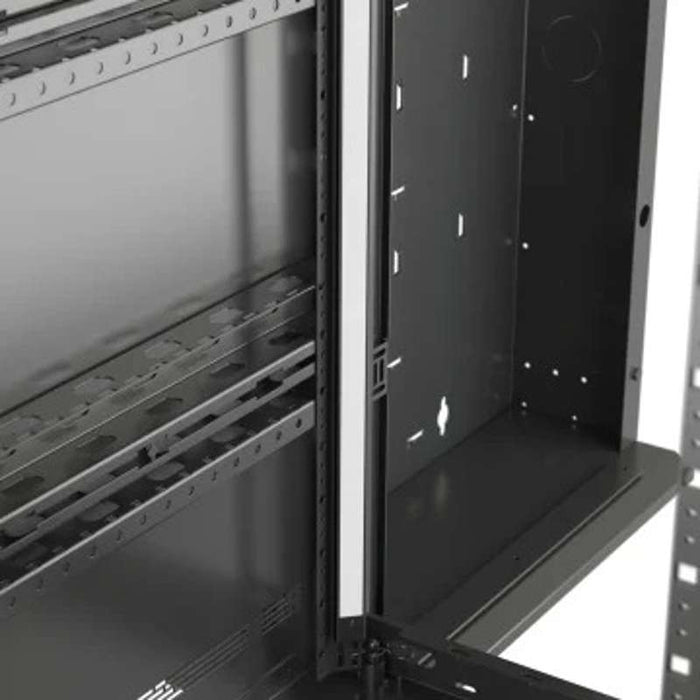

- Center section swing is reversible, and can be both key-locked and padlocked
- Center section is keyed differently from optional front door for additional security
- Designed for active or passive cooling to support all systems
Dimensions & Measurements
- Depth: 22
- Height: 28.06 in (71.3 cm)
- Product Weight: 53.5 lbs (24.3 kg)
- Rack Units: 12 RU
- Shipping Weight: 90 lbs (40.8 kg)
- UL Load Capacity: 200 lbs (90.7 kg)
- Usable Depth: 20 in (50.8 cm)
- Usable Height: 21 in (53.3 cm)
- Width: 23.4 in (59.4 cm)
Characteristics & Features
- Available Internationally: Yes
- Color: Black
- Federal Ops Country of Origin: USA
- Finish: Black Wrinkle Powder Coat
- Forward Compatible: Yes
- Front Door: No
- Material: Steel
- Rack Rail Type: Forward Rackrail
- Seismic Rated: Yes
- UPC: 656747005220
Certifications & Warranties
- Certifications: CSA Standard, TAA, UL Listed
- Patent Number: 7278183
- Seismic Load Capacity: 155 lbs (70.3 kg)
