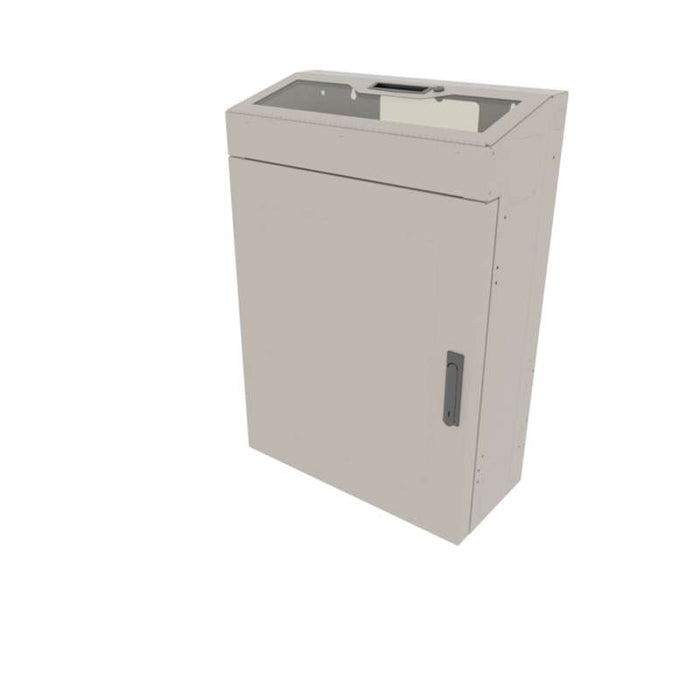

With a low-profile, patented design, this pre-configured VWM Series Wall Cabinet is ideal for vertically mounting deeper equipment in a “knobs-up” orientation within 4 spaces and 30” usable depth. It includes everything needed for a simple solution, but also can support additional customization in Lever Lock™; small device mounting within the cabinet and/or on the door, thermal management, cable management and power distribution for a complete system that ensures uptime and reliability on the wall.

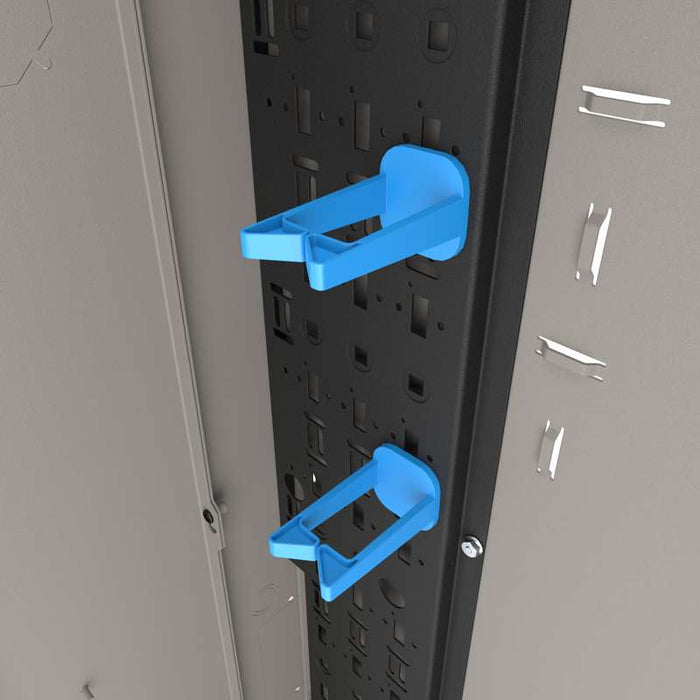

- Now Forward Compatible with native mounting for Forward Cable Management in the backpan!
- 4 spaces and 30” of usable depth for vertical “knobs up” equipment mounting
- Rackrail features both 10-32 thread and cage nut
- Flexible position spaces to mount the rackrail where it’s needed
- Split door with hinged solid top that enables end-user access to controls but restricted visibility
- Both door and hinged top are lockable and keyed separately for security
- Laser knockouts on the top, bottom and sides for cable entry and thermal management
- Integral electrical box simplifies power distribution
- Finished in a black textured powder coat
Dimensions & Measurements
-
Depth: 12 inches
-
Height: 36 inches
-
Width: 25 inches
-
Product Weight: 62.5 lbs
-
Shipping Weight: 73 lbs (33.1 kg)
-
UL Load Capacity: 150 lbs (68 kg)
-
Usable Depth: 27.8 inches
-
Rack Units: 4 RU
Characteristics & Features
-
Available Internationally: Yes
-
Color: Black
-
Door Type: Solid Door
-
Country of Origin: USA
-
Finish: Black Wrinkle Powder Coat
-
Forward Compatible: Yes
-
Handles: 25mm x 150mm Swing Handle
-
Material: Steel
-
Rack Rail Type: 10-32 and Cage Nut
-
Rack Type: Wall-mounted
