Luxul 5 Port Unmanaged PoE+ Switch With POE Passthrough

by Luxul
SKU: LUXSW10005PD

MSKU: SW-100-05PD

Sale Sale
Original price $120.00
Original price $120.00 - Original price $120.00
Original price $120.00
Current price $1.00
$1.00 - $1.00
Current price $1.00
Call to Order

Free shipping on all orders.

Typically ships in 2-4 days.

Specifications

Taa: No
Use case: Business,education
Request a custom quote >

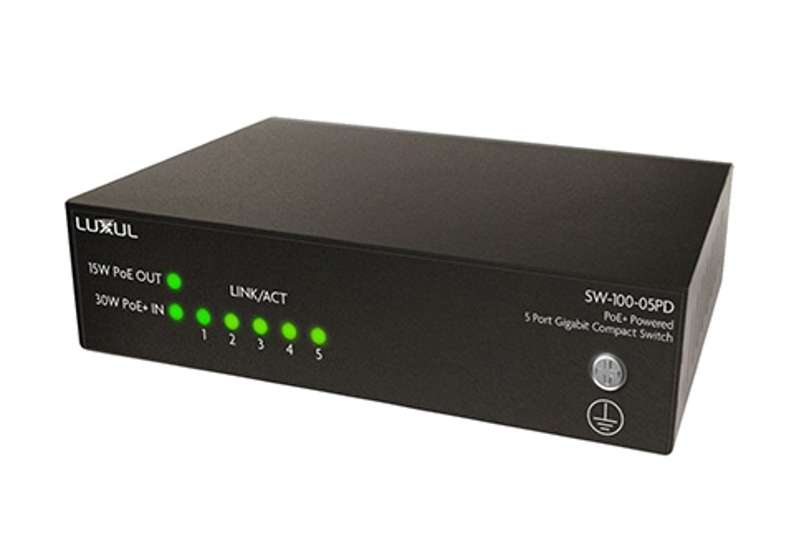

5 Port Unmanaged PoE+ Switch With POE Passthrough

The SW-100-05PD is a 5 port PoE+ powered switch that is powered from a PoE+ switch or injector powered uplink and provides an additional four ports of Gb Ethernet connectivity. One of the Gb Ethernet ports allows the powering of a PoE 802.3af device (pass through port) such as a camera, control system interface, or AV over IP receiver. The durable metal enclosure includes detachable wing brackets for mounting and attachable magnet feet for easy mounting to metal surfaces.

Use the SW-100-05PD to:

  • Connect up to 4 devices to the network without having to be plugged into a wall outlet
  • Provide network connectivity in a wide range of environments when space is limited and when an outlet is not available, like behind TVs or monitors in digital signage applications, media enclosures where space is limited, or in an AV rack to provide a couple more connections

Features:

  • Fanless for silent operation
  • 1 dedicated uplink port (30W PoE+ IN to power switch) ensures 4 reserved ports for providing network connectivity
  • 1 PoE output port to power a PoE device (15W maximum)
  • Durable compact metal case
  • Includes rubber and magnetic feet, keyholes, and detachable wing brackets for desktop, wall, and flexible metal rack mounting options
  • Plug and Play
  • Three-year limited warranty

Dimensions & Measurements

  • Height: 1 in (2.5 cm)
  • Max Power Consumption: 30 W
  • PoE Power Budget: 15W port 4 only
  • Product Weight: 0.5 lbs (0.2 kg)
  • Shipping Dimensions: 8.9" x 6.2" x 2.6" (226.1 x 157.5 x 66.1 mm)
  • Shipping Weight: 1.6 lbs (0.7 kg)
  • Switching Capacity: 10 GBPS
  • Width: 3.9 in (9.9 cm)

Characteristics & Features

  • Connection Type: Wired
  • Port Location: Rear
  • Power Cord: US Cord
  • Switch Type: PoE
  • Unmanaged: Yes
  • TAA Compliant: No
  • UPC: 655003921328
