Luxul 24 PoE+ | 4 (10G) SFP+ Ports – 1Gb L2/L3 Managed Switch, US Power Cord

24 PoE+ | 4 (10G) SFP+ Ports – 1Gb L2/L3 Managed Switch, US Power Cord

The SW-615-24P-R is a 24 port PoE+ rear-facing single space rackmount 1Gb switch with 4 SFP+ 10Gb ports (aggregable up to 40Gbps) with a total PoE power budget of 370W. Each of the SFP+ ports can be used alone or aggregated together to allow 20 or 40Gbps throughput to another switch. This L2/L3 switch with 128Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface allowing easy and comprehensive administration. Variable speed fans for quiet operation. ProWatch Integrated for support of remote monitoring and management. ACL ingress and egress filtering.

Features

• Refreshed, simplified user interface
• PoE Self-Healing with auto-recovery and power scheduling
• Supports inbound and outbound (ingress and egress) ACL filtering
• Layer 2/Layer 3 capabilities (static routing included)
• Multicast/IGMP snooping and querying feature
• Per port unregistered flooding
• 802.1Q VLAN and QoS support including DCSP
• Dante and AES67 compatibility
• AV-over-IP compatible
• 24 PoE+ 1Gb Ports
• 370 Watt total PoE budget

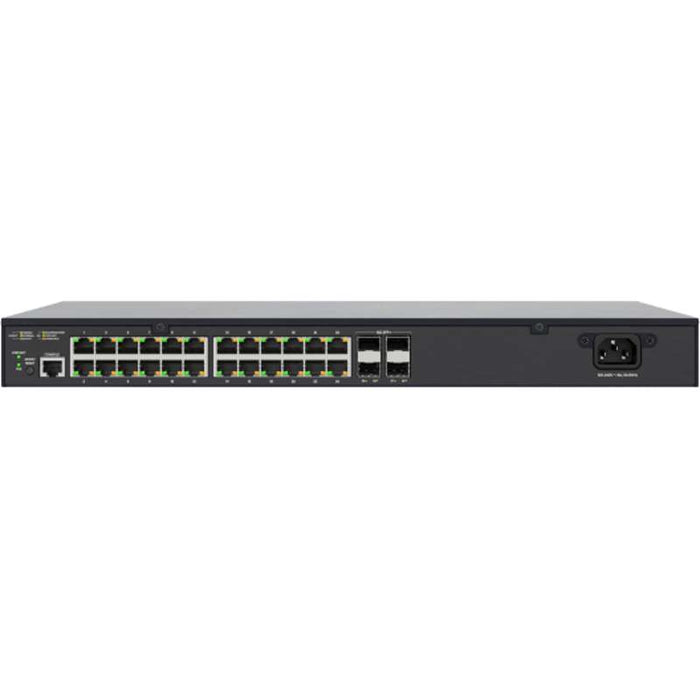

• Rear-facing ports
• 4 SFP+ Ports
• Aggregable up to 40Gbps
• Rack Mountable
• ACL ingress and egress filtering
• Three Year Limited Warranty

This Package Includes:

• 24 PoE+ | 4 (10G) SFP+ Ports – 1Gb L2/L3 Managed Switch
• Power and Console Cables
• Rack Ears and Set of Four (4) Adhesive Feet
• Quick Install Guide & Regulatory Documentation

Dimensions & Measurements

• Height: 1.75 in (4.4 cm)
• Length: 17.4 in (44.2 cm)
• Max Power Consumption: 439W @ 100VAC
• Operating Temperature: 32° to 122°F (0° to 50°C)
• PoE Power Budget: 370W
• Product Weight: 7.1 lbs (3.2 kg)
• Switching Capacity: 128 GBPS
• Width: 8.3 in (21.1 cm)

Characteristics & Features

• Connection Type: Wired
• Jumbo Frame Support: 10240
• Layer Support: L2, L3
• Multicast: IGMP v1/2/3, Per Port Unregistered Flooding, Querier, Snooping
• Number of Fiber SFP Ports: 4
• Number of Ports: 24
• PoE Self Healing: Per Port Basis
• Port Location: Rear
• Power Cord: US Cord
• Spanning Tree: MSTP, RSTP, STP
• Special Features: PoE Self Healing, ProWatch Capable
• SPF Port Type: 4 x 10 Gigabit
• Switch Type: Managed
• PoE+
• VLAN Compliance: 802.1Q max 4094 VIDs & VLAN trunking
• VLAN ID: 4095
• Wired Data Rate: 1Gbps
