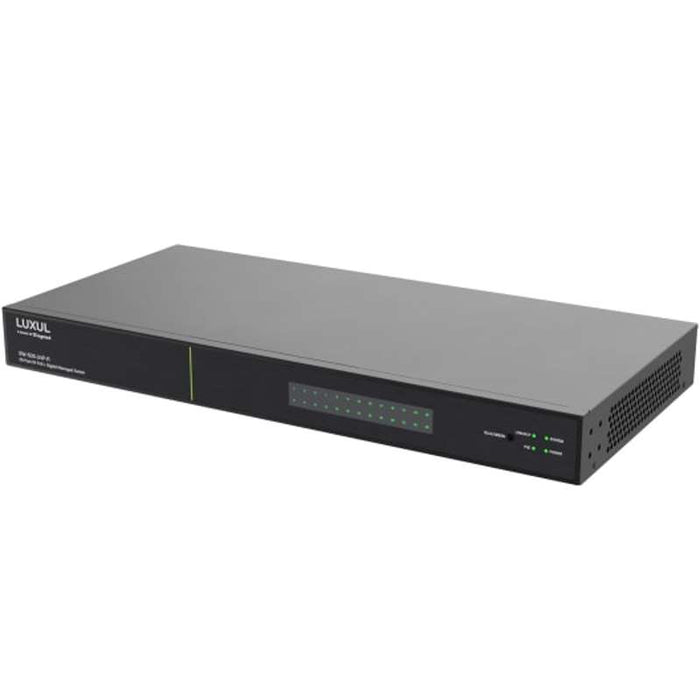

24 PoE+ | 2 Combo RJ45/SFP Rear-Facing Ports - 1Gb L2/L3 Managed Switch, US Power Cord
The SW-505-24P-R includes 24 1-Gigabit PoE+ Ethernet ports, two non-powered Ethernet ports, and two 1-Gigabit SFP expansion ports (SFP and non-powered ethernet ports cannot be used at the same time). Both 1 Gb SFP ports can be aggregated for a connection speed of up to 2 Gb. The 24 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at-compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 250W for all PoE+ ports combined. The advanced Layer 2/Layer 3 features a refreshed easy-to-use management interface to simplify configuration and make this switch ideal for use in single-switch AVoIP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously.
Features
- Refreshed, simplified user interface
- Supports inbound (ingress) ACL filtering
- Layer 2/Layer 3 capabilities (static routing included)
- Multicast/IGMP snooping and querying feature
- Per port unregistered flooding
- 52Gbps switching capacity
- 802.1Q VLAN and QoS support including DCSP
- Dante and AES67 compatibility
- AV-over-IP compatible
- PoE Monitoring: auto-recovery and power scheduling
- 24 PoE+ powered capable ports (IEEE 802.3at)
- 250 Watt total PoE budget
- Standard 19-inch rack mount
- 2 RJ45/SFP Combo Ports
- Dynamic PoE allocation
- Rear-facing ports
- Three Year Limited Warranty
This Package Includes:
- 24 PoE+ | 2 Combo RJ45/SFP Ports - 1 Gigabit L2/L3 Managed Switch
- Power Cord
- Rack Ears and Set of Four (4) Rubber Feet
- Quick Install Guide & Regulatory Documentation
Dimensions & Measurements
- Height: 1.75 in (4.4 cm)
- Length: 17.4 in (44.2 cm)
- Max Power Consumption: 293W @ 100VAC
- Operating Temperature: 32° to 104°F (0° to 40°C)
- PoE Power Budget: 250W
- Product Weight: 6.6 lbs (3 kg)
- Switching Capacity: 52 GBPS
- Width: 8.3 in (21.1 cm)
Characteristics & Features
- Connection Type: Wired
- Jumbo Frame Support: 9216
- Layer Support: L2, L3
- Multicast: IGMP v1/2/3, Per Port Unregistered Flooding, Querier, Snooping
- Number of Fiber SFP Ports: 2
- Number of Ports: 24
- PoE Self Healing: Per Port Basis
- Port Location: Rear
- Power Cord: US Cord
- Spanning Tree: MSTP, RSTP, STP
- Special Features: PoE Self Healing, ProWatch Capable
- SPF Port Type: 2 x 1 Gigabit
- Switch Type: Managed
- PoE+
- VLAN Compliance: 802.1Q max 4094 VIDs & VLAN trunking
- VLAN ID: 4095
- Wired Data Rate: 1Gbps
