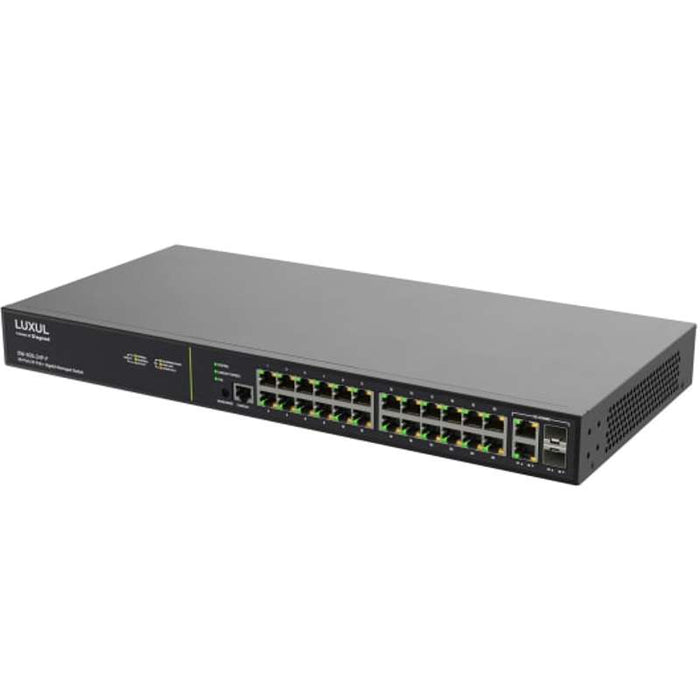

Luxul 1GB L2/L3 Managed Switch with 24 PoE+ / 2 Combo Front Facing Ports

24 PoE+ | 2 Combo RJ45/SFP Front-Facing Ports - 1Gb L2/L3 Managed Switch

The SW-505-24P-F includes 24 1-Gigabit PoE+ Ethernet ports, two non-powered Ethernet ports, and two 1-Gigabit SFP expansion ports (SFP and non-powered ethernet ports cannot be used at the same time). Both 1 Gb SFP ports can be aggregated for a connection speed of up to 2 Gb. The 24 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at-compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 370W for all PoE+ ports combined. The advanced Layer 2/Layer 3 features a refreshed easy-to-use management interface to simplify configuration and make this switch ideal for use in single-switch AVoIP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously.

Features

• Refreshed, simplified user interface
• Supports inbound (ingress) ACL filtering
• Layer 2/Layer 3 capabilities (static routing included)
• Multicast/IGMP snooping and querying feature
• Per port unregistered flooding
• 52Gbps switching capacity
• 802.1Q VLAN and QoS support including DCSP
• Dante and AES67 compatibility
• AV-over-IP compatible
• PoE Monitoring: auto-recovery and power scheduling
• 24 PoE+ powered capable ports (IEEE 802.3at)
• 370 Watt total PoE budget
• Standard 19-inch rack mount
• 2 RJ45/SFP Combo Ports
• Dynamic PoE allocation
• Front-facing ports
• Three Year Limited Warranty

This Package Includes:

• 24 PoE+ | 2 Combo RJ45/SFP Ports - 1 Gigabit L2/L3 Managed Switch
• Power Cord
• Rack Ears and Set of Four (4) Rubber Feet
• Quick Install Guide & Regulatory Documentation

Dimensions & Measurements

• Height: 1.75 in (4.4 cm)
• Length: 17.4 in (44.2 cm)
• Max Power Consumption: 293W @ 100VAC
• Operating Temperature: 32° to 104°F (0° to 40°C)
• PoE Power Budget: 370W
• Product Weight: 6.6 lbs (3 kg)
• Switching Capacity: 52 GBPS
• Width: 8.3 in (21.1 cm)

Characteristics & Features

• Connection Type: Wired
• Jumbo Frame Support: 9216
• Layer Support: L2, L3
• Multicast: IGMP v1/2/3, Per Port Unregistered Flooding, Querier, Snooping
• Number of Fiber SFP Ports: 2
• Number of Ports: 24
• PoE Self Healing: Per Port Basis
• Port Location: Front
• Power Cord: US Cord
• Spanning Tree: MSTP, RSTP, STP
• Special Features: PoE Self Healing, ProWatch Capable
• SPF Port Type: 2 x 1 Gigabit
• Switch Type: Managed
• PoE+
• VLAN Compliance: 802.1Q max 4094 VIDs & VLAN trunking
• VLAN ID: 4095
• Wired Data Rate: 1Gbps
