16 PoE+ | 2 Combo RJ45/SFP Ports - 1Gb L2/L3 Managed Switch, US Power Cord

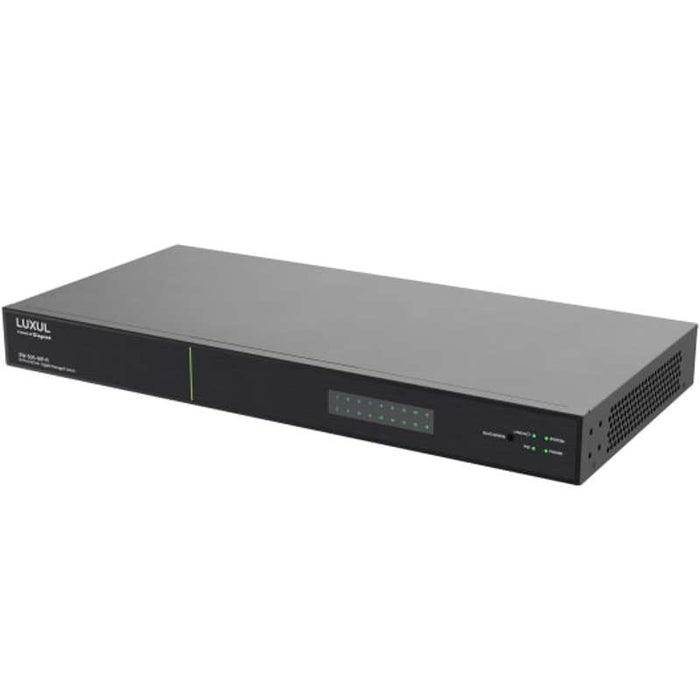

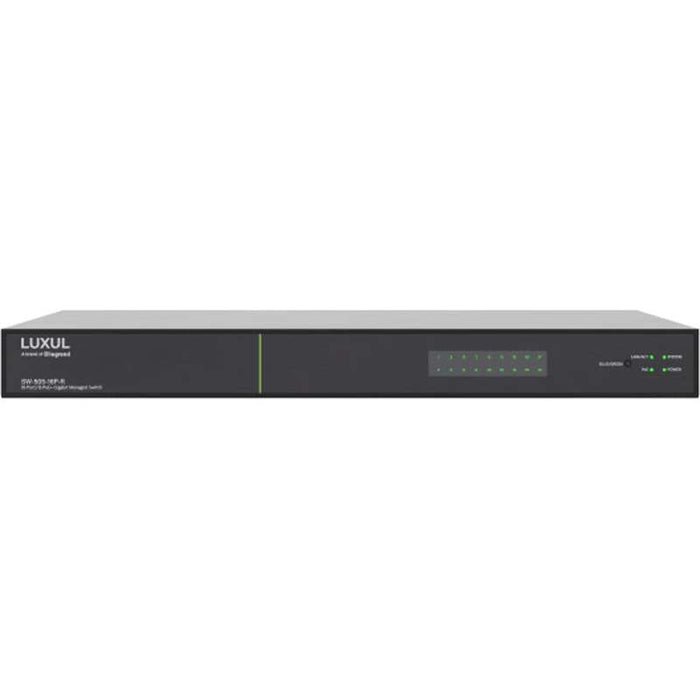

The SW-505-16P-R is a 16 port PoE+ rear-facing single-space rackmount 1Gb switch with 2 RJ45/SFP 1Gb ports (aggregable up to 2Gbps) with a total PoE power budget of 185W. Each of the SFP ports can be used alone or aggregated together up to 4Gbps. This L2/L3 switch with 36Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface allowing easy and comprehensive administration. Variable speed fans for quiet operation. ProWatch compatible for support of remote monitoring and management. ACL ingress filtering.
Features
- Refreshed, simplified user interface
- PoE Self-Healing with auto-recovery and power scheduling
- Supports inbound (ingress) ACL filtering
- Layer 2/Layer 3 capabilities (static routing included)
- Multicast/IGMP snooping and querying feature
- Per port unregistered flooding
- 802.1Q VLAN and QoS support including DCSP
- Dante and AES67 compatibility
- AV-over-IP compatible
- 16 PoE+ powered capable ports
- 185 Watt total PoE budget

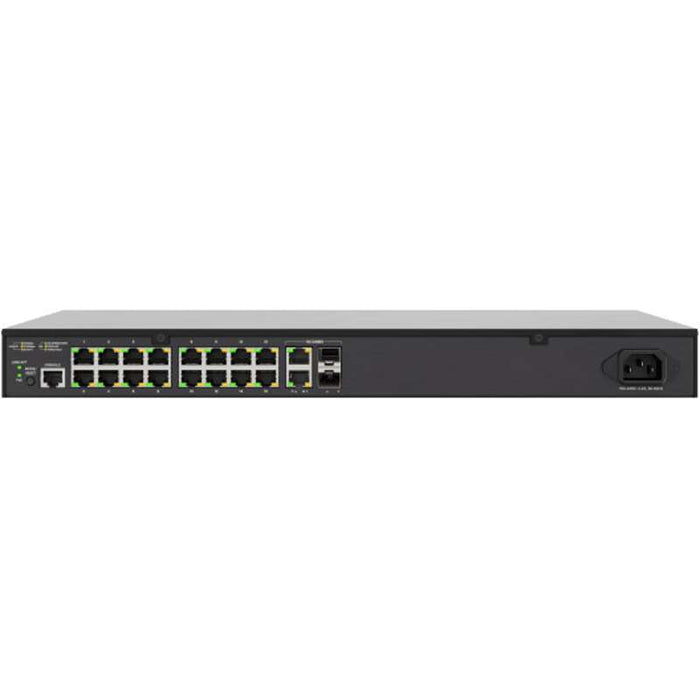

- Rear-facing ports
- 2 RJ45/SFP Combo Ports
- Dynamic PoE allocation
- Rack Mountable
- Three Year Limited Warranty
This Package Includes:
- 16 PoE+ | 4 Combo RJ45/SFP Ports - 1Gb L2/L3 Managed Switch
- Power Cord
- Rack Ears and Set of Four (4) Rubber Feet
- Quick Install Guide & Regulatory Documentation
Dimensions & Measurements
- Height: 1.75 in (4.4 cm)
- Length: 17.4 in (44.2 cm)
- Max Power Consumption: 152W @ 100VAC
- Operating Temperature: 32° to 104°F (0° to 40°C)
- PoE Power Budget: 185 W
- Product Weight: 6.2 lbs (2.8 kg)
- Switching Capacity: 36 GBPS
- Width: 14.75 in (37.5 cm)
Characteristics & Features
- Connection Type: Wired
- Jumbo Frame Support: 9216
- Layer Support: L2, L3
- Multicast: IGMP v1/2/3, Per Port Unregistered Flooding, Querier, Snooping
- Number of Fiber SFP Ports: 2
- Number of Ports: 16
- PoE Self Healing: Per Port Basis
- Port Location: Rear
- Power Cord: US Cord
- Spanning Tree: MSTP, RSTP, STP
- Special Features: PoE Self Healing, ProWatch Capable
- SPF Port Type: 2 x 1 Gigabit
- Switch Type: Managed
- PoE+
- VLAN Compliance: 802.1Q max 4094 VIDs & VLAN trunking
- VLAN ID: 4095
- Wired Data Rate: 1Gbps
