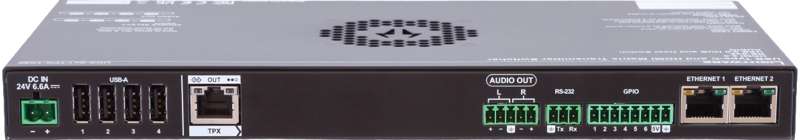

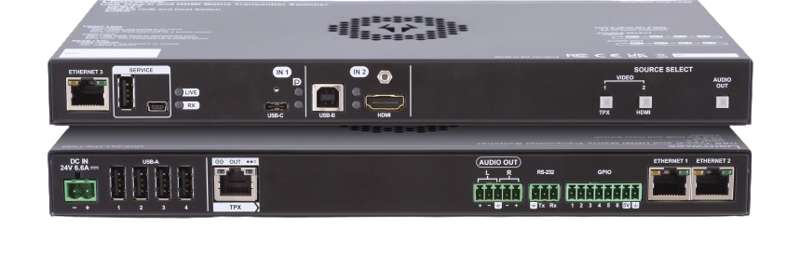

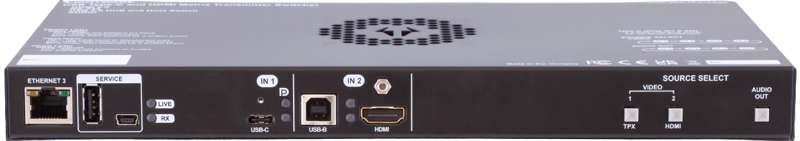

Lightware UCX-2x1-TPX-TX20 USB Type-C and HDMI Switcher Transmitter
The Lightware UCX-2x1-TPX-TX20 is a universal switcher transmitter designed for seamless AV integration in modern workspaces. It supports video resolutions up to 4K@60Hz 4:4:4 through USB-C and HDMI inputs, ensuring high-quality video transmission. This transmitter is part of a transmitter-receiver configuration that provides advanced signal management and connectivity.
Features
-
Single CAT Connectivity: Supports single CAT connectivity between TX and RX devices, extending video, audio, and control signals up to 100 meters.
-
USB-C Input: Provides USB-C input connectivity for 4K video, audio, data, and power over a single connection.
-
Multiple USB 2.0 Connections: Allows for multiple USB 2.0 connections for various USB devices like cameras, speakerphones, touch monitors, and USB-HID devices.
-
Independent USB Host Switching: Supports easy switching between multiple USB hosts, accommodating up to 8 devices (4 at the transmitter side and 4 at the receiver side).
-
Room Device Control: Enables room device control via Ethernet (TCP/IP) or Serial connections.
-
Power Delivery: Provides remote power to the connected receiver up to the power limit of 25.4W of the PoE+ specification.
-
Enhanced Security: Offers advanced security features including NIST FIPS 140-2 certified cryptography.
-
Customizable Welcome Screen: Allows for custom corporate logos and on-screen display warning messages.
-
Audio De-embedding: Supports uncompressed HDMI 4K signal formats and audio de-embedding.
