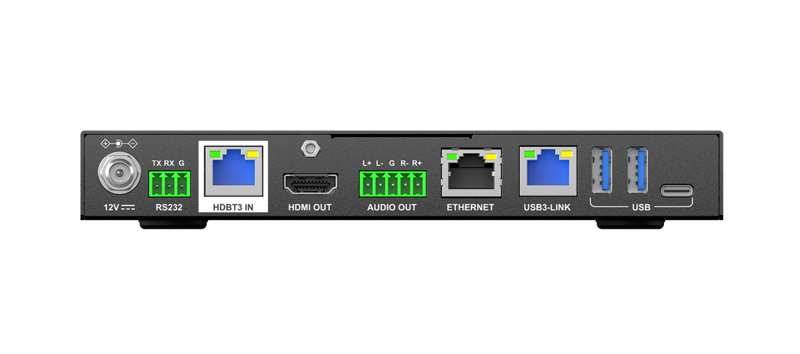

Liberty AV Solutions TeamUp+ Series HDBaseT3 & USB3 Receiver

TeamUp+ Series HDBaseT3 & USB3 Receiver

18G 4K60 and USB3 HDBaseT receiver designed to pair with theTU-DS42U-H3 TeamUp+ Dual Screen USB3 Collaboration Switcher.

Key Features

• HDBaseT 3.0 input supporting uncompressed 18G 4K60 video, Gigabit Ethernet, USB 2.0, and RS‑232 extension
• Dedicated USB3 Link input for extending USB 3.2 Gen 1 data from the TU‑DS42U‑H3 collaboration switcher/extender
• USB hub and all USB traffic support full USB 3.2 Gen 1 performance when the USB3 Link is used
• 2× USB‑A and 1× USB‑C client ports for connecting USB peripherals such as cameras, interactive displays, touch interfaces, and other USB devices
• Three local USB client ports combine with the four client ports on the TU‑DS42U‑H3 to create a 7‑port USB 3 hub system

Product Overview

The TeamUp+ Series HDBaseT3 & USB3 Receiver is designed to operate as the display‑sideendpoint for the TU‑DS42U‑H3 Dual Screen USB3 Collaboration Switcher. It extends high‑bandwidthvideo, USB, network, and control signals over HDBaseT 3.0, enabling clean and reliabledeployments in professional BYOM and collaboration environments where equipment must belocated away from the user interface.

By supporting uncompressed 18G HDMI video up to 4K60, along with Gigabit Ethernet, USB 2.0,and RS‑232 over HDBaseT, the receiver ensures consistent performance for demanding AVapplications. The additional USB3 Link connection enables true USB 3.2 Gen 1 extension from thecollaboration switcher, maintaining high‑speed data performance required for modern USBperipherals such as conferencing cameras, interactive displays, and advanced control devices.

With three local USB client ports, the receiver expands the overall USB capacity of the system.When combined with the USB ports on the TU‑DS42U‑H3, it creates a centralized seven‑port USBhub that automatically follows the active host—delivering a seamless, professional BYOMexperience. This design makes the HDBaseT3 & USB3 Receiver an ideal solution for enterpriseboardrooms, training spaces, and large collaboration rooms requiring long‑distance signalextension and flexible USB connectivity.
