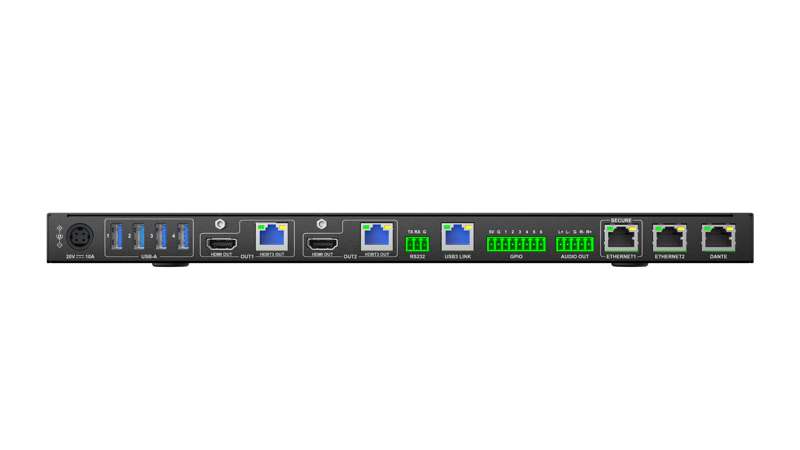

TeamUp+ Series Dual Screen USB3 Collaboration Extender / Switcher
BYOM dual‑display collaboration switcher and extender featuring HDBaseT 3.0 transport,DisplayLink, and DP‑MST support for advanced dual‑screen USB‑C collaboration environments.
Key Features
- 4×2 BYOM conference presentation switch integrating video, audio, USB, control, and Ethernet
- Dual USB‑C and dual HDMI + USB‑B inputs; all input ports support cable‑lock connections
- Dual HDMI and HDBaseT 3.0 matrix outputs supporting uncompressed 18G 4K60 video, audio, USB, and PoH+ long‑distance transmission
- USB3 over HDBaseT output for USB 3.2 Gen 1 extension and switching
- Two full‑featured USB‑C inputs supporting 4K video, USB 3 data, Gigabit Ethernet, and up to 60W charging on both inputs
- USB‑C inputs support DisplayPort Alt Mode with dual‑screen output via DP‑MST + DisplayLink technology for a single‑cable dual‑display experience
- Supports automatic switching, front‑panel button switching, API switching, and Web UI control
- Automatic USB3 host switching for a seamless professional BYOM experience
- Four USB 3 device ports for connecting conferencing peripherals such as cameras and speakerphones
- One balanced audio output for connection to external audio equipment
- RS‑232 and GPIO ports for integration with control and automation systems
- Two local RJ‑45 ports for network switching, control, and VLAN configuration, extendable to remote RX devices
- Dedicated Dante RJ‑45 port supporting PCM Dante audio output
- TAA Compliant
Product Overview
The TeamUp+ Series Dual Screen USB3 Collaboration Extender / Switcher is purpose‑built forprofessional BYOM (Bring Your Own Meeting) environments that demand flexible sourceswitching, dual‑display support, and reliable long‑distance extension of high‑bandwidthsignals. By combining HDBaseT 3.0 transport, USB 3.2 Gen 1 extension, and advancedUSB‑C capabilities into a single platform, it enables clean, consistent collaborationexperiences across larger AV spaces.
Designed to accommodate modern USB‑C laptops and traditional HDMI/USB‑B sources,the system supports dual‑screen workflows through a combination of DisplayPort MST andDisplayLink technologies. This allows users to connect a single USB‑C cable and extendtwo independent displays, along with USB data, network access, and device charging—idealfor executive boardrooms, training rooms, and flexible conference spaces. Automatic USB3host switching ensures that conference cameras, microphones, and other peripherals followthe active presenter without user intervention.
For integrators and IT teams, the platform provides extensive control and integration options,including Web UI configuration, API control, TCP/IP and RS‑232 interfaces, and GPIO forautomation scenarios. Built‑in audio de‑embedding, a dedicated balanced audio output, andnative Dante audio support allow the system to integrate seamlessly with external amplifiers,powered speakers, and networked audio infrastructures. When deployed with recommendedHDBaseT 3.0 cabling, the TeamUp+ Dual Screen Collaboration Extender / Switcher delivers arobust, scalable BYOM solution tailored for enterprise, education, and governmentinstallations.
Applications
- Purpose‑built solutions for large AV and conference spaces
- USB‑C extension and dual‑screen collaboration
- HDBaseT 3.0 long‑distance signal transport
- Audio de‑embedding to external amplifiers or active speakers
- Dante‑enabled network audio systems
- TCP/IP and RS‑232 control via Arranger or third‑party control systems
